Hifonics A1200.1D Alpha Mono Car Subwoofer Amplifier

The Hifonics A1200.1D Alpha is a mono car audio amplifier designed to power a subwoofer system with controlled low-frequency output. Its single-channel configuration makes it a focused choice for adding bass without using a multi-channel amplifier. It is intended for universal vehicle installation when paired with compatible wiring, a source signal, and a properly matched subwoofer load.

This amplifier is suited to listeners building or upgrading a dedicated bass section in a car audio system. It provides rated output of 325 watts at 4 ohms, 600 watts at 2 ohms, and 1,200 watts at 1 ohm. The adjustable low-pass crossover, subsonic filter, bass EQ, and phase control give the installer useful tools for integrating a subwoofer with existing speakers.

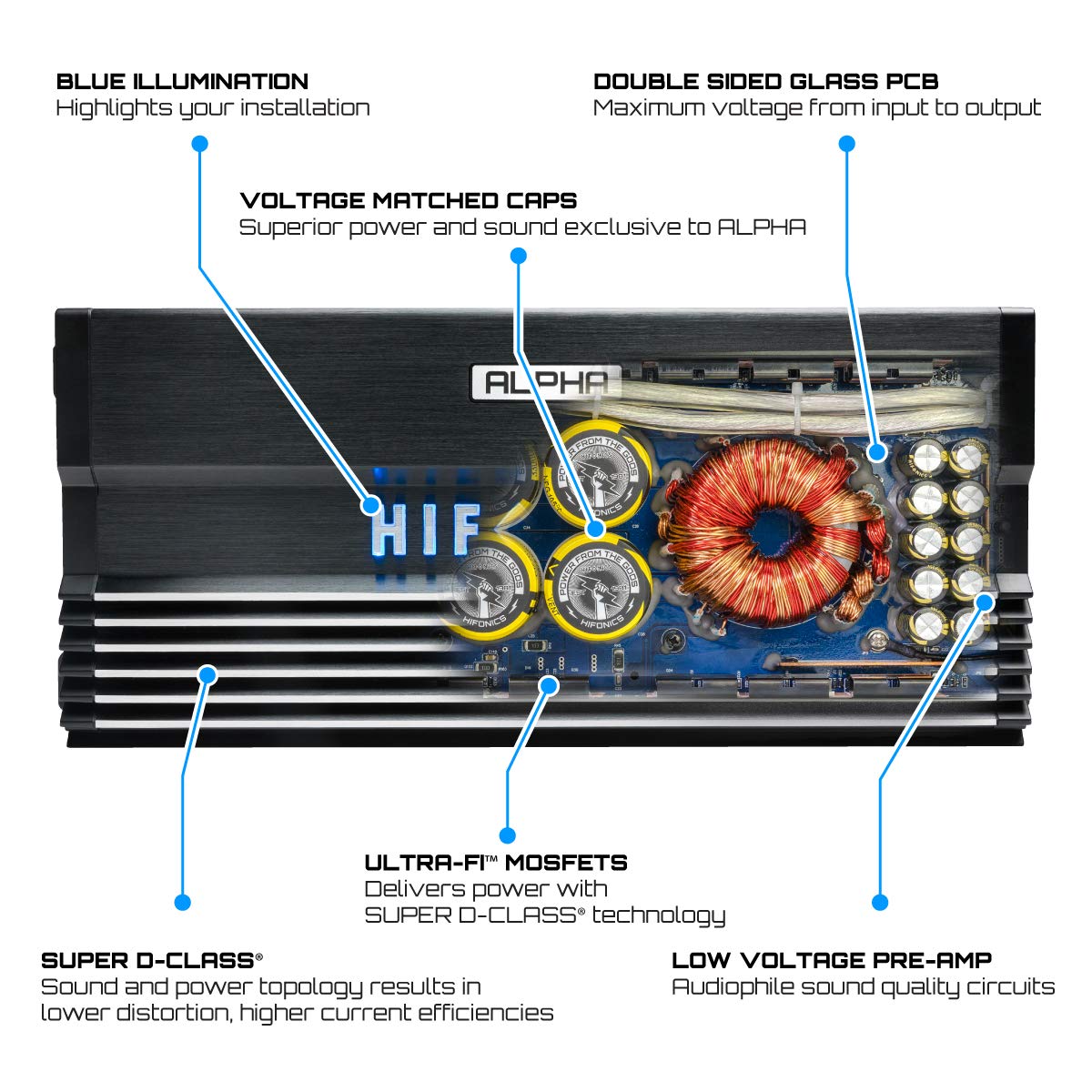

The A1200.1D uses Hifonics Super D-Class circuitry and Ultra-Fi MOSFET output devices. This design is paired with a pulse-width-modulated Twin Turbo Coil power supply and a heavy-duty aluminum alloy heat sink. Together, these elements are intended to support efficient high-current bass amplification while managing operating heat.

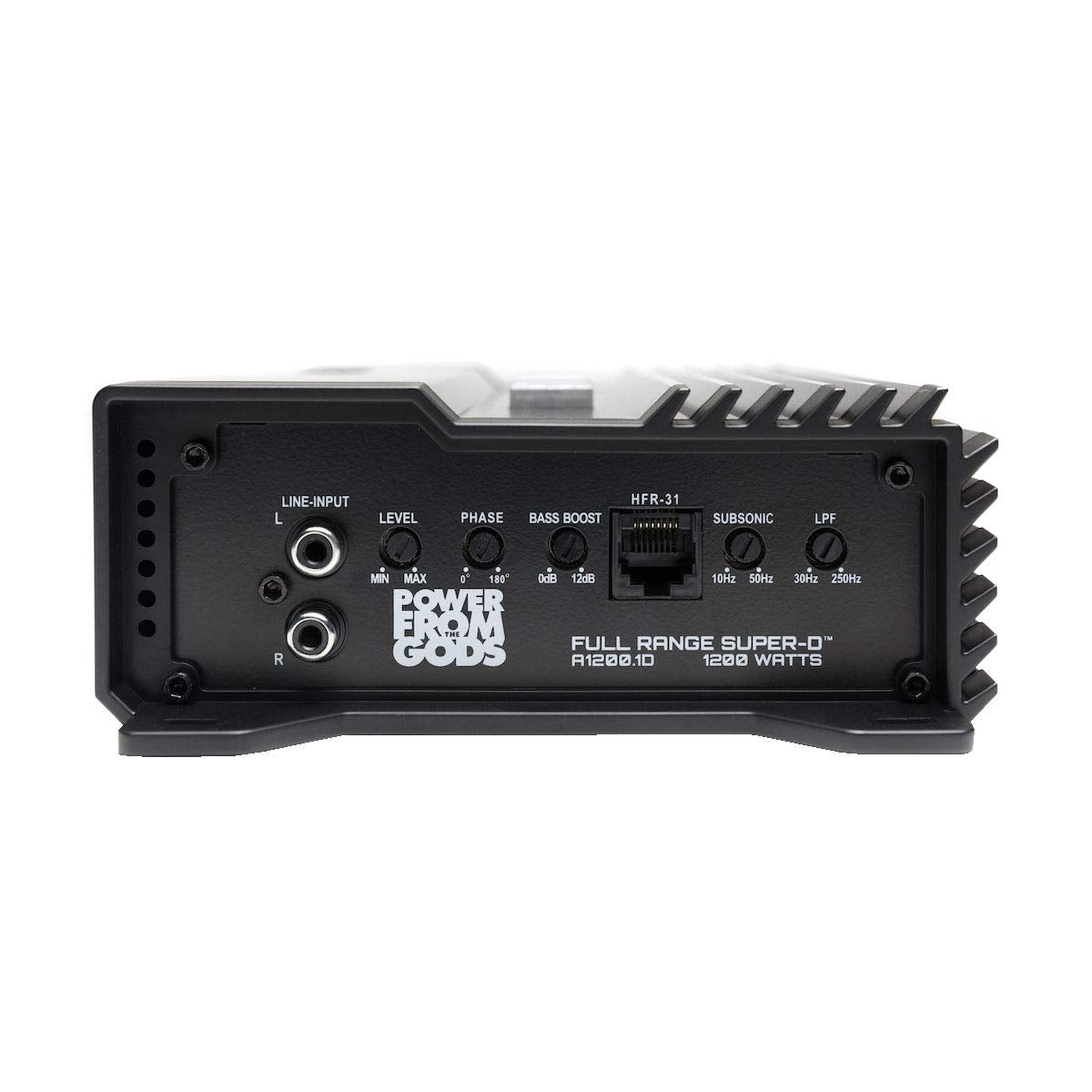

For tuning, the amplifier includes a variable 30-250 Hz low-pass crossover and a 10-50 Hz subsonic filter. Bass boost is adjustable from 0 to 12 dB at 45 Hz, while variable phase adjustment spans 0 to 180 degrees. A wired HFR-31 bass remote is included for convenient adjustment from the vehicle cabin.

The A1200.1D can accept speaker-level input signals and includes DC-offset auto turn-on through its high-level inputs. Its 0.2-6V input sensitivity range supports integration with a range of source units. With mono-only operation and 1-ohm stability, it fits systems planned around a single subwoofer or a compatible multi-subwoofer wiring configuration.

Key Features

• Mono Subwoofer Amplifier: Dedicated single-channel design for a bass-focused vehicle audio system.
• 1-Ohm Stable Output: Delivers up to 1,200 watts into a compatible 1-ohm load.
• Adjustable Crossovers: Low-pass and subsonic filters help tailor the subwoofer frequency range.
• Wired Bass Remote: Included HFR-31 remote provides accessible bass-level adjustment from the cabin.
• DC-Offset Auto Turn-On: Can switch on through compatible high-level input signals without a remote wire.
• Aluminum Alloy Heat Sink: Helps transfer heat away from the amplifier's output devices.

Design & Installation

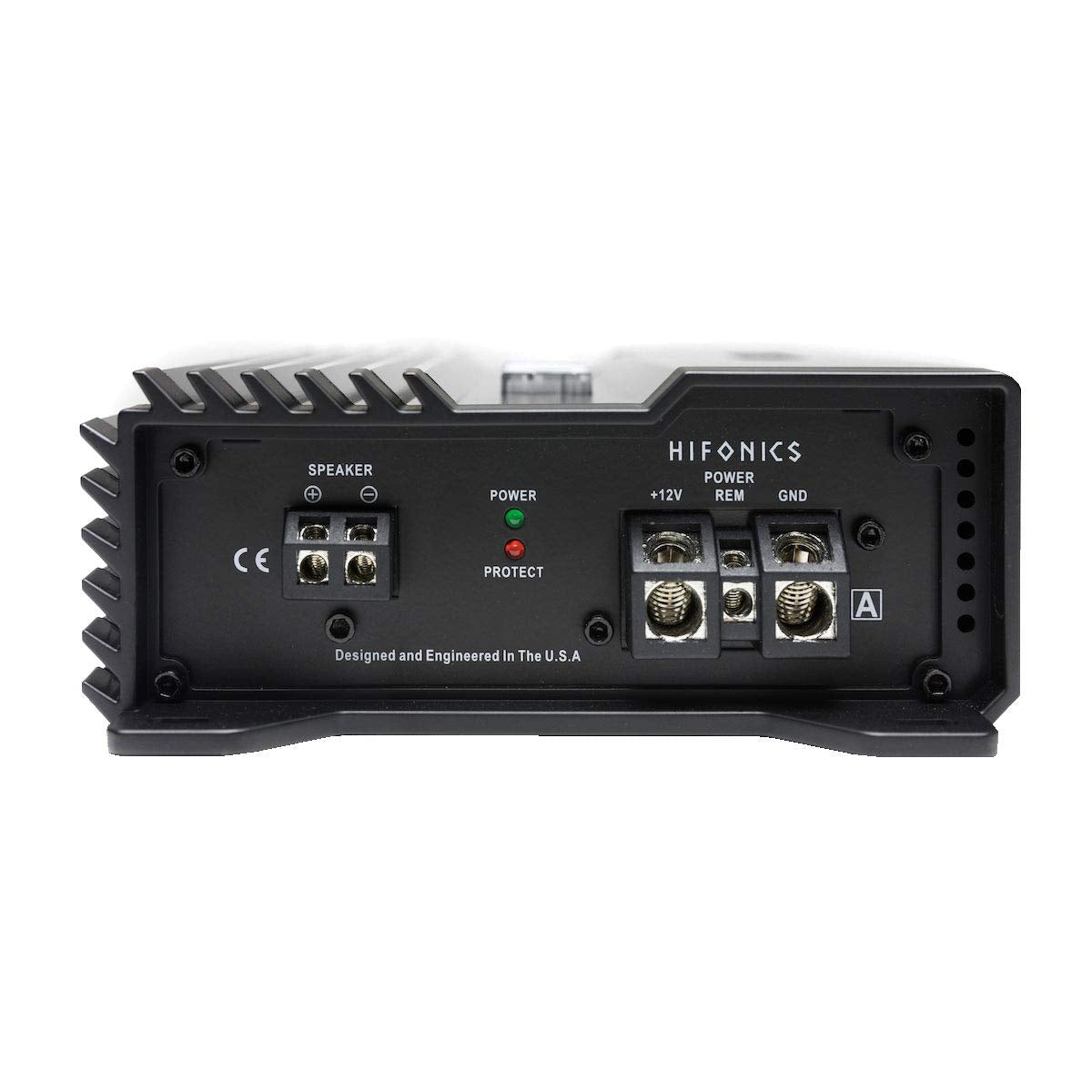

The A1200.1D features a heavy-duty aluminum alloy heat sink, nickel-plated high-temperature connections, and hex-screw terminals. Its angled connection layout is designed to make power, ground, and speaker wiring easier to access. LED diagnostic circuitry provides illuminated indication for overload and speaker-short protection conditions.

Use the amplifier only with a subwoofer system wired within its supported impedance range, with 1 ohm as the minimum stated load. The power and ground terminals accept 4 AWG cable, the speaker terminals accept 14 AWG cable, and an external fuse is required. Set gain, crossover, subsonic filter, bass boost, and phase after installation to match the source unit, enclosure, and connected subwoofer system.
