VOXX PRESTIGE APS901TM 1-Way Long-Range Remote Start System
- Up to 1,500-foot operating range
- Two included one-button transmitters
- Selectable 5- to 60-minute runtime
- Glass-mount antenna with LED
- ADS and DBI protocol support
Dealer pricing
Sign in to see your tier price and build a quote.
Product Info
| Brand | VOXX |
|---|---|
| Model / SKU | APS901TM |
| UPC | 044476139888 |
| Availability | In stock and ready to quote |
The Prestige APS901TM is a 1-way vehicle remote start system designed to let drivers start a compatible vehicle from a distance. Its stated operating range is up to 1,500 feet, helping make cold-weather warm-ups and hot-weather cabin cooling more convenient. The system uses compact one-button transmitters for straightforward remote-start control.
This system is suited to drivers who park in apartments, townhome communities, driveways, or other locations where extra remote range is useful. It is a remote-start-focused solution rather than an audio component or multimedia receiver. Remote unlock functionality is available while the vehicle is running by remote start.
The APS901TM is designed around configurable starting behavior for varied vehicle applications. Installers can select remote-start run time, start-button press count, engine-confirmation method, crank duration behavior, and parking-light operation. Diesel pre-start delay settings are also available for applicable vehicles.
A glass-mount antenna assembly combines the RF antenna, status LED, and valet/programming switch. The system supports ADS and DBI data-port protocols, allowing integration with compatible vehicle-interface hardware. FlashLogic FLCART compatibility can help support vehicle data, immobilizer, and door-lock integration where applicable.
The APS901TM can serve as the foundation of a professionally installed remote-start upgrade. Its telematics port supports compatibility with a connected interface such as CarLink for expanded smartphone or tablet control when paired with compatible equipment. Vehicle-specific wiring, interfaces, and feature availability depend on the application and installation design.
Key Features
- Up To 1,500-Foot Range: Extends remote-start operation beyond typical short-range systems.

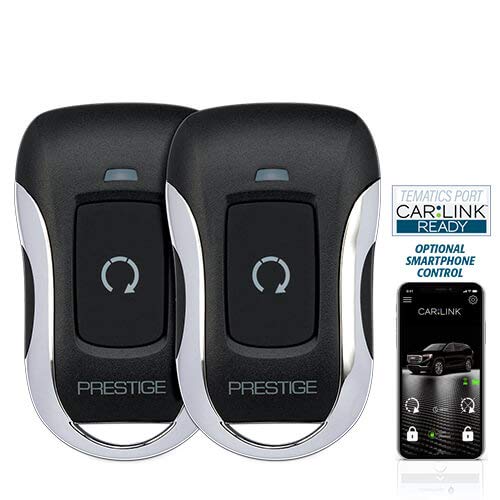

- Two 1-Way Transmitters: Includes two simple one-button remote controls.
- Selectable Run Time: Allows installers to configure remote-start duration.
- Glass-Mount Antenna Kit: Combines antenna, LED, and valet switch.
- ADS And DBI Support: Works with compatible data-integration protocol hardware.
- CarLink-Ready Telematics Port: Supports optional connected-control expansion.
Design & Installation
The APS901TM uses a control module with dedicated high-current remote-start wiring, notification wiring, and input/output connections. Its supplied windshield-mounted antenna assembly incorporates the RF receiver, status LED, and programming control in one component. The included remotes use CR2032 batteries and feature a single-button layout.
Professional installation is strongly recommended because integration requires vehicle-specific power, ignition, starter, brake, hood, tach, parking-light, and data-bus considerations. The antenna should be mounted on a clear windshield area that does not obstruct the driver's view or interfere with airbag deployment. Avoid metallic window film around the antenna location, as it can reduce operating range. A compatible vehicle interface or immobilizer-bypass solution may be required depending on the vehicle.
| Model Number | APS901TM |
|---|---|
| UPC | 044476139888 |
| Product Type | Vehicle remote start system |
| Remote Start Communication | 1-way |
| Maximum Operating Range | Up to 1,500 ft |
| Included Transmitters | 2 |
| Transmitter Type | One-button 1-way |
| Remote Control Model | 181BP |
| Remote Battery Type | CR2032 |
| Remote Battery Life | Approximately 1 year under normal use |
| Maximum Remote Controls Stored | 4 |
| Remote Programming | One-button auto programming |
| Programmed Transmitter Notification | Yes |
| Remote Start Activation | Selectable one-, two-, or three-press activation |
| Default Remote Start Activation | Two presses |
| Selectable Remote Start Runtime | 5, 10, 15, 20, 45, or 60 minutes |
| Remote Start Shutdown | Remote command or brake-pedal activation |
| Remote Start Service Mode | Yes |
| Engine Confirmation Methods | Tach, voltage, data, or hybrid |
| Voltage Start-Sensing Levels | Greater than or less than 0.5 V before start |
| Maximum Crank Time | Selectable from 0.8 to 4 seconds |
| Crank Duration Modes | Averaging or preset |
| Diesel Pre-Start Delay | Selectable |
| Remote Start Parking Light Modes | Steady or flashing |
| Remote Start Notification | Selectable on or off |
| Ignition 2 Output Modes | Ignition, accessory, or start |
| Accessory Output Modes | Accessory, ignition, or start |
| Factory Disarm Output Timing | 1 second, 350 ms, 500 ms, 800 ms, or door-lock timing |
| Pulse-During-Crank Output Modes | Crank, ground-when-running, ignition, or accessory |
| Factory Arm Output Modes | After-start, ground-when-running, ignition, accessory, or start |
| Pulse-After-Shutdown Output Modes | After-shutdown, ground-when-running, ignition, accessory, or start |
| Remote Unlock | Available while vehicle is remote started |
| Antenna Type | Glass-mount long-range antenna |
| Antenna Connector | 6-pin |
| Antenna Assembly | Built-in LED light and valet switch |
| Data Bus Interface Port | 4-pin |
| Data Bus Protocols | ADS and DBI |
| Default Data Port Protocol | ADS (iDatalink 2-Way) |
| FlashLogic Compatibility | FLCART compatible |
| Weblink Programming Port | 4-pin |
| Telematics Port | 4-pin |
| Telematics Compatibility | CarLink-ready |
| High-Current Power Connector | 6-pin |
| Notification Connector | 4-pin |
| Input/Output Connector | 14-pin |
| System Power Input | 12 V positive |
| Starter Output | 12 V positive |
| Primary Ignition Output | 12 V positive |
| Secondary Ignition Output | 12 V positive |
| Accessory Output | 12 V positive |
| Parking Light Output | Selectable 12 V positive or ground negative |
| Hood Safety Input | Ground negative |
| Brake Safety Input | 12 V positive |
| Tach Input | Green/orange wire |
| Diesel Glow Plug Input | 12 V positive |
| External Start Input | Ground negative |
| Remote Start Status Output | Ground negative |
| Horn Output | Ground negative |
| Warranty | Limited lifetime warranty |
| Transmitter Warranty | 12 months from original purchase |
| FCC Compliance | FCC Part 15 |
| Industry Canada Compliance | RSS-210 |
Is the APS901TM a two-way remote start system?
No. The APS901TM is a 1-way remote start system. Its included remotes are one-button 1-way transmitters.
What is included with the system?
The system includes two one-button remote controls and a long-range antenna kit. The antenna assembly includes a built-in LED light and valet switch.
Can this system unlock my doors?
Remote unlock is available while the vehicle is running via remote start. Door-lock integration and behavior depend on the vehicle and installation.
Will it work with my vehicle's factory immobilizer?
Compatibility is vehicle-specific. The system supports FlashLogic FLCART and data-bus integration, but compatible interface hardware may be needed.
Can I control it from a smartphone?
The APS901TM has a telematics port and is CarLink-ready. Smartphone or tablet control requires a compatible connected interface and supported vehicle functions.
Should this be professionally installed?
Yes. Prestige strongly recommends professional installation. The installation involves vehicle electrical, ignition, safety, and data-system connections.
