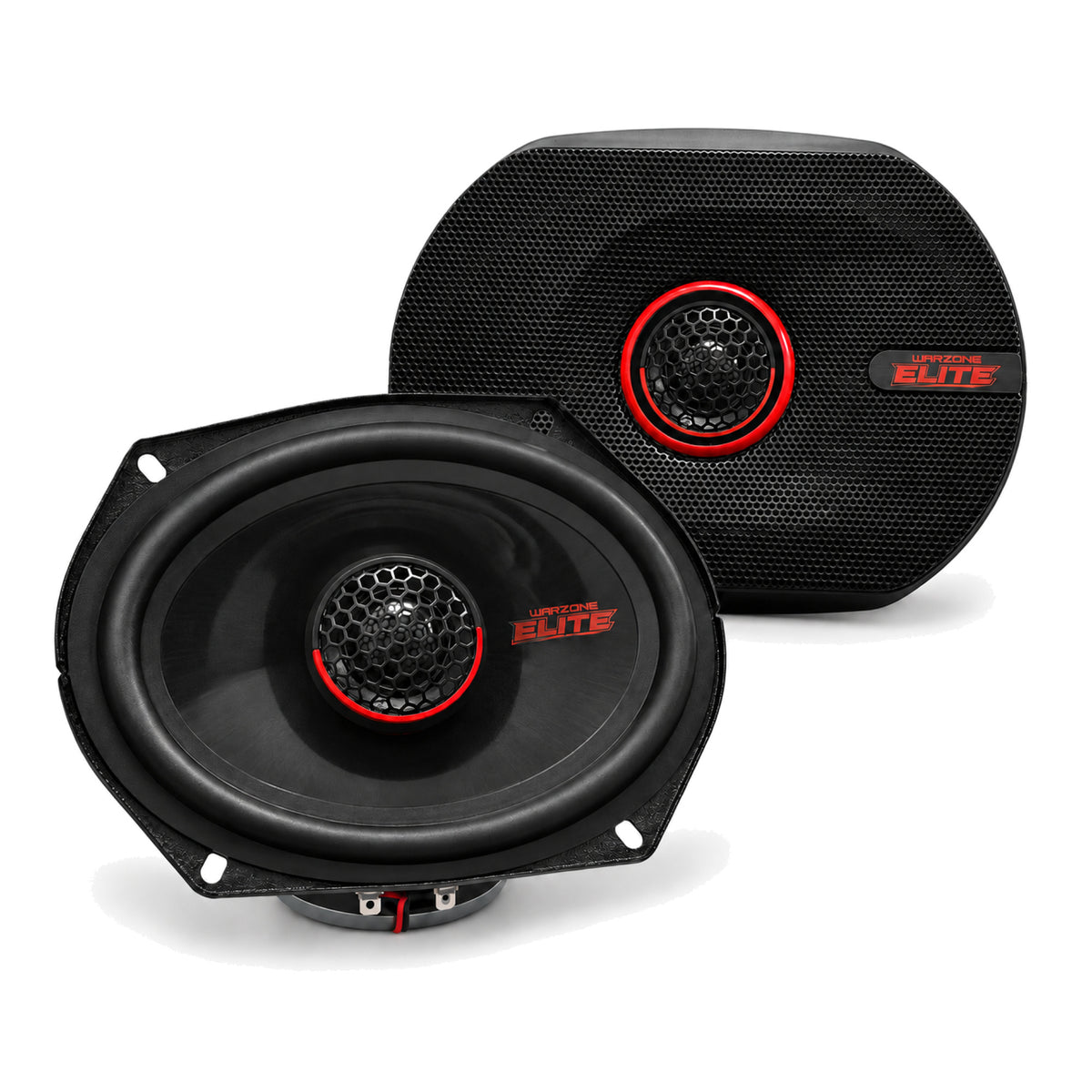

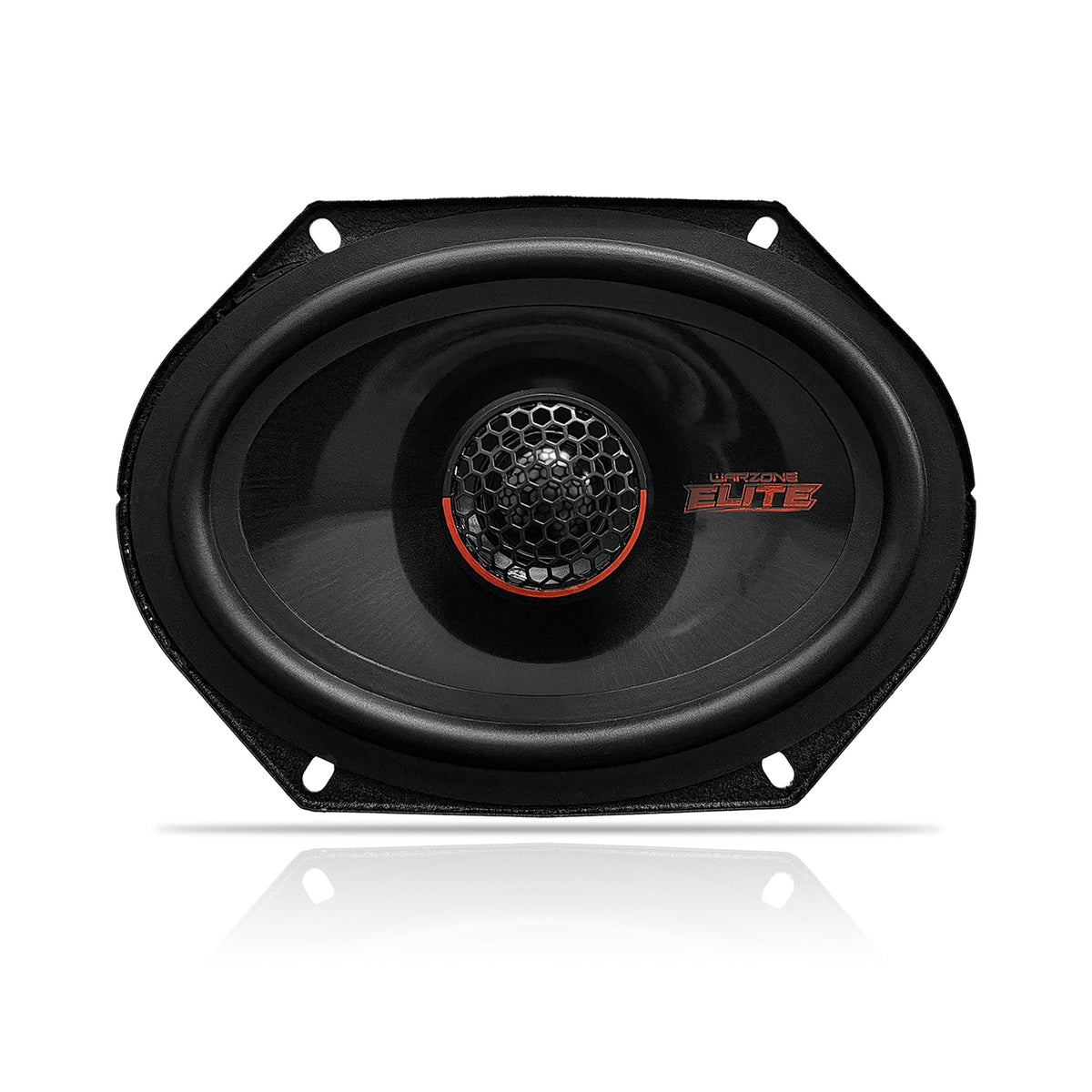

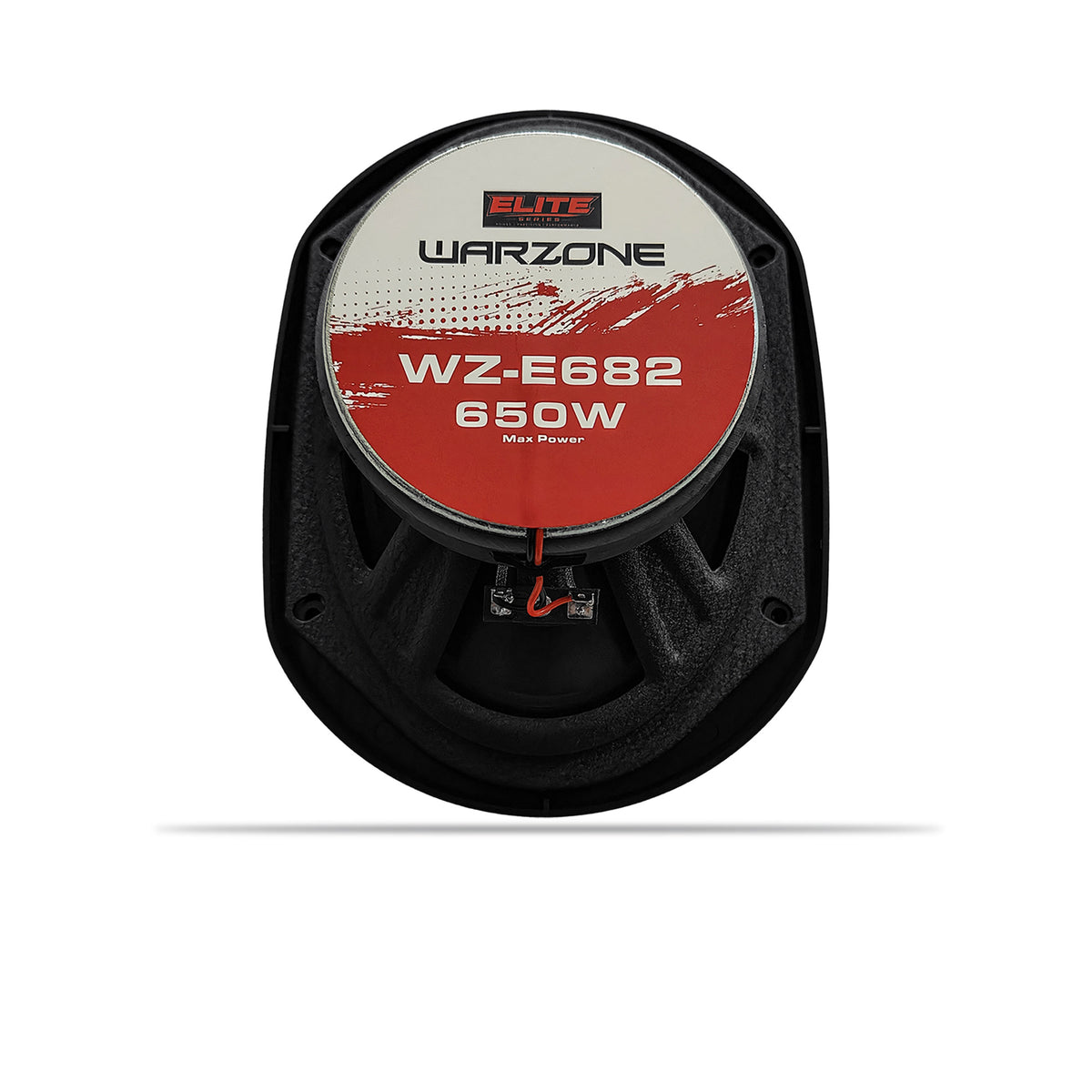

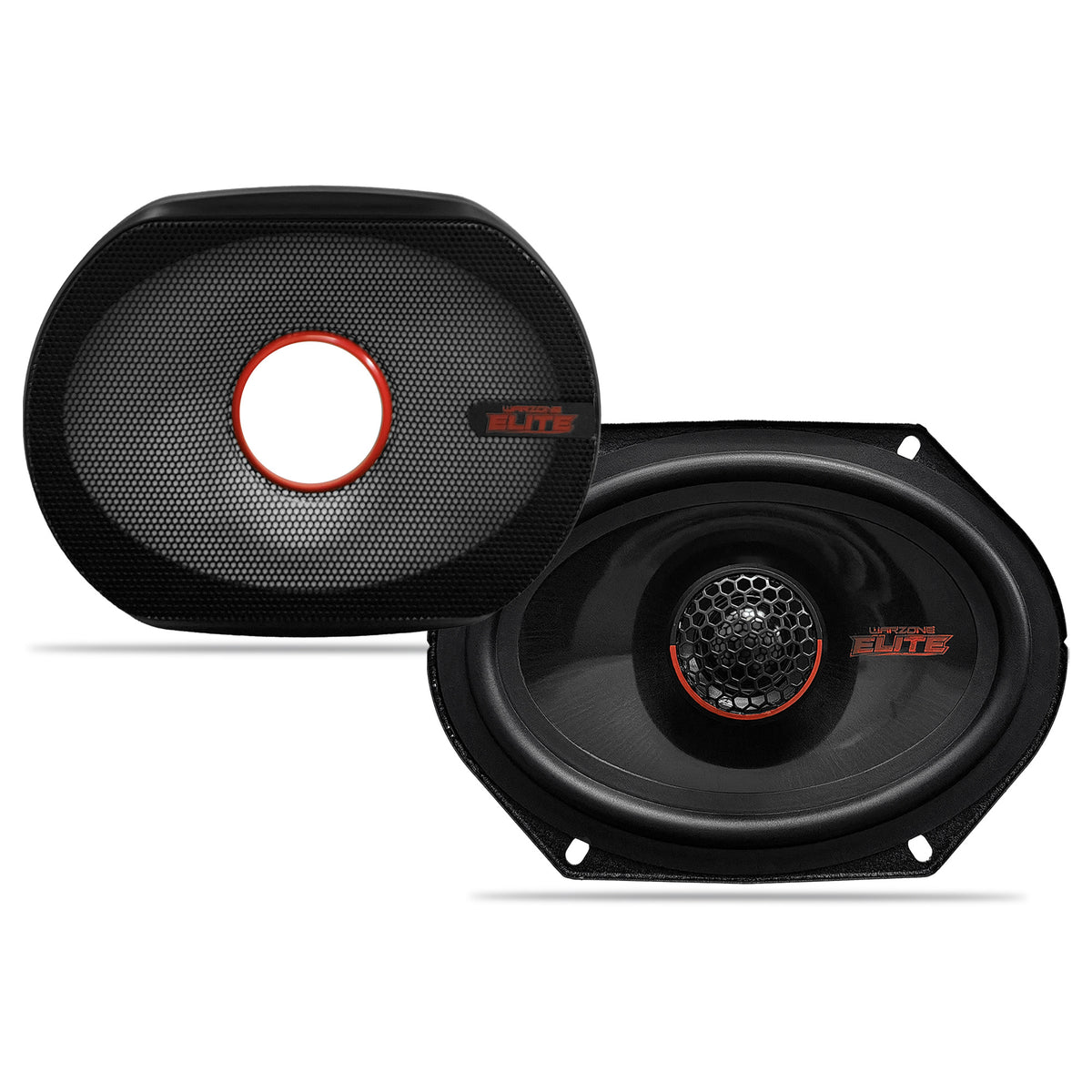

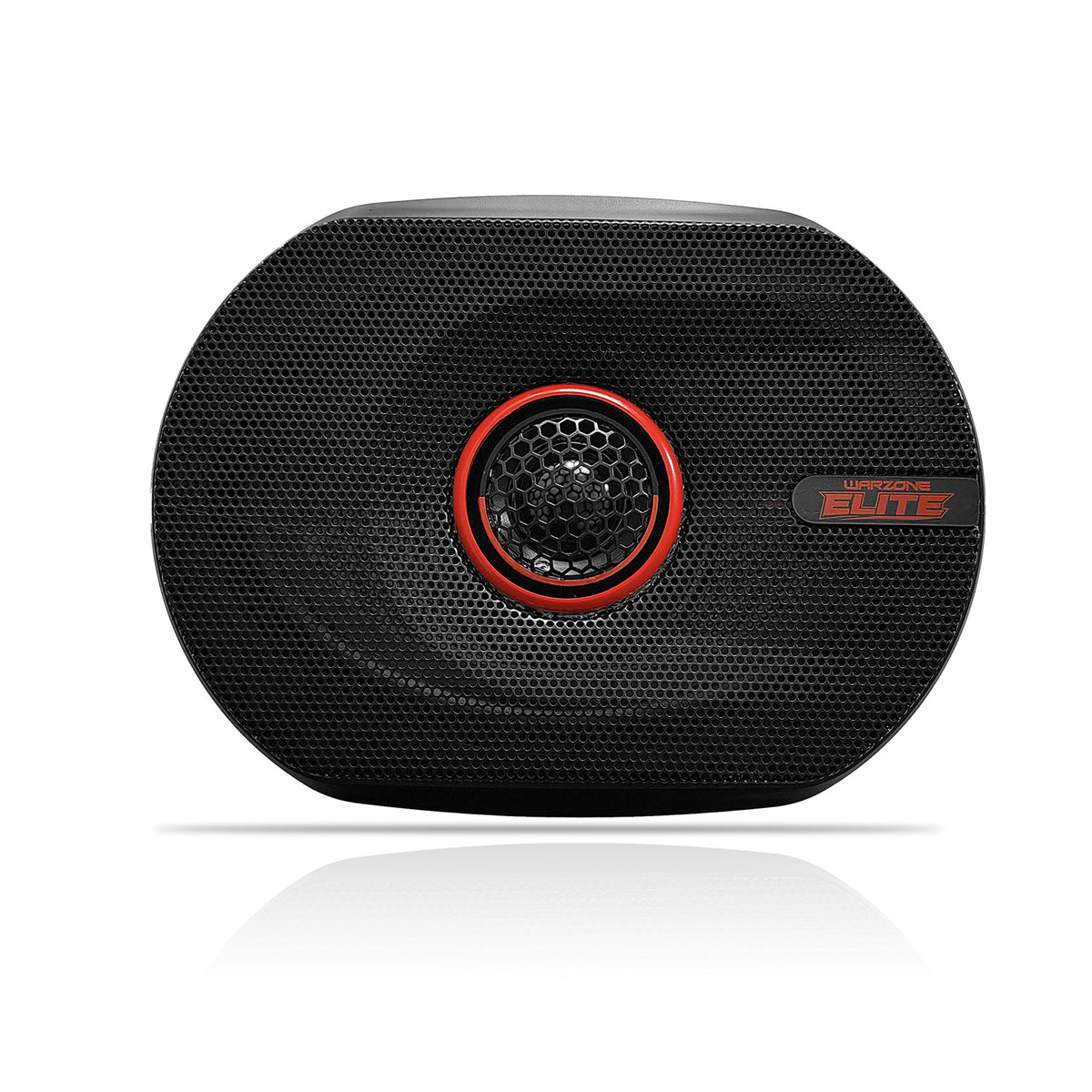

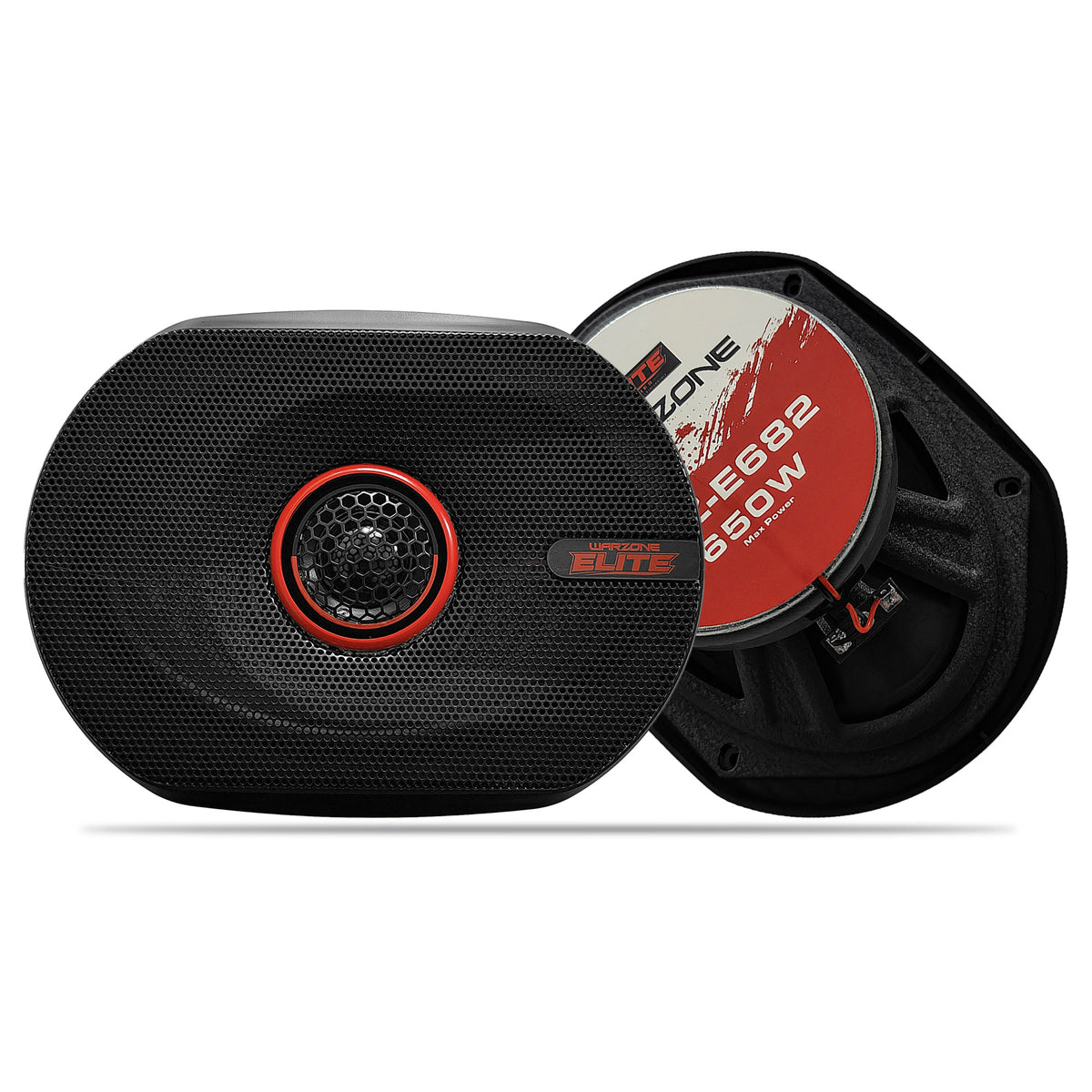

Warzone WZ-E682 Elite Series 6x8" Coaxial Speakers

The Warzone WZ-E682 Elite Series is a pair of 6 x 8-inch coaxial car speakers designed to replace compatible factory door or rear-deck speakers. Each speaker combines a woofer and integrated tweeter in one compact assembly, simplifying a full-range speaker upgrade. This makes the set suitable for vehicles with 6 x 8-inch speaker locations that need clearer, more capable everyday playback.

With a 325-watt RMS rating per pair and 4-ohm impedance, the WZ-E682 is intended for systems that need more power handling than many original-equipment speakers. The pair is rated for 650 watts maximum, or 162.5 watts RMS per speaker. Matching the speakers with an appropriately powered amplifier or compatible head unit helps support controlled performance.

The woofer section uses a 1.2-inch voice coil and a 20-ounce ferrite magnet. Its specified 52 Hz to 20 kHz frequency response and 91 dB sensitivity support broad full-range reproduction for music, podcasts, and daily driving. A 65 Hz resonant frequency helps define its low-frequency operating characteristics in a door or rear-deck installation.

For upper-frequency detail, each WZ-E682 includes a 2-inch PEI dome tweeter. The tweeter is specified from 1,000 Hz to 20 kHz with 94 dB sensitivity, while the 5 kHz crossover point divides high-frequency duties between the woofer and tweeter. This coaxial arrangement keeps the speaker package compact while adding dedicated high-frequency reproduction.

The WZ-E682 can serve as a direct-size upgrade where vehicle clearance and mounting dimensions are compatible. It works well as part of a front-door, rear-door, or rear-deck speaker refresh, whether replacing worn factory speakers or building a system around an aftermarket amplifier. Two speakers and two protective grilles are included in the package.

Key Features

• 6 x 8-Inch Coaxial Design: Combines woofer and tweeter functions in each speaker.
• 325W RMS Per Pair: Supports systems requiring substantial continuous power handling.
• 4-Ohm Impedance: Matches many common aftermarket car-audio amplifier configurations.
• 2-Inch PEI Dome Tweeter: Handles upper-frequency detail within the coaxial assembly.
• 5 kHz Crossover: Separates woofer and tweeter frequency duties.
• Included Protective Grilles: Adds speaker protection for suitable exposed installations.

Design & Installation

The WZ-E682 uses a 6 x 8-inch woofer platform with an integrated 2-inch PEI dome tweeter, a 1.2-inch woofer voice coil, and a 20-ounce ferrite magnet. This full-range coaxial layout places the high-frequency driver over the woofer, allowing both sections to fit within a single speaker location. Protective grilles are included for installations where the speaker face requires coverage.

Confirm the available mounting location before purchase: each speaker requires a 5.12 x 7.31-inch cutout and 2.64 inches of mounting depth. The listed overall frame dimensions are 5.79 x 8.03 inches, with a 3.71-inch height. Use vehicle-specific brackets, wiring adapters, or hardware when required, and match amplifier output appropriately to the 4-ohm, 162.5-watt RMS-per-speaker rating.
