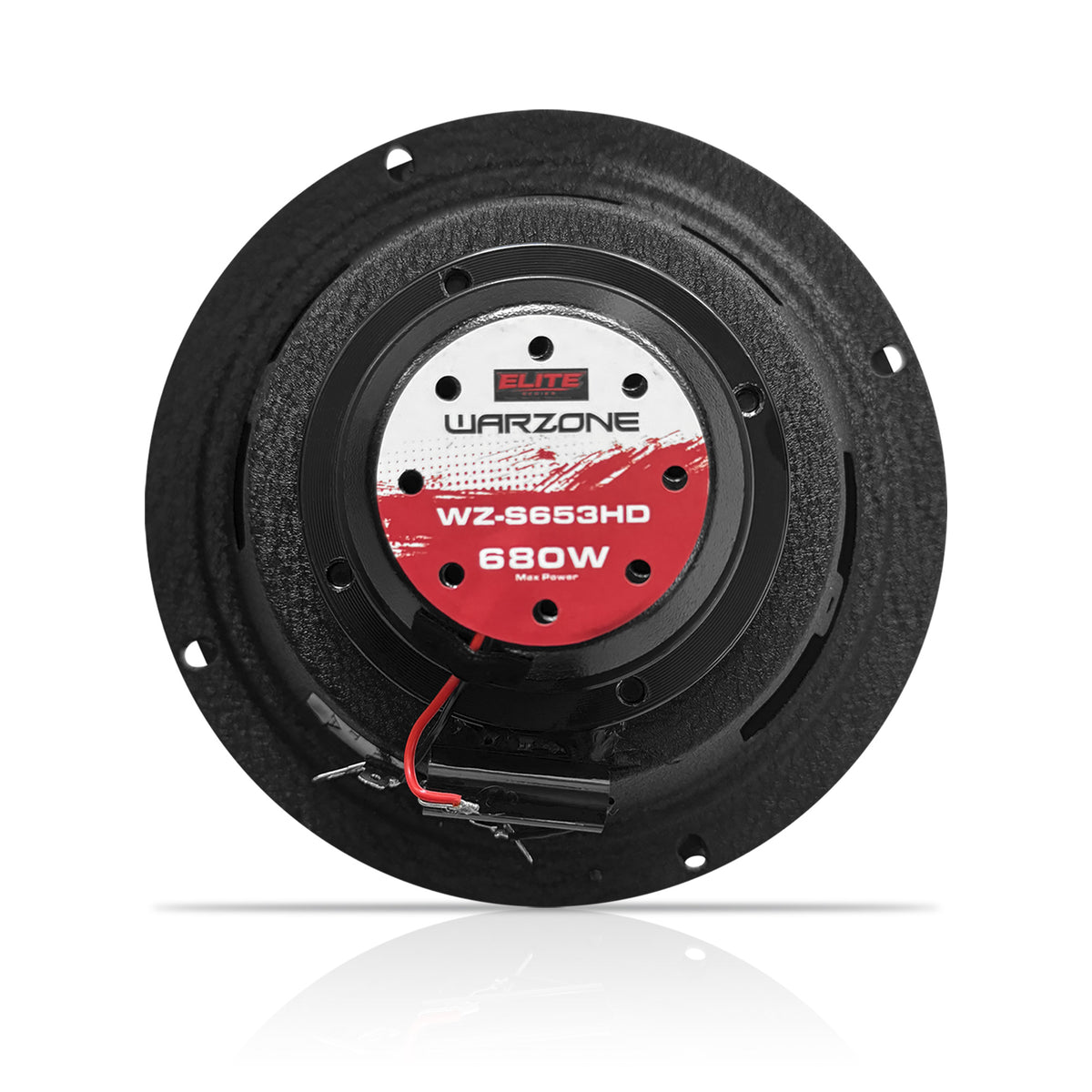

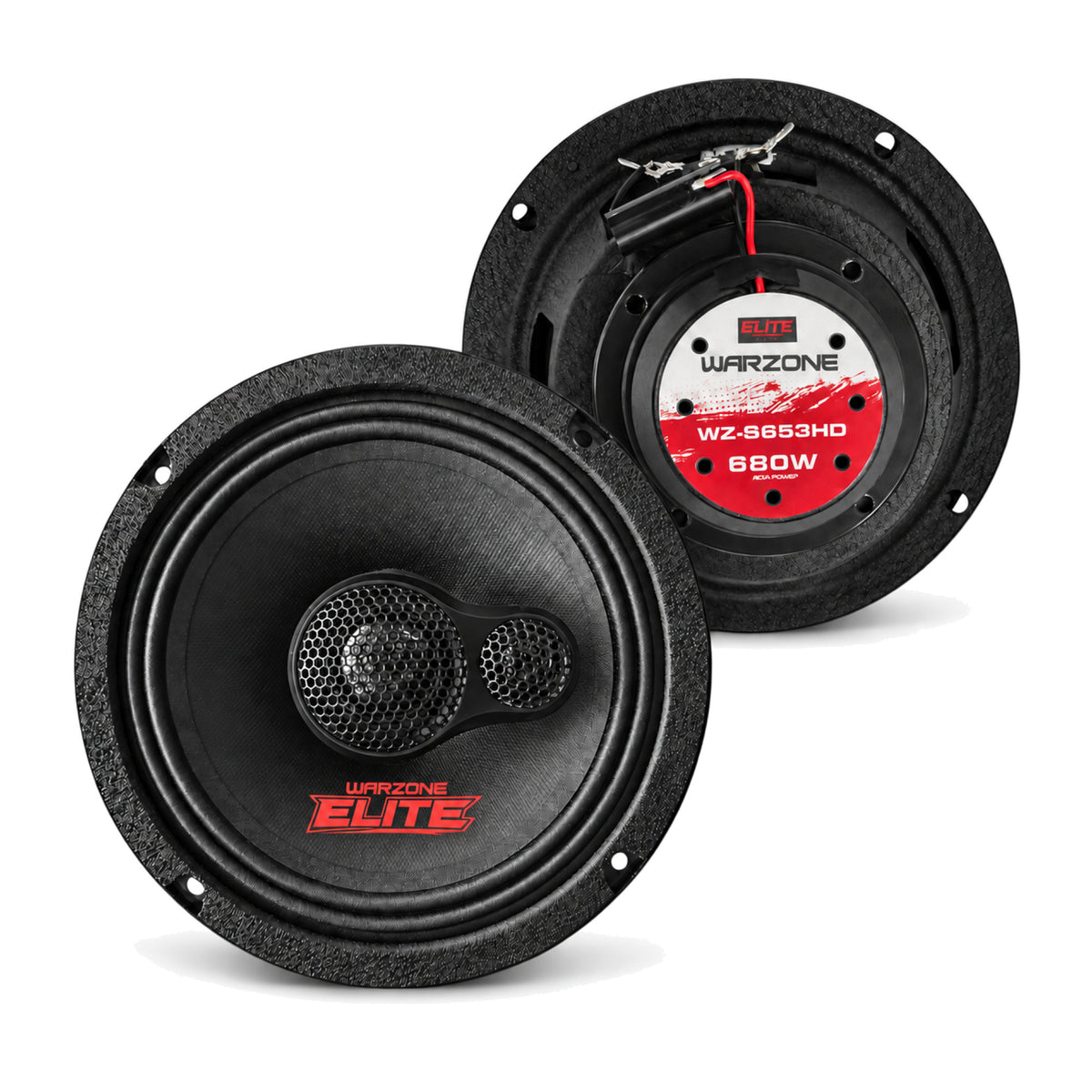

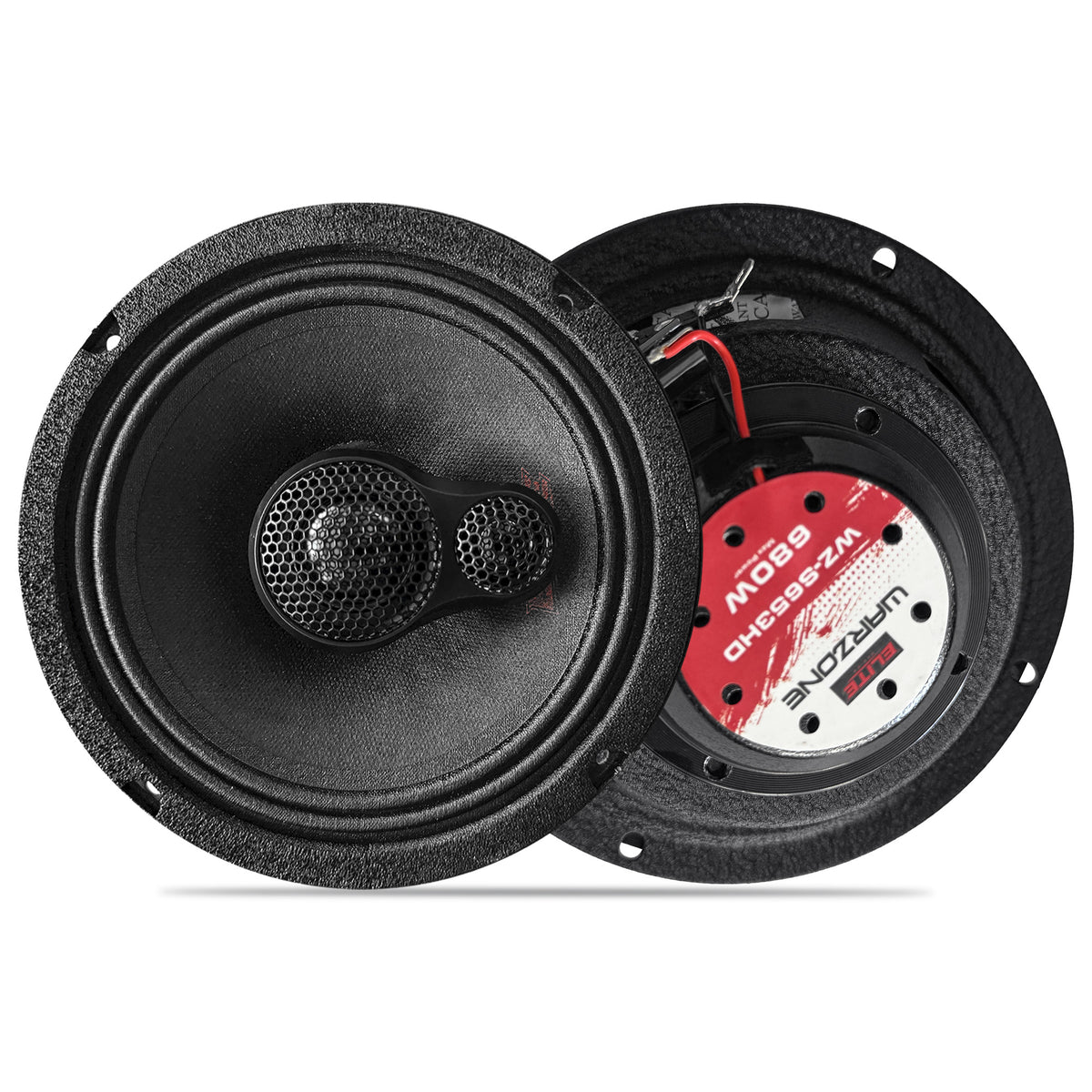

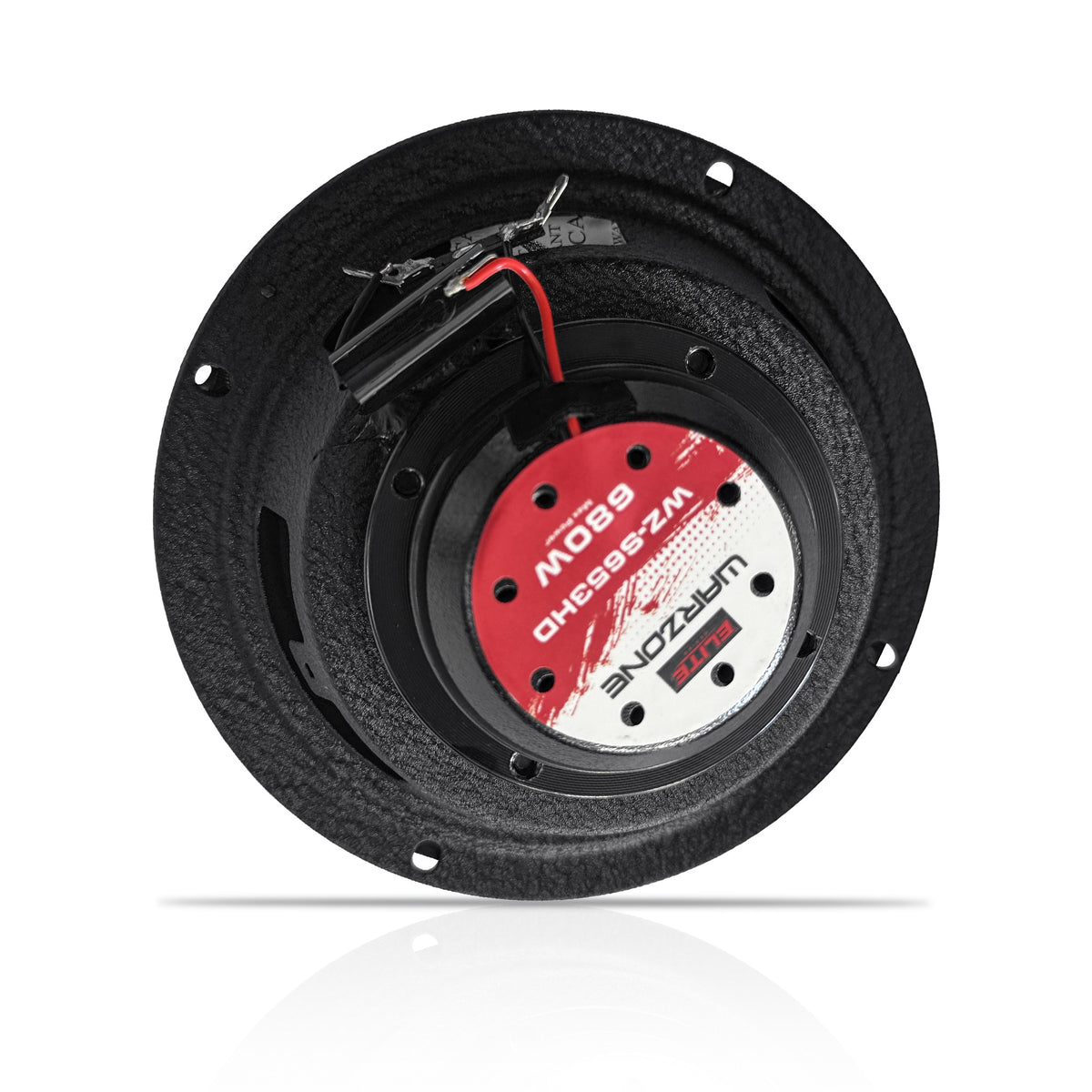

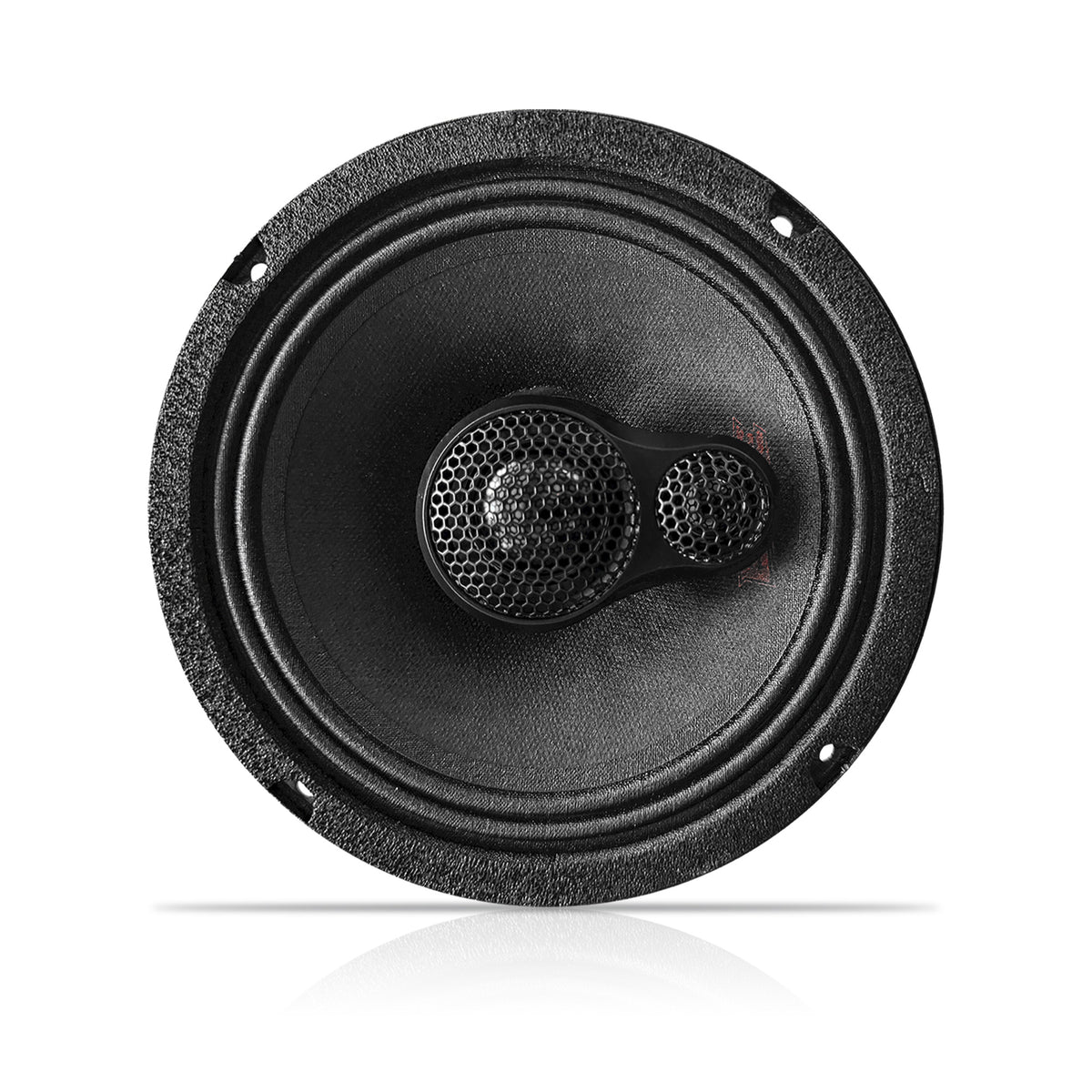

Warzone WZ-S653HD 6.5-Inch Harley-Davidson Motorcycle Speakers with Super Tweeter, 680W Max, 4 Ohm Neodymium Coaxial Pair, 2014-Up Fairing & Saddlebag Direct Fit
- 6.5-inch 3-way coaxial speaker pair
- 340W RMS total power handling
- 95 dB overall sensitivity rating
- 2.36-inch shallow mounting depth
- Includes two speakers and grilles
Product Info
| Brand | WARZONE |
|---|---|
| Model / SKU | WZ-S653HD |
| UPC | 783501186977 |
| Availability | In stock and ready to quote |
The Warzone WZ-S653HD Elite Series motorcycle speakers are 6.5-inch two-way coaxial replacements engineered for 2014 and newer Harley-Davidson factory fairing and saddlebag lid speaker locations. Their direct-fit design uses a 5.69-inch cutout, 6.61-inch overall diameter, and shallow 2.36-inch mounting depth to suit factory speaker cavities without adapter rings. Built for clear sound in open-road conditions, this pair combines a 6.5-inch coaxial driver with a 2-inch PEI dome tweeter and integrated super tweeter. The 6 kHz crossover and 1,000 Hz to 20 kHz frequency response help retain clear vocals and detailed highs above wind and exhaust noise. NdFeB neodymium magnet motors and oversized 1.5-inch voice coils support responsive output, while 95 dB sensitivity helps compatible factory radios produce strong sound. Rated at 680 watts maximum and 340 watts RMS per pair at 4 ohms, the WZ-S653HD speakers can also be paired with an appropriate motorcycle amplifier. Dust-intrusion-resistant, UV-resistant, and humidity-resistant cone, surround, and tweeter materials are suited to exposure from rain, sunlight, and routine washdowns. Includes two speakers and protective grilles.
- DIRECT-FIT - Designed for 2014 and newer Harley-Davidson motorcycles, these 6.5-inch Elite Series speakers install in factory fairing and saddlebag lid locations without adapter rings, simplifying an upgraded audio installation.
- POWERFUL - Rated for 680 watts maximum and 340 watts RMS per pair at 4 ohms, the efficient 95 dB sensitivity helps produce strong, clear sound from compatible factory radios or an added motorcycle amplifier.
- CLARITY - A 2-inch PEI dome tweeter and integrated secondary super tweeter complement the 6.5-inch coaxial design, using a 6 kHz crossover to retain vocal definition and crisp high frequencies over road, wind, and exhaust noise.
- COMPACT - High-strength NdFeB neodymium magnet motors and oversized 1.5-inch voice coils support responsive performance in a shallow 2.36-inch mounting depth, suited to space-limited factory motorcycle speaker cavities.
- WEATHER-READY - The cone, surround, and tweeter materials resist dust intrusion, UV exposure, and humidity to support consistent use through rain, sunlight, and routine washdowns encountered during motorcycle riding.
- COMPLETE - Sold as a matched pair with protective grilles; each speaker measures 6.61 inches overall diameter by 2.6 inches high and uses a 5.69-inch cutout for confident fitment planning before installation.
| Brand | Warzone |
|---|---|
| Model | WZ-S653HD |
| UPC | 783501186977 |
| Speaker Type | Coaxial car speakers |
| Speaker Configuration | 3-way |
| Nominal Speaker Size | 6.5 inches |
| Package Quantity | Pair |
| Maximum Power Handling | 680W total |
| RMS Power | 340W total |
| RMS Power Per Speaker | 170W |
| Impedance | 4 ohms |
| Overall Sensitivity | 95 dB |
| Woofer Size | 6.5 inches |
| Woofer Frequency Response | 106 Hz to 20 kHz |
| Woofer Voice Coil Size | 1.5 inches |
| Woofer Magnet Material | NdFeB neodymium |
| Woofer Magnet Weight | 10 oz |
| Tweeter Size | 2 inches |
| Tweeter Type | Dome tweeter |
| Tweeter Material | PEI |
| Tweeter Frequency Response | 1,000 Hz to 20 kHz |
| Tweeter Sensitivity | 96 dB |
| Crossover Frequency | 6 kHz |
| Mounting Style | Shallow-mount |
| Mounting Depth | 2.36 inches |
| Required Cutout Diameter | 5.69 inches |
| Overall Diameter | 6.61 inches |
| Overall Height | 2.6 inches |
| Included Speakers | 2 |
| Included Grilles | 2 |
This product uses a 6-1/2" speaker size. Pick your vehicle to see the factory locations it fits.
Select your year, make, and model above.
Vehicle not listed? Contact us and we’ll check the fit for you.
Will these fit every 6.5-inch speaker location?
Not necessarily. Confirm a 5.69-inch cutout, 2.36-inch mounting depth, 6.61-inch overall diameter, and 2.6-inch overall height before purchase.
How much power do the speakers handle?
The pair is rated at 340 watts RMS and 680 watts maximum. That equals 170 watts RMS per speaker.
Can I use these with a factory radio?
Their 95 dB sensitivity is intended to work with compatible factory stereos or external amplifiers. Ensure the system is compatible with a 4-ohm speaker load.
Are grilles included?
Yes. The package includes two WZ-S653HD speakers and two protective grilles.
Do these speakers need a separate tweeter crossover?
The speaker design includes a 6 kHz crossover. It works with the built-in 2-inch PEI dome tweeter.
