AB-EQ05

Precision 5-Band Audio Equalization Control

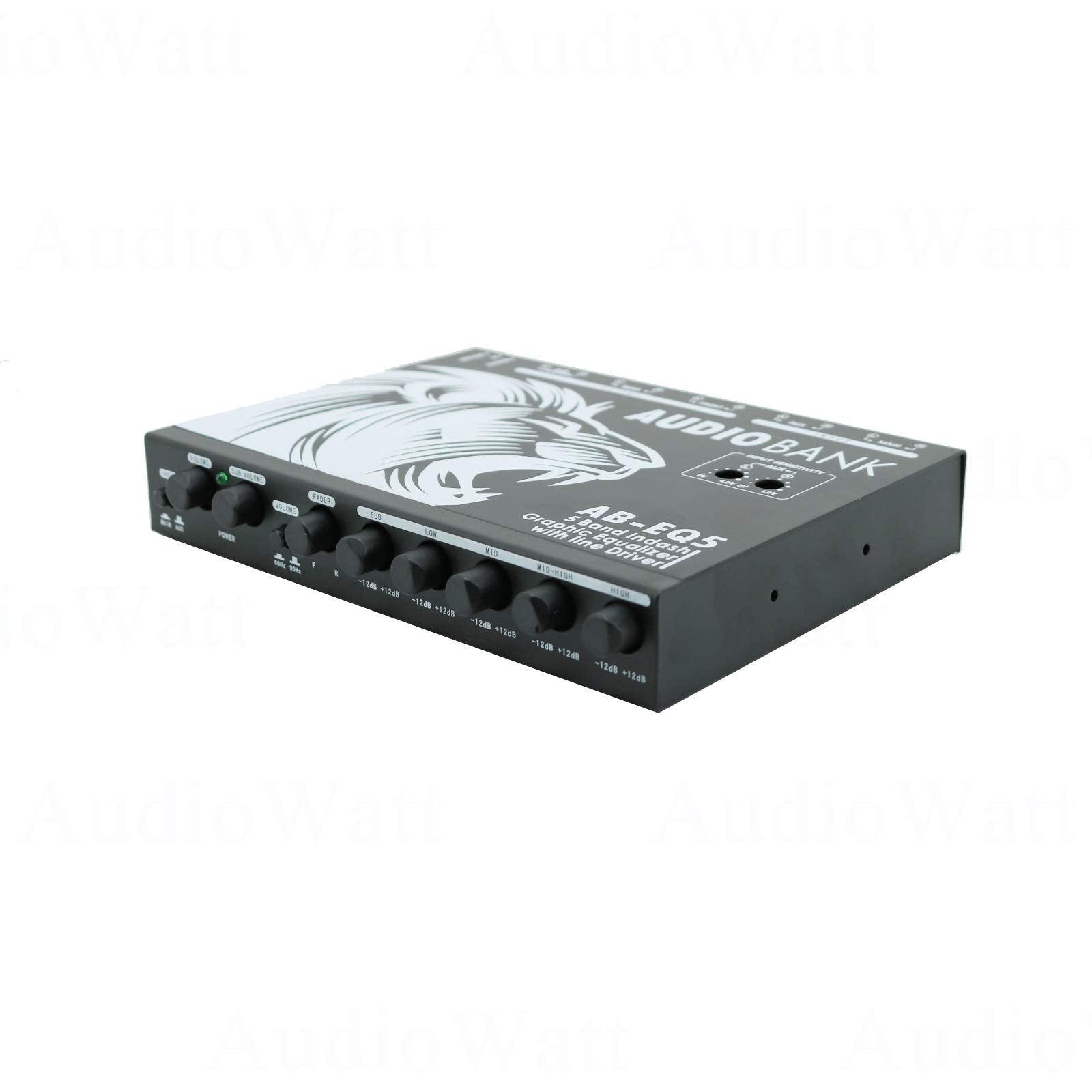

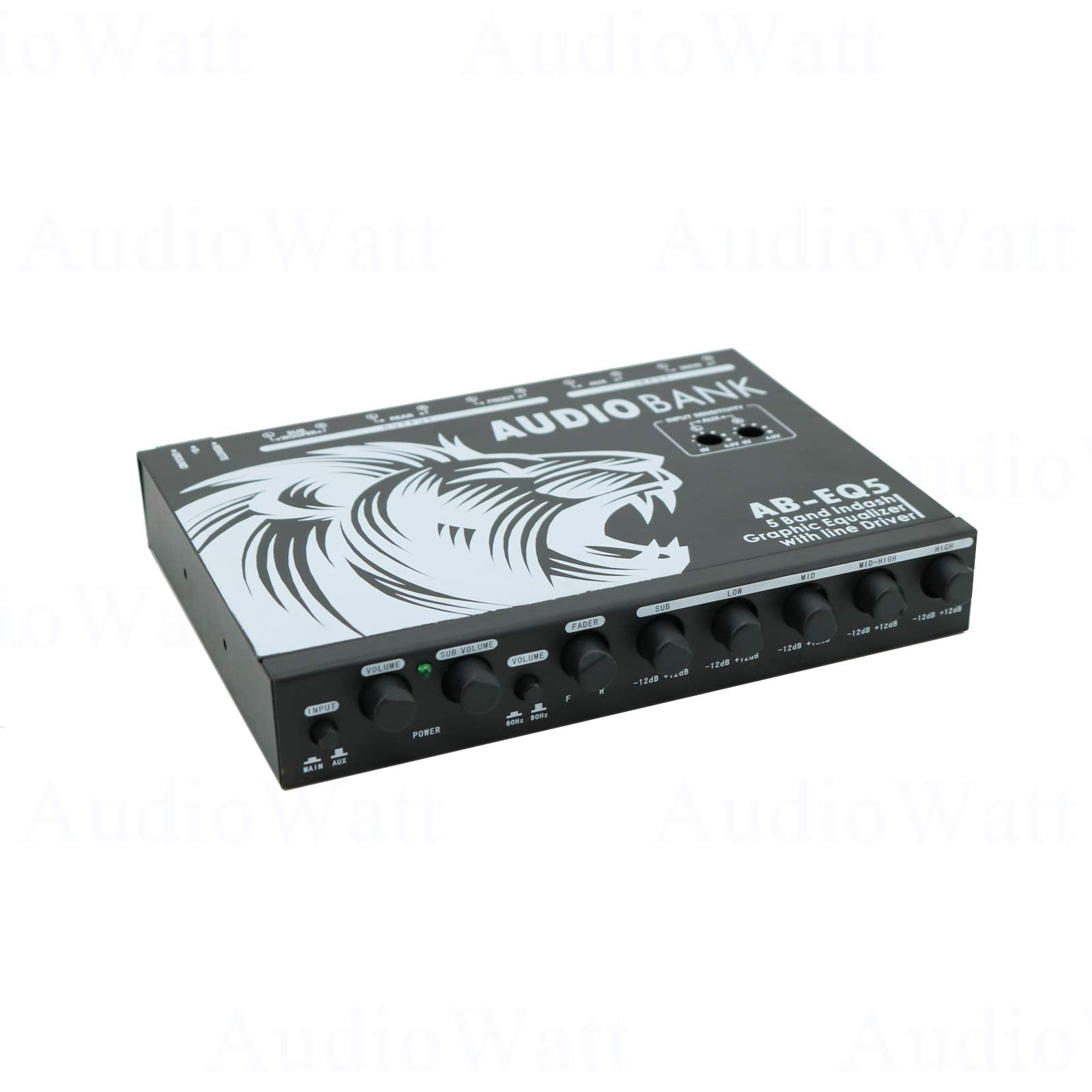

The Audiobank AB-EQ05 is a 5-band in-dash graphic equalizer designed to give users precise control over their car audio system’s sound profile. With adjustable frequency bands ranging from low bass to high treble, this equalizer allows fine-tuning of each audio range for a balanced and customized listening experience. Whether you prefer deep bass or crisp highs, the AB-EQ05 helps shape your system’s output to match your personal sound preferences.

Powerful Line Driver with Multiple Output Channels

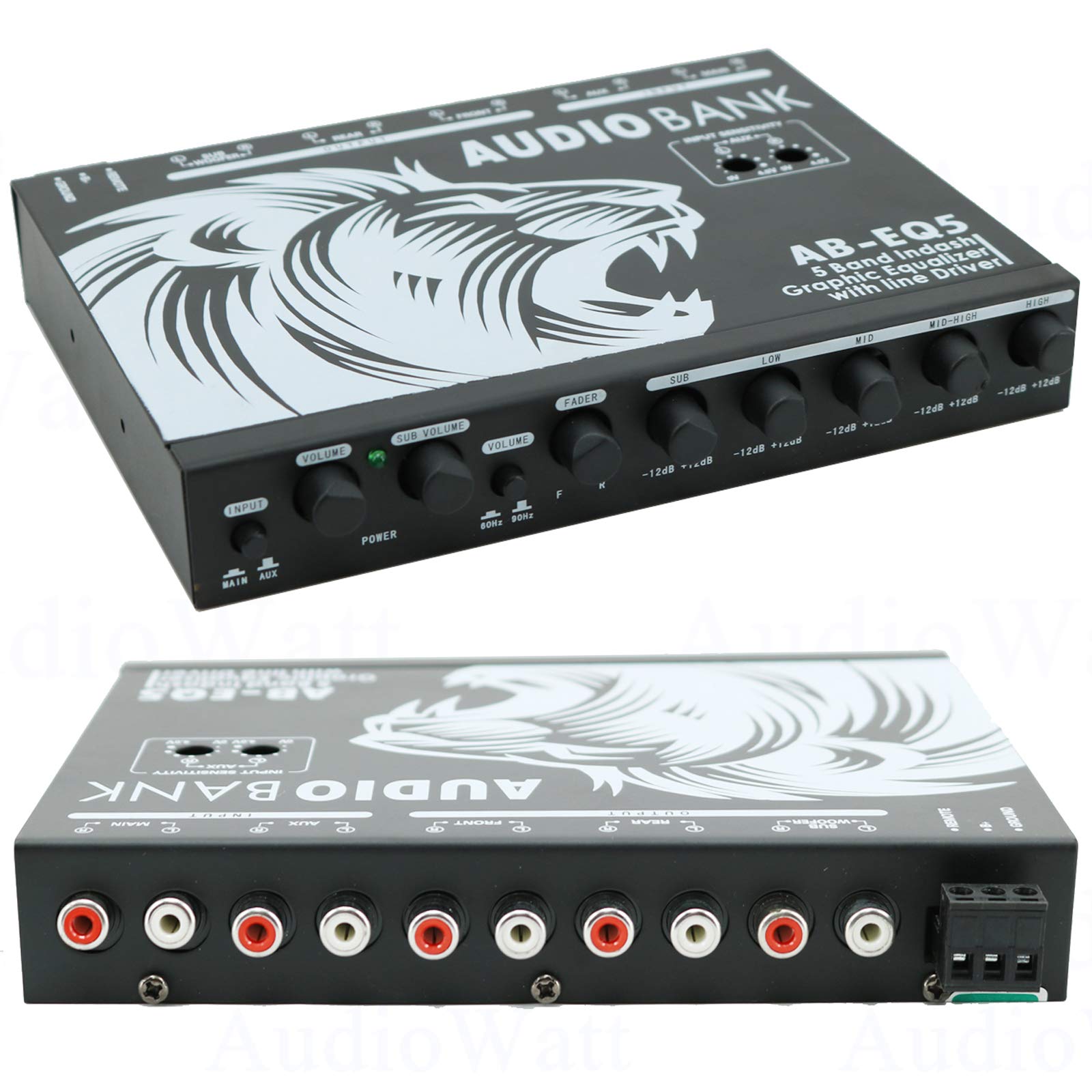

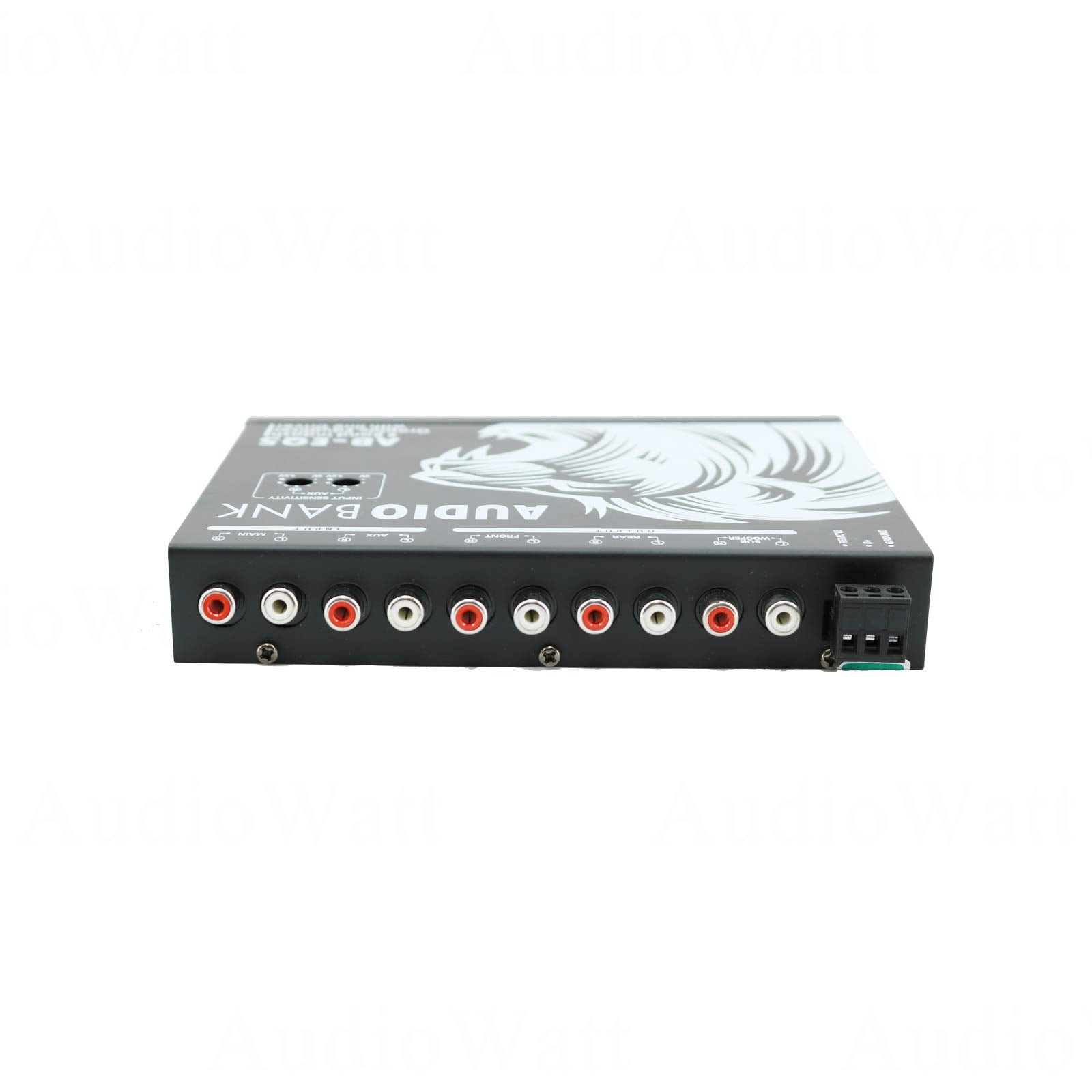

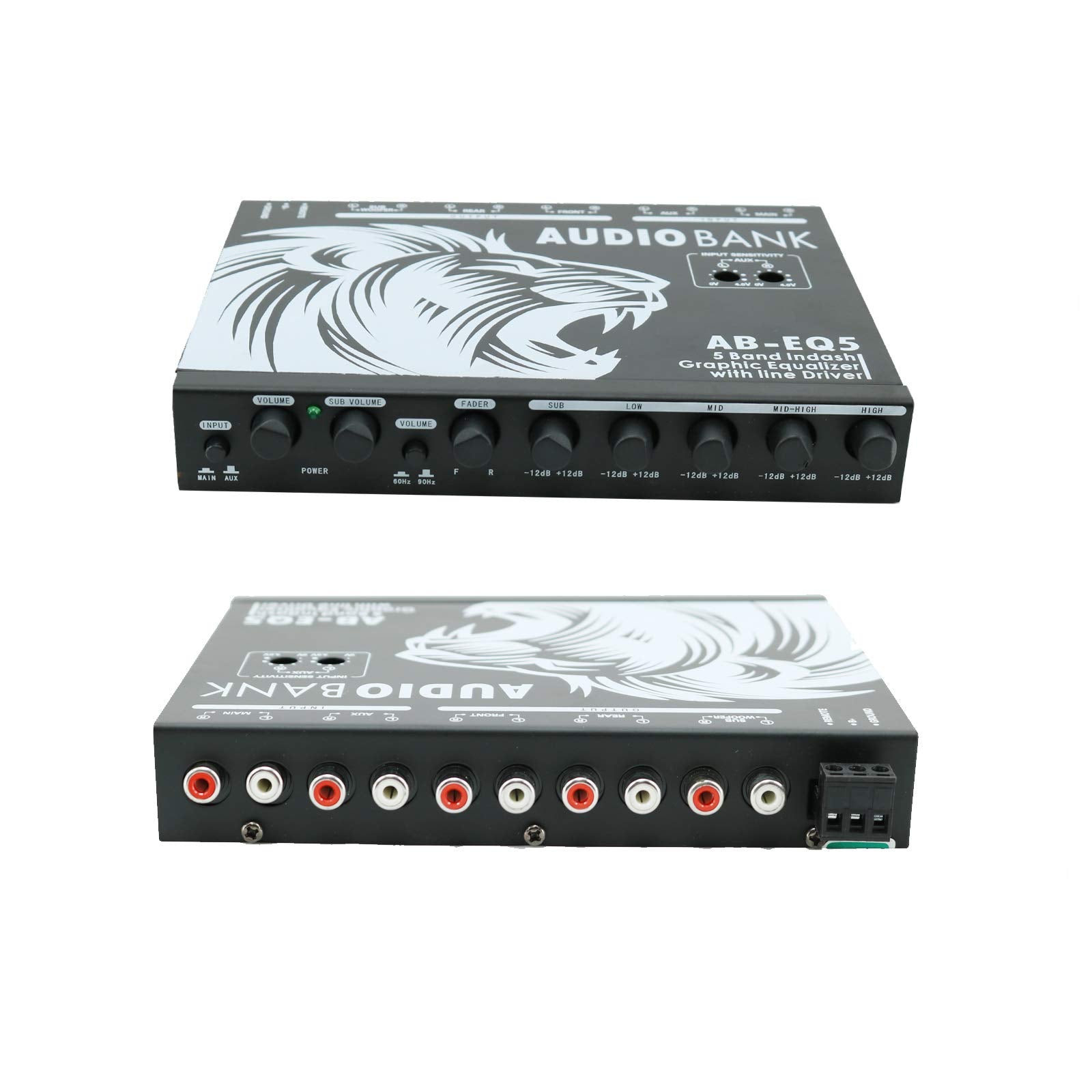

Equipped with a built-in 7V RMS line driver, the AB-EQ05 enhances signal strength and improves audio clarity across your entire system. It features three stereo RCA outputs, allowing independent connections for front, rear, and subwoofer amplifiers. This ensures better signal distribution and cleaner sound performance, making it ideal for complex multi-amplifier car audio setups. The auxiliary input also allows seamless connection to portable devices such as MP3 players and smartphones.

Advanced Control and Flexible Installation

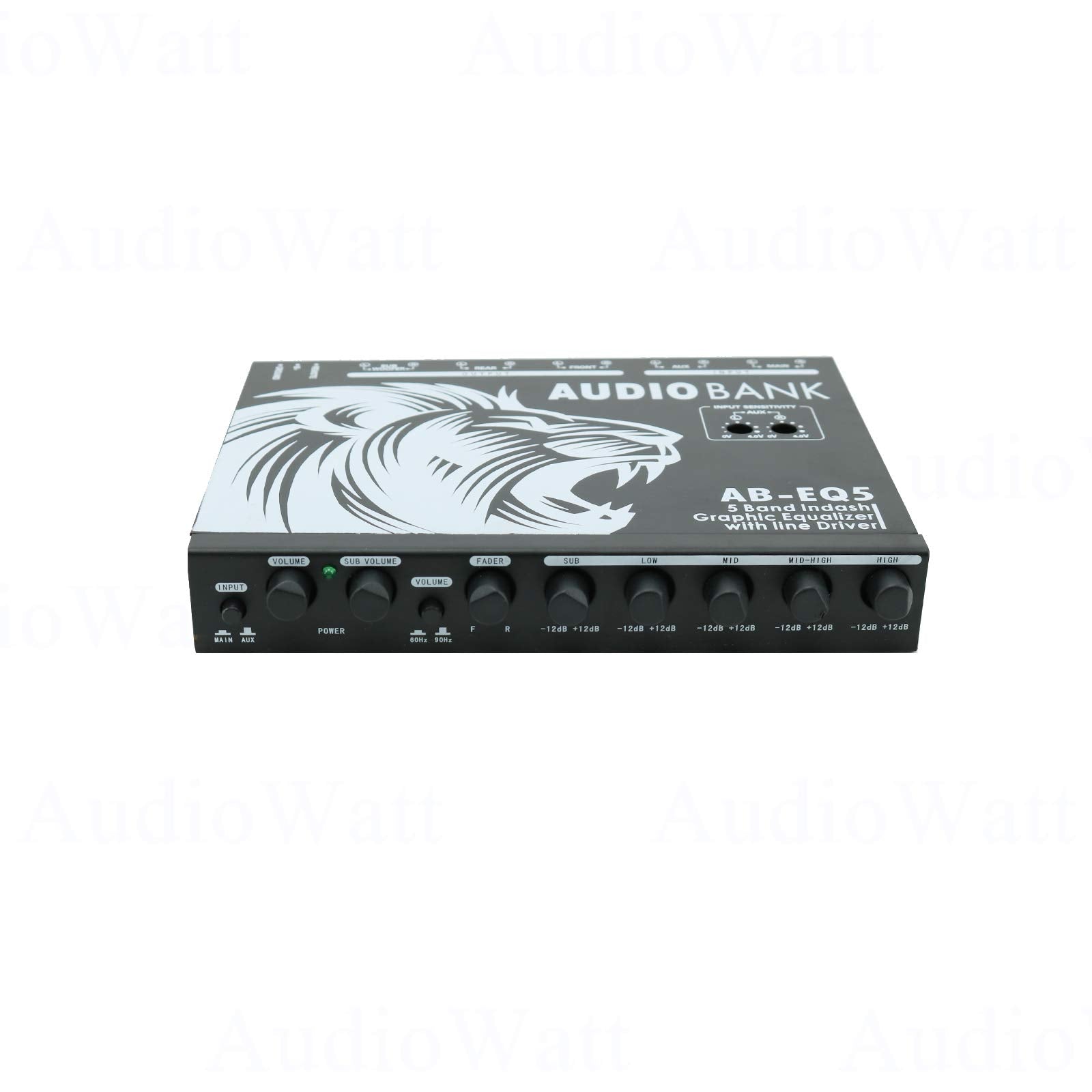

The Audiobank AB-EQ05 includes multiple user controls such as master volume, subwoofer level, fader adjustment, and input selection between main and auxiliary sources. Its adjustable subwoofer frequency control (43Hz–200Hz) provides deeper customization for bass output. Designed for 1/2 DIN in-dash installation, it features ISO mounting holes and a removable trim ring for flexible and professional-looking integration into most vehicle dashboards.

Highlights

• 5-band in-dash graphic equalizer system
• Seven adjustable frequency bands for precise tuning
• Built-in 7V RMS line driver for strong signal output
• Three stereo RCA outputs for front, rear, and subwoofer
• Dedicated subwoofer output with adjustable frequency range
• Auxiliary RCA input for portable devices
• Master volume and subwoofer level control
• Front/rear fader control for balanced audio
• Boost/cut adjustment for each frequency band
• Frequency response range of 10Hz–50kHz
• Signal-to-noise ratio of 85dB for clean audio
• ISO mounting design for easy installation
• Removable trim ring for custom dashboard fit
• High-quality RCA connectors for stable signal transfer
• Ideal for multi-amplifier car audio systems
• Enhances clarity, depth, and overall sound control

Package Contains

• 1 x Audiobank AB-EQ05 5-Band Graphic Equalizer
• 1 x Wiring Harness
• 1 x Installation Mounting Kit
• 1 x RCA Connection Cables (if included by manufacturer)
• 1 x User Manual
