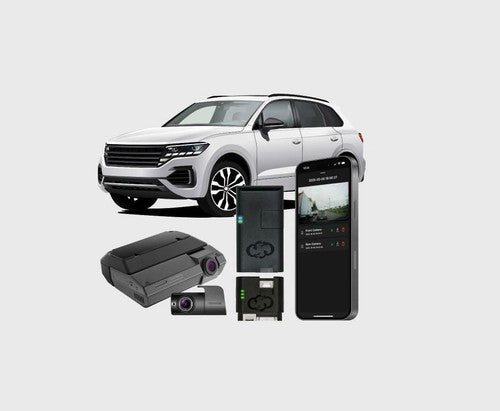

VOXX THINKWARE F790AIR-TGM Dual-Channel Connected Dash Cam

The THINKWARE F790AIR-TGM is a connected dual-channel dash camera system designed to record the road ahead and behind your vehicle while adding remote event awareness through a compatible connected-vehicle app platform. It is intended for drivers who want locally recorded video plus notifications when driving or parking incidents are detected. Front and rear Full HD recording helps provide two viewpoints for reviewing vehicle events.

This system suits daily drivers, families, fleet-oriented users, and owners who want a dash cam integrated with a telematics gateway. Its connected functions can send incident notifications and provide access to associated video through the app when supported service is active. This helps reduce the need to be physically near the vehicle to know that a recorded event occurred.

The F790AIR-TGM records Full HD 1080p video at 30 frames per second from both front and rear cameras. HDR, dewarping technology, and Super Night Vision 3.0 are included to support clearer footage in changing light conditions and during nighttime parking. A 140-degree front viewing angle and 160-degree rear viewing angle provide broad coverage around the vehicle.

Built-in GPS, a 3-axis impact sensor, and configurable recording modes provide the core event-recording foundation. When an impact is detected in driving or parking modes, the camera can create a 20-second event recording with footage from before and after detection. The integrated plug-in mount incorporates GPS and power connections to keep the windshield installation more organized.

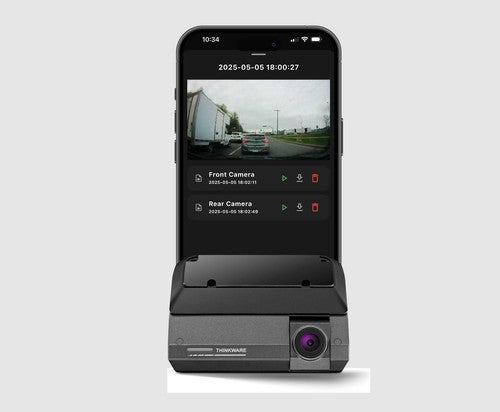

For a connected upgrade path, the TGM telematics integration enables app-based alerting, video playback and downloads, event filtering, and supported on-demand video requests. Crash notifications with video require the F790AIR and TGM connection, while parking-event notifications and Instant View access depend on the applicable service tier. The system can also operate as a conventional microSD-recording dash camera with Wi-Fi access for compatible mobile viewing and settings.

Key Features

• Dual-Channel Full HD Recording: Records front and rear video in 1080p at 30 frames per second.
• Connected Event Alerts: Sends supported driving and parking-event notifications through the connected app platform.
• 20-Second Event Clips: Saves incident footage from before and after detected impacts.
• Super Night Vision 3.0: Uses image processing to support clearer nighttime recording.
• Integrated GPS and G-Sensor: Adds location data and impact detection for recorded events.
• Parking Recording Modes: Supports motion detection, image-by-image, and power-saving parking operation.

Design & Installation

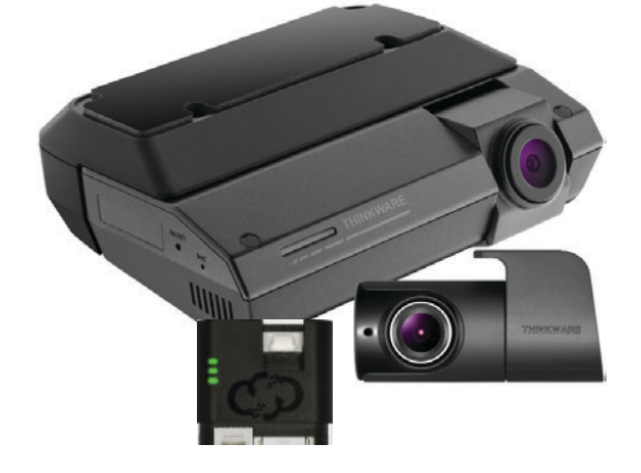

The F790AIR-TGM uses a compact front-camera body with a separate plug-in mount, built-in status indicators, onboard microphone and speaker, microSD storage, and a supercapacitor backup power source. Its mount integrates the GPS function and cable connection, while the dash camera supports front and rear recording through its dual-channel configuration. The rear camera mounts to the rear windshield with adhesive and connects to the main unit through the rear-camera cable.

Install the front camera where it does not obstruct the driver's view, then route the rear-camera and power wiring safely away from driving controls and airbag areas. Parking Mode requires connection through the vehicle wiring connection cable and is recommended for qualified professional installation. Use a compatible microSD card, connect the system to the supported app by Wi-Fi for setup, and activate the applicable connected service plan for remote alerts, remote video functions, and telematics features.
