Memphis MJMEFORD8D1V2 Dual 8" MOJO Mini Ford Enclosure

The Memphis MJMEFORD8D1V2 is a vehicle-specific loaded subwoofer enclosure for select Ford trucks. It combines two 8-inch MOJO Mini subwoofers in a side-ported enclosure intended to install beneath the rear seat. This provides a dedicated bass upgrade without requiring custom enclosure fabrication.

This enclosure is designed for 2009-up Ford F-150 SuperCrew trucks and 2017-up Ford F-250 and F-350 Super Duty trucks. Its vehicle-specific form is intended to fit the interior without modification. Confirm the exact truck configuration before purchase and installation.

The dual 8-inch arrangement is wired for a 1-ohm final impedance and is rated for 1800 watts RMS and 3600 watts peak power. The ported enclosure design is built to support strong low-frequency output in a pickup cabin. It is suited to systems using a compatible high-power mono subwoofer amplifier.

MOJO Mini subwoofer engineering includes Direct Vent Voice Coil Cooling (DVVC), a heat-dissipating aluminum heat sink, and a vented cast-aluminum basket. Each woofer uses a four-layer copper 2-inch voice coil. These features are designed to help manage heat and maintain structural support during sustained bass playback.

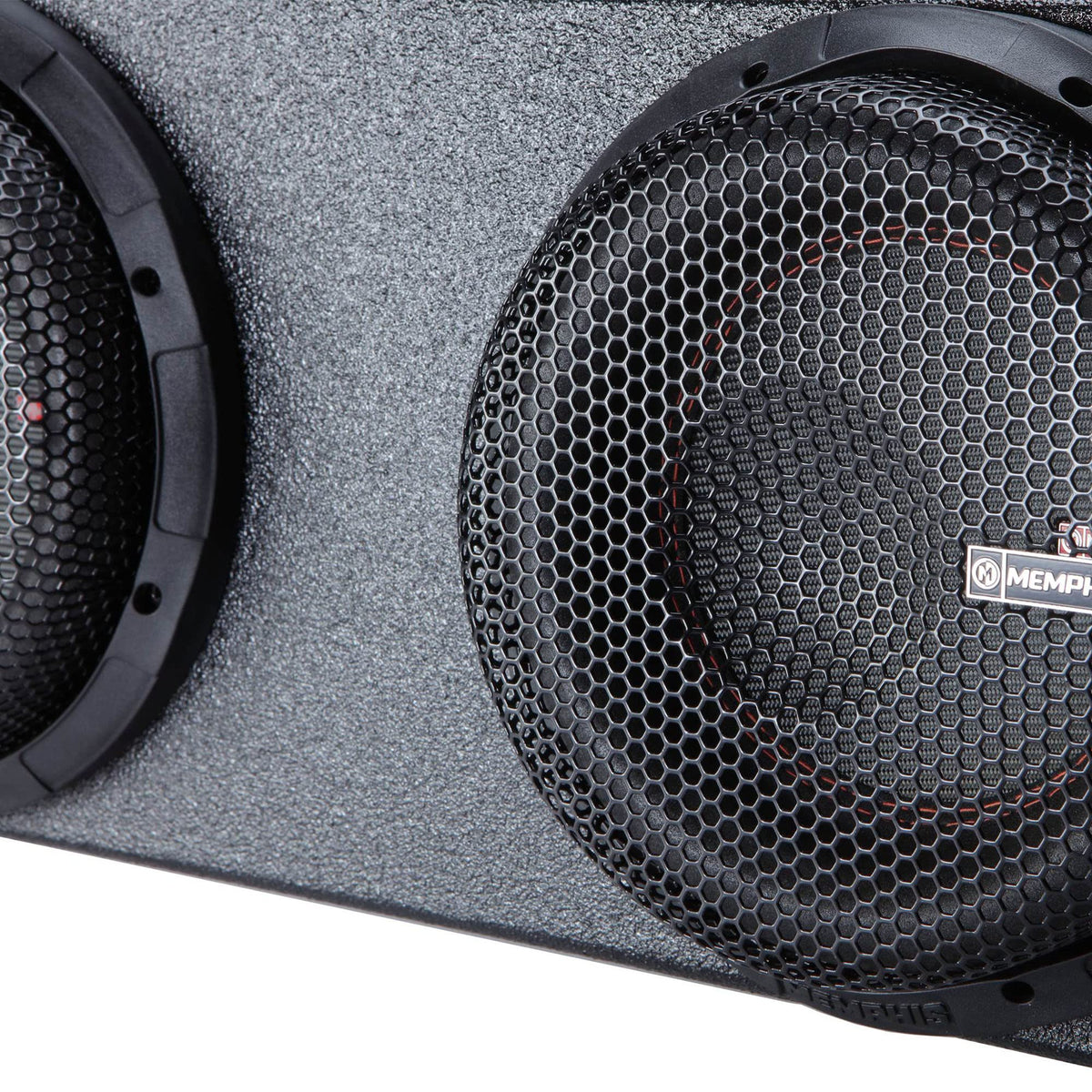

The enclosure has a Memphis-branded durable bedliner finish for a rugged installed appearance. Protective high-excursion metal grilles are included to help shield the woofers in the rear-seat area. With the enclosure and subwoofers already matched, an installer can focus on amplifier selection, power wiring, signal integration, and system tuning.

Key Features

• Vehicle-Specific Fit: Designed for select Ford SuperCrew and Super Duty trucks.
• Dual 8-Inch Subwoofers: Includes two MOJO Mini 8-inch woofers.
• 1-Ohm Final Load: Matches compatible mono amplifiers rated for 1 ohm.
• 1800-Watt RMS Rating: Supports substantial continuous system power handling.

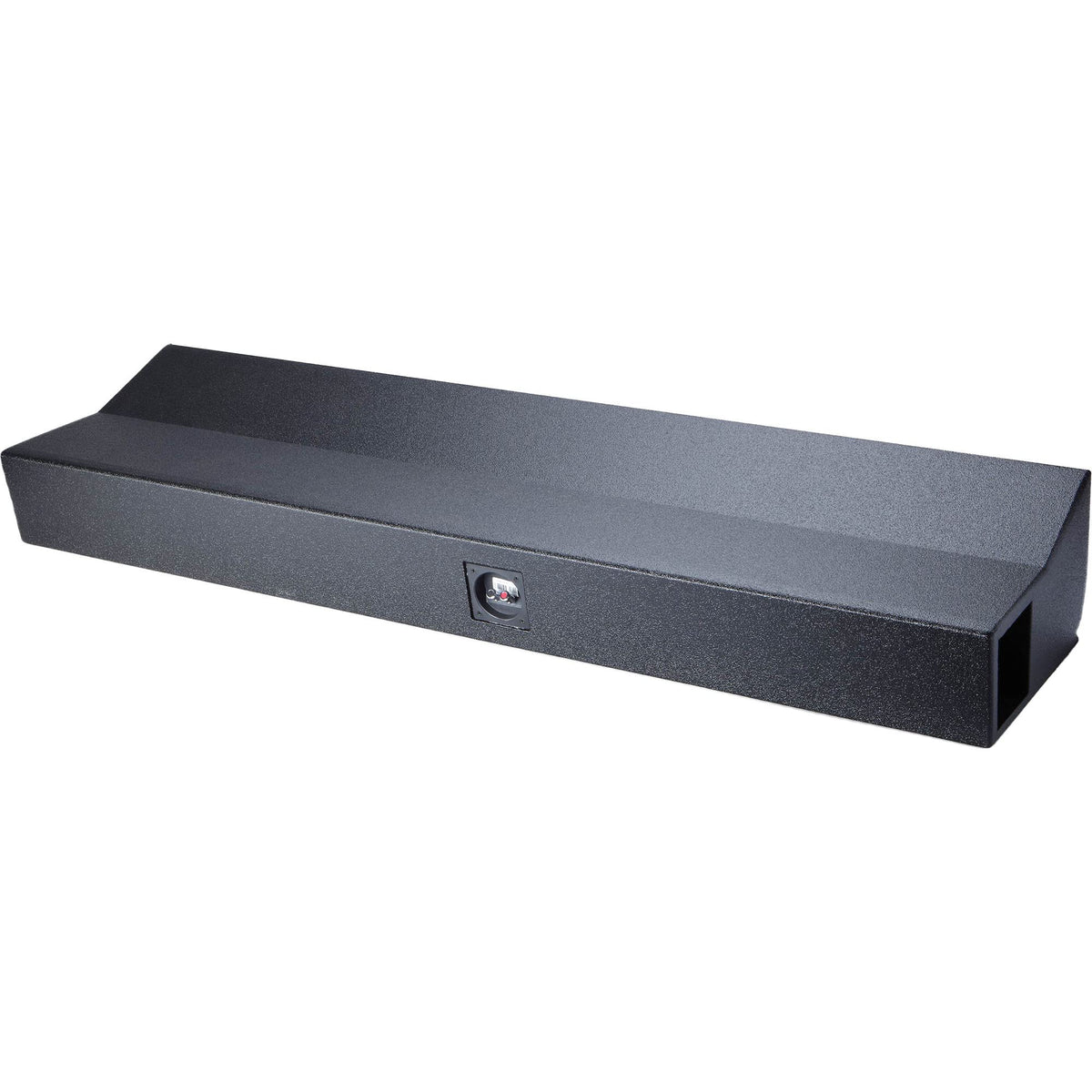

• Side-Ported Enclosure: Uses a ported design for low-frequency output.
• Protective Metal Grilles: Helps protect woofers beneath the rear seat.

Design & Installation

The MJMEFORD8D1V2 uses a side-ported enclosure finished in durable bedliner coating, with protective high-excursion grilles over the subwoofers. Its woofer hardware includes vented cast-aluminum baskets, fiberglass-reinforced dust caps, VGroove rubber surrounds, aluminum heat sinks, and four-layer copper voice coils. The loaded design supplies the enclosure and both subwoofers as one matched assembly.

Install the enclosure under the rear seat in a confirmed compatible Ford truck, following the vehicle-specific placement intended by Memphis. Use a compatible mono amplifier that is stable at the enclosure's 1-ohm final impedance, plus appropriate power, ground, speaker, and signal wiring. The manufacturer and product listings do not identify an amplifier or wiring kit as included, so those components should be planned separately.
