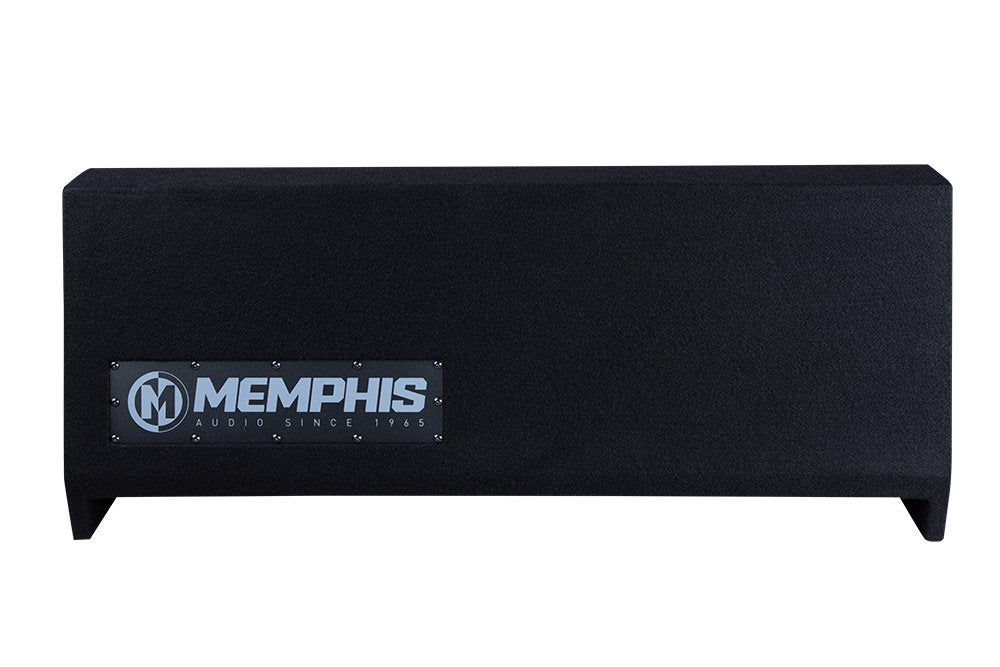

MEMPHIS MJME6D1TV2 Dual 6.5" 1-Ohm Loaded Truck Enclosure

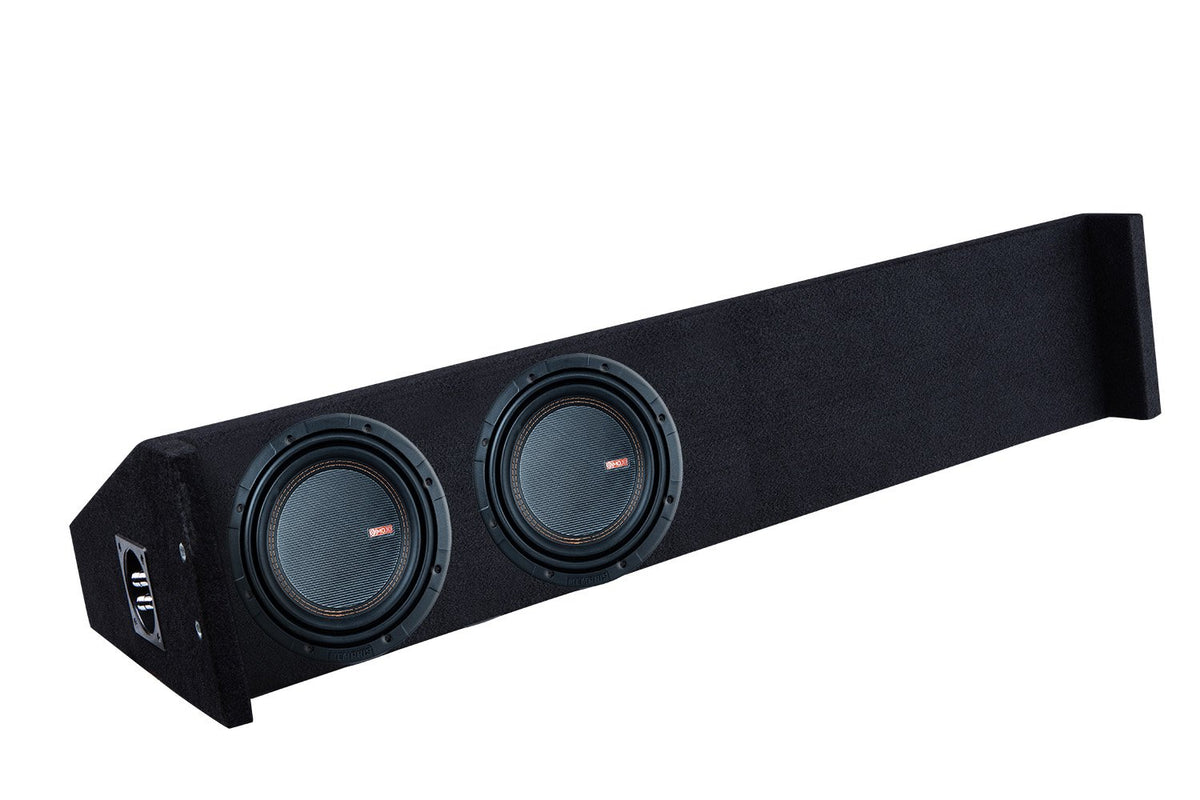

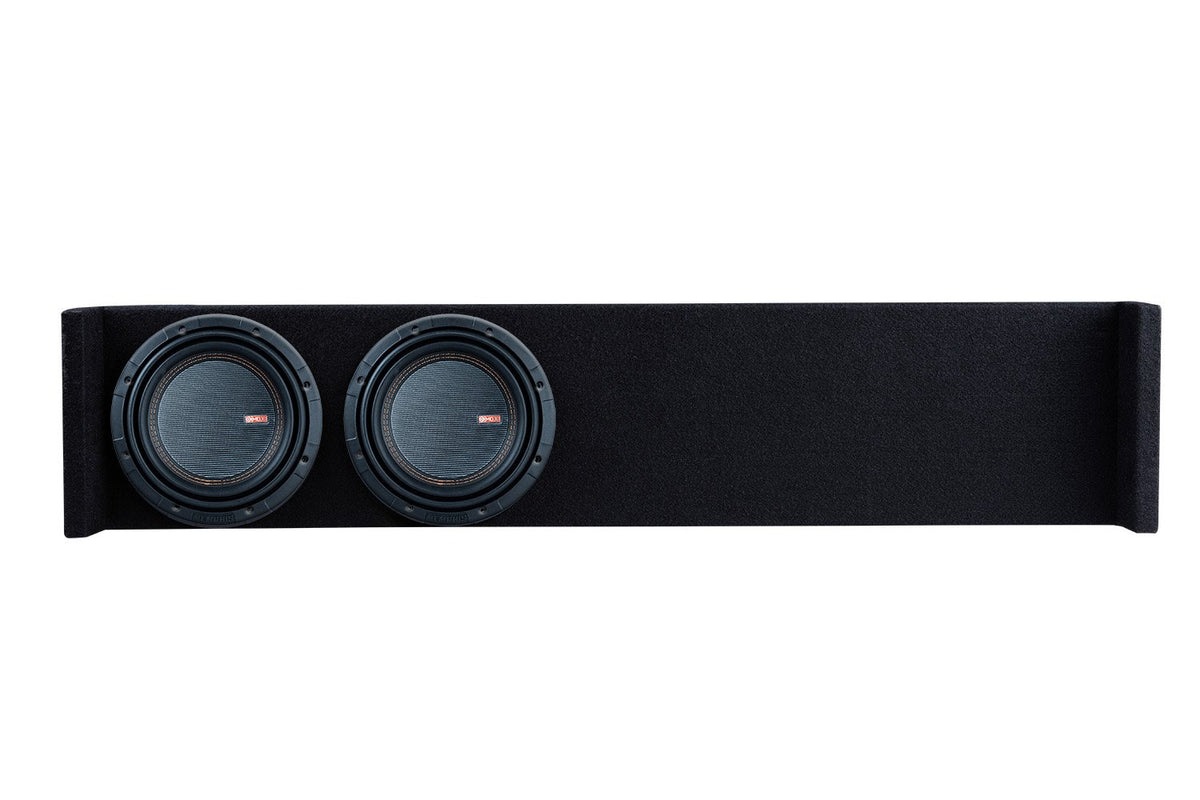

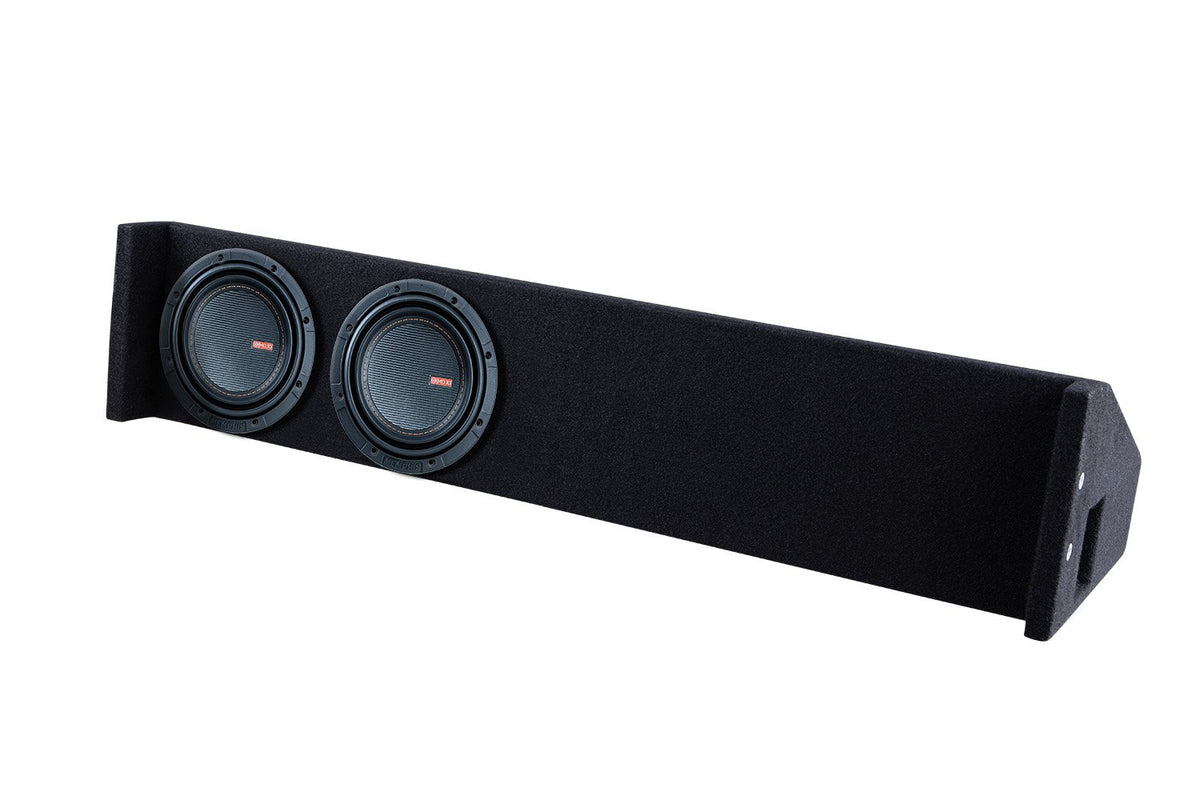

The Memphis MJME6D1TV2 is a loaded, thin-profile truck enclosure with two 6.5-inch MOJO Mini subwoofers. It is designed to add substantial low-frequency reinforcement where conventional subwoofer boxes may take up too much cabin space. Its behind-seat-oriented shape makes it a practical option for many single-cab trucks and other space-conscious vehicle builds.

This enclosure is intended for listeners who want a complete bass enclosure rather than assembling separate subwoofers and a custom box. The dual-driver, ported configuration is prewired to a 1-ohm final impedance for use with a compatible external amplifier. With 1,400 watts RMS total power handling, it is suited to systems built around a high-output mono amplifier.

The ported enclosure design supports strong low-frequency output while the compact wedge profile helps preserve usable interior space. Memphis specifies a 48-150 Hz frequency response and 82 dB sensitivity for the loaded system. This gives the enclosure a focused role as the dedicated bass foundation in a full-range vehicle audio system.

MOJO Mini driver engineering includes fiberglass-reinforced cones, V-Groove high-excursion rubber surrounds, and vented cast-aluminum baskets. The 4-layer wound copper voice coils use Memphis DVVC Direct Vent Voice Coil Cooling to help manage heat during extended playback. An aluminum heat sink further supports thermal dissipation around the subwoofer assembly.

The MJME6D1TV2 comes loaded and wired, simplifying the subwoofer portion of a truck audio upgrade. Pair it with an amplifier designed to operate safely at a 1-ohm load and match amplifier output appropriately to the enclosure's 1,400-watt RMS rating. Its carpet-wrapped exterior also gives the installation a finished appearance without requiring a separate custom enclosure.

Key Features

• Dual 6.5-Inch MOJO Mini Subwoofers: Provides a compact, preloaded bass solution.
• 1-Ohm Final Impedance: Ready for a compatible 1-ohm-stable amplifier.
• 1,400W RMS Handling: Supports high-power mono amplifier system designs.

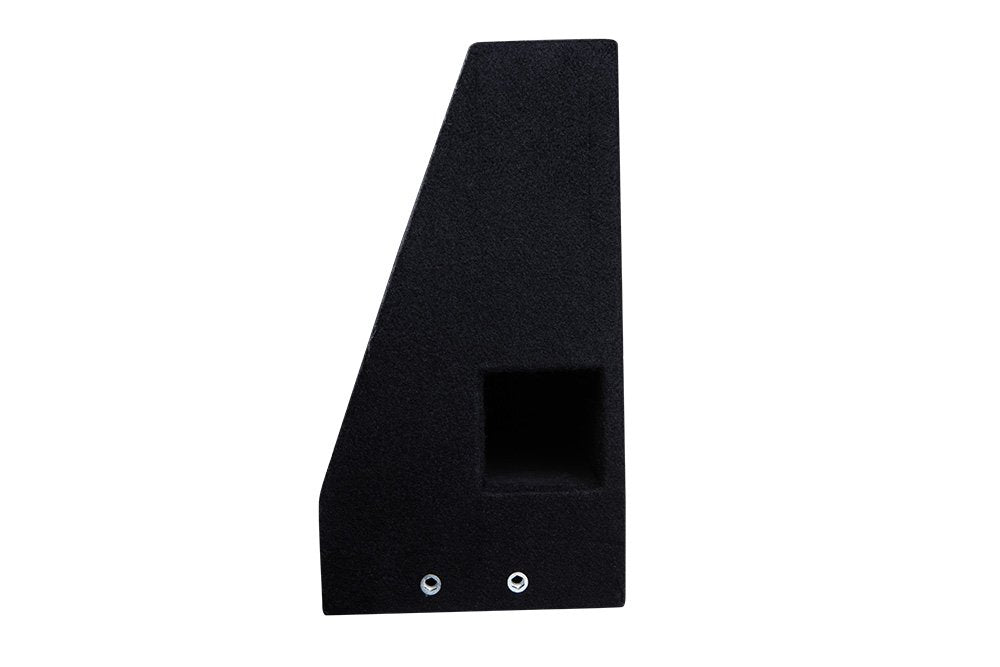

• Ported Truck Enclosure: Helps produce strong bass from a slim footprint.
• DVVC Cooling: Direct voice-coil ventilation helps manage operating heat.
• Behind-Seat Profile: Designed for many truck and tight-space installations.

Design & Installation

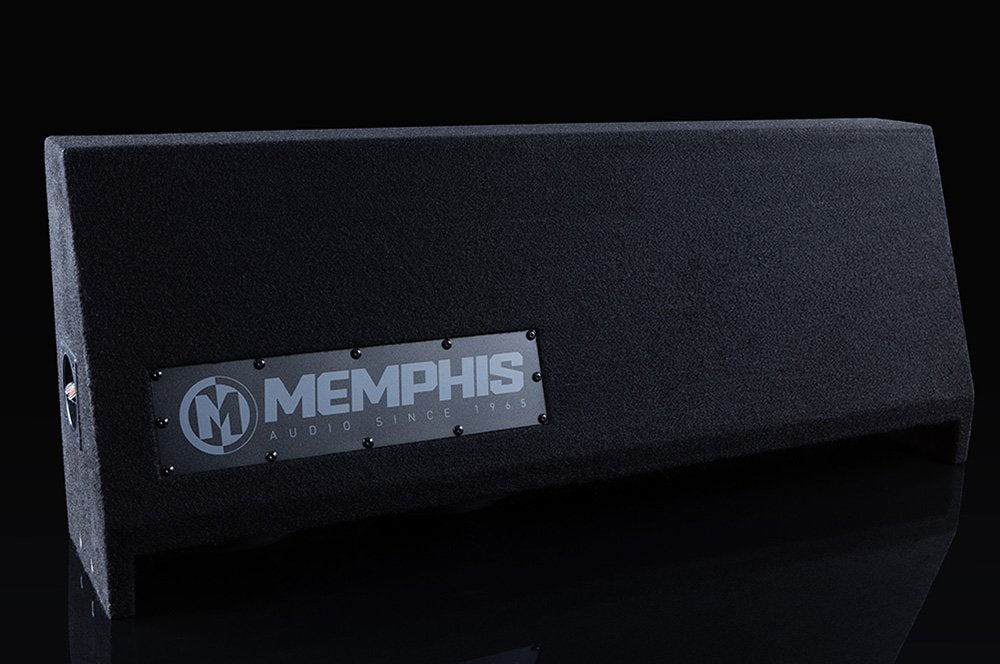

The enclosure has a carpet-wrapped exterior and a ported wedge-shaped cabinet design. Its subwoofers use vented cast-aluminum baskets, fiberglass-reinforced cones, V-Groove rubber surrounds, 4-layer copper voice coils, and heat-dissipating aluminum components. The overall design is intended to balance durability, thermal management, and limited-depth vehicle placement.

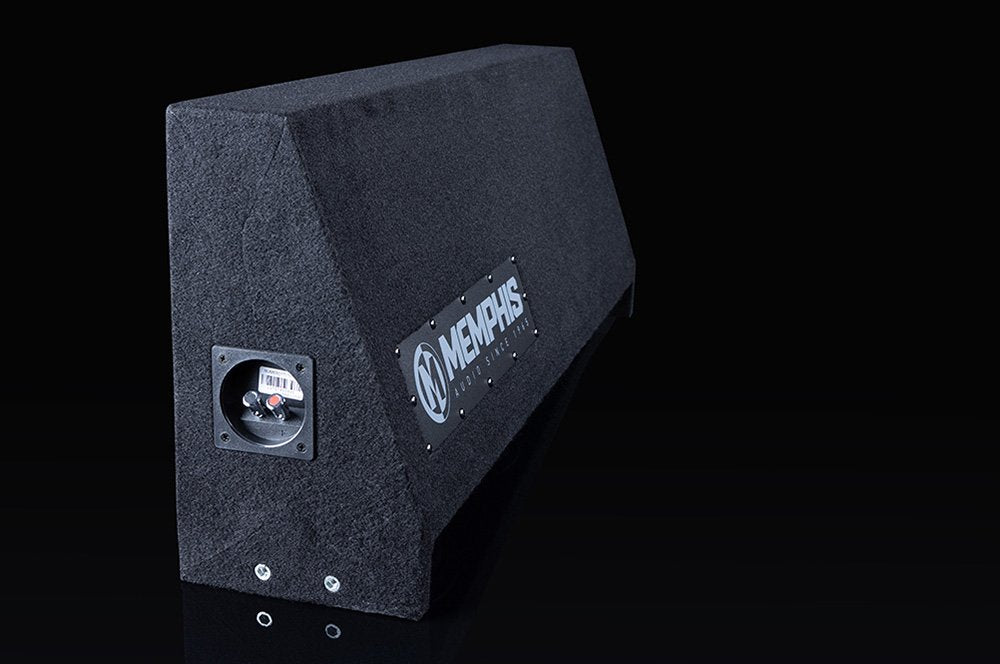

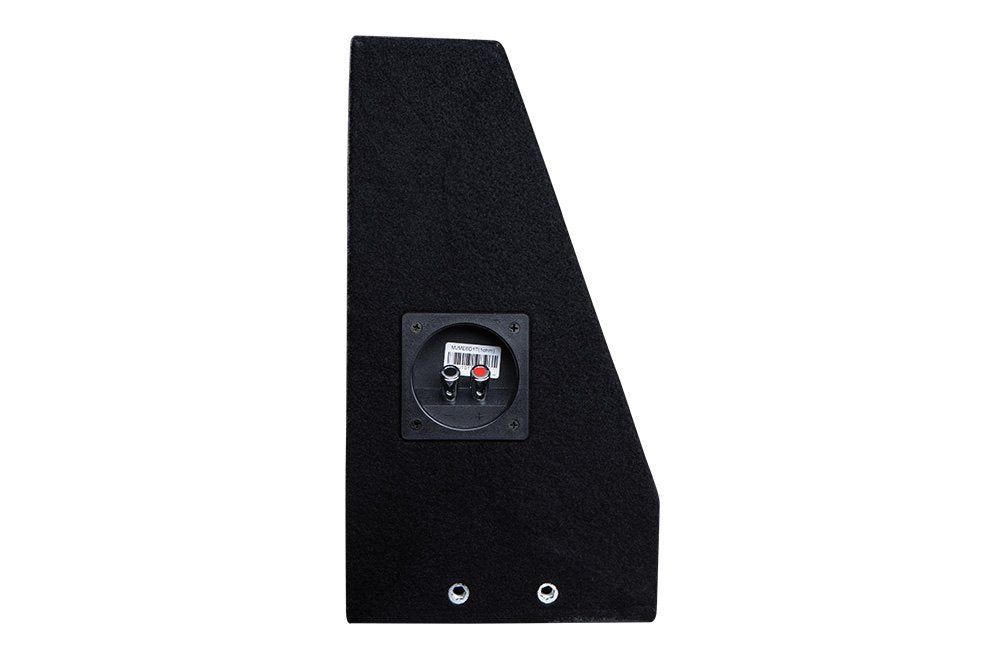

Measure the available installation area before ordering, especially width, height, top depth, and bottom depth behind the seat. Connect the enclosure's spring-post terminals with speaker wire up to 10 AWG, then use an external amplifier that is rated for a 1-ohm load. Two mounting brackets and associated hardware are included to help secure the enclosure; use a solid mounting surface and follow safe vehicle-audio wiring practices.
