JVC KW-M590BT Double DIN 6.8" Digital Media Receiver

The JVC KW-M590BT is a digital media receiver designed to bring modern smartphone access, hands-free communication, and expandable sound control to an aftermarket car audio system. Its 6.8-inch capacitive touchscreen places key functions within easy reach while retaining AM/FM radio, Bluetooth audio, USB media playback, and camera connectivity. It is a practical choice for drivers replacing an older factory radio or adding a screen-based interface to a compatible vehicle.

Apple CarPlay and Android Auto connect by USB, providing access to compatible navigation, calling, messaging, music, and voice-control functions through the receiver display. Bluetooth adds wireless music streaming and hands-free calling, while HFP 1.8 wideband speech support is designed to improve call clarity. USB Mirroring is also available for selected compatible smartphones using the MirrorAPP+ application.

For audio performance, the KW-M590BT includes a built-in four-channel amplifier rated at 50 watts maximum per channel and 22 watts RMS per channel at less than 1% THD. A 13-band graphic equalizer, two-way crossover, subwoofer level control, and digital time alignment give installers useful tools for tailoring the system to the vehicle. Front, rear, and mono subwoofer preouts support a later amplifier, speaker, or subwoofer upgrade.

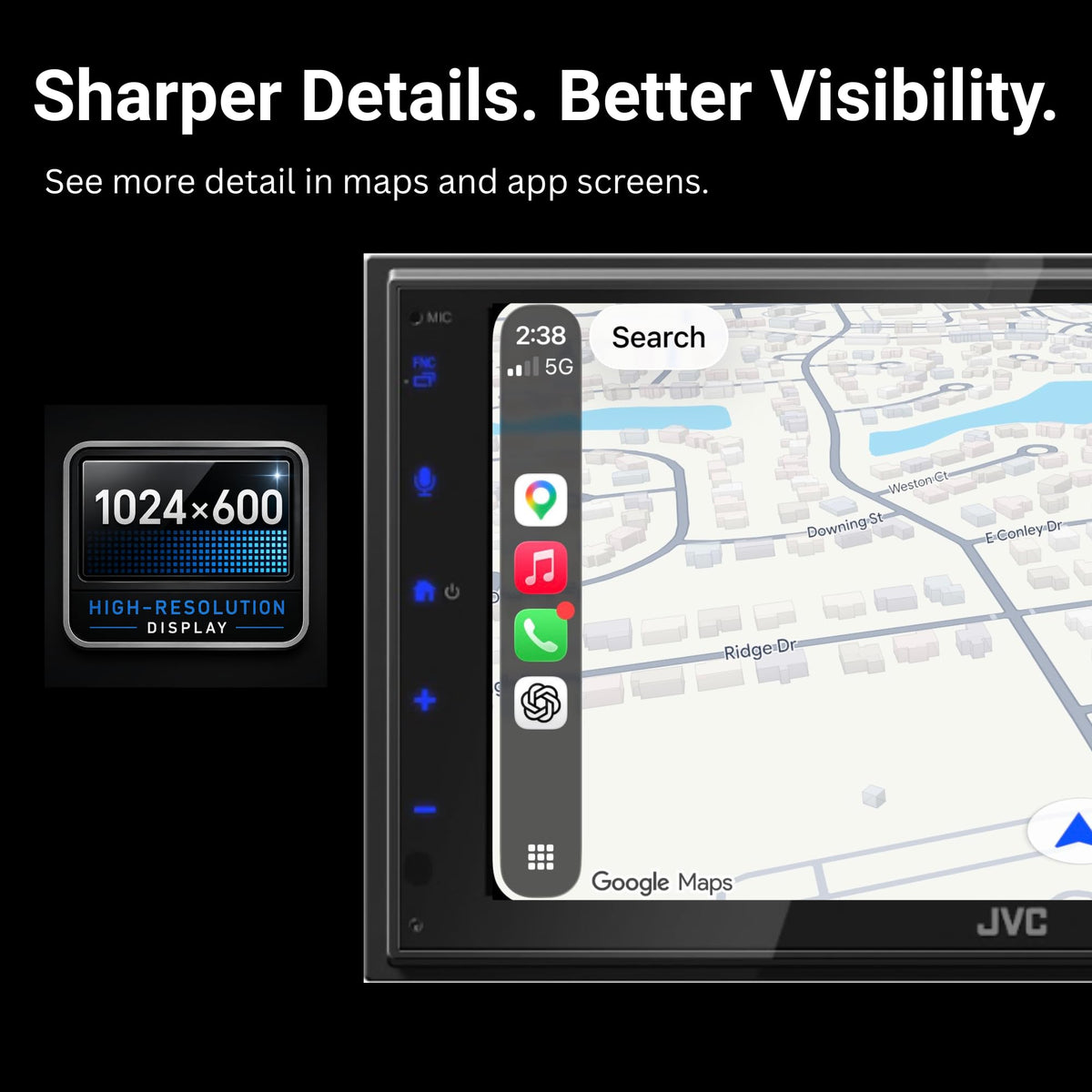

The 6.8-inch WSVGA LCD uses a 1024 x 600 resolution and capacitive touch operation for clear menus and responsive control. Gesture Touch Control supports selected source functions, and the screen is paired with dedicated touch-sensitive controls along the side. USB playback supports a wide range of audio and video file formats, including high-resolution WAV and FLAC files.

Installation flexibility is a central part of the design. The receiver has a double-DIN display with a shallow, L-shaped rear chassis, and it can be configured for a 1-DIN installation by removing the supplied side and rear brackets. A rear-view camera input, steering-wheel-control readiness with a compatible third-party adapter, and optional RM-RK259 remote compatibility help it integrate into a broad range of vehicle upgrades.

Key Features

• Wired Smartphone Integration: Apple CarPlay and Android Auto connect through USB.
• 6.8-Inch WSVGA Display: 1024 x 600 capacitive touchscreen provides detailed on-screen control.
• Bluetooth 5.0: Stream music and handle compatible hands-free calls wirelessly.
• 13-Band Sound Tuning: EQ, crossover, time alignment, and subwoofer control refine system response.
• System Expansion: Front, rear, and mono subwoofer preouts support external amplification.

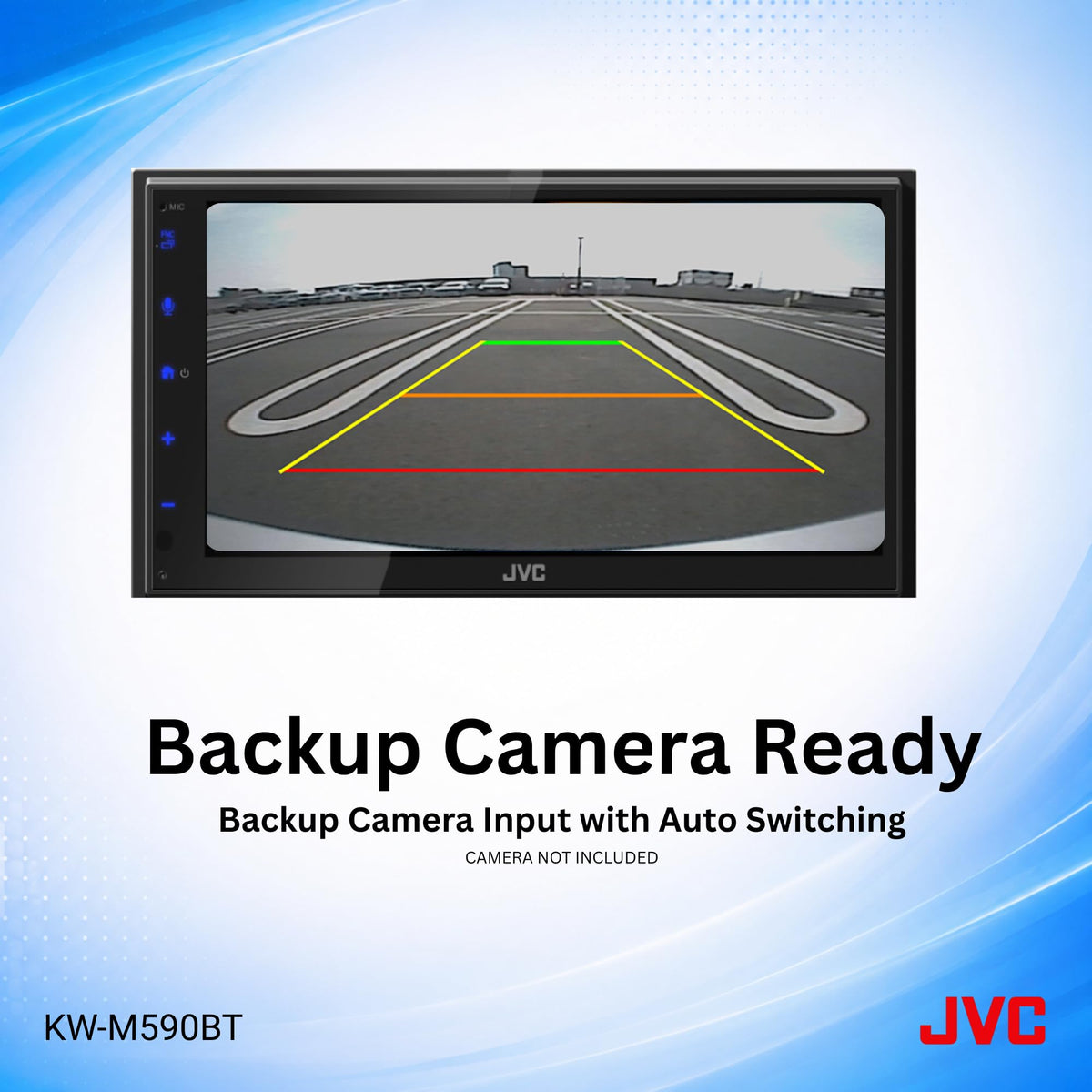

• Rear Camera Input: Connect a compatible composite rear-view camera for reversing assistance.

Design & Installation

The KW-M590BT uses a fixed 6.8-inch capacitive touchscreen and a compact short-chassis layout rather than a conventional full-depth receiver body. Its WSVGA LCD has LED backlighting, a transparent TN panel, TFT active-matrix drive, and an RGB-striped pixel arrangement. The chassis is sized for a 178 x 100 mm double-DIN opening while preserving space behind the dash for wiring and vehicle-specific integration hardware.

Professional installation is recommended for safe mounting and wiring. The unit is supplied with a 1.0 m USB lead and supports 1-DIN installation after the designated brackets are removed; vehicle-specific dash kits, wiring harness adapters, antenna adapters, steering-wheel-control adapters, and cameras may be needed depending on the vehicle. Use a quality USB cable for wired CarPlay or Android Auto, and confirm vehicle fitment before purchase.
