JBL STAGE3527FAM 5.25" Two-Way Car Speakers

The JBL STAGE3527FAM Stage3 527F is a pair of 5.25-inch, two-way coaxial car speakers made for replacing factory-installed speakers in compatible vehicle locations. Its no-grille configuration is intended for factory upgrade applications where the vehicle already provides a speaker cover or grille. The pair provides a practical option for restoring or improving everyday in-car sound without adding separate tweeters or external crossovers.

These speakers use a 3-ohm design and 91 dB sensitivity to work efficiently with a compatible factory radio or aftermarket amplifier. JBL rates each speaker for 40 watts RMS and 120 watts peak power handling. Their 75 Hz to 20 kHz frequency response supports full-range music playback, while a separate subwoofer can be added for deeper bass.

The 5.25-inch Plus One polypropylene woofer cone uses an attachment point positioned farther outward on the frame. This increases effective cone area compared with a conventional same-size design, helping the woofer move more air. The result is a useful fit for listeners seeking stronger midbass and output from a compact factory-replacement speaker.

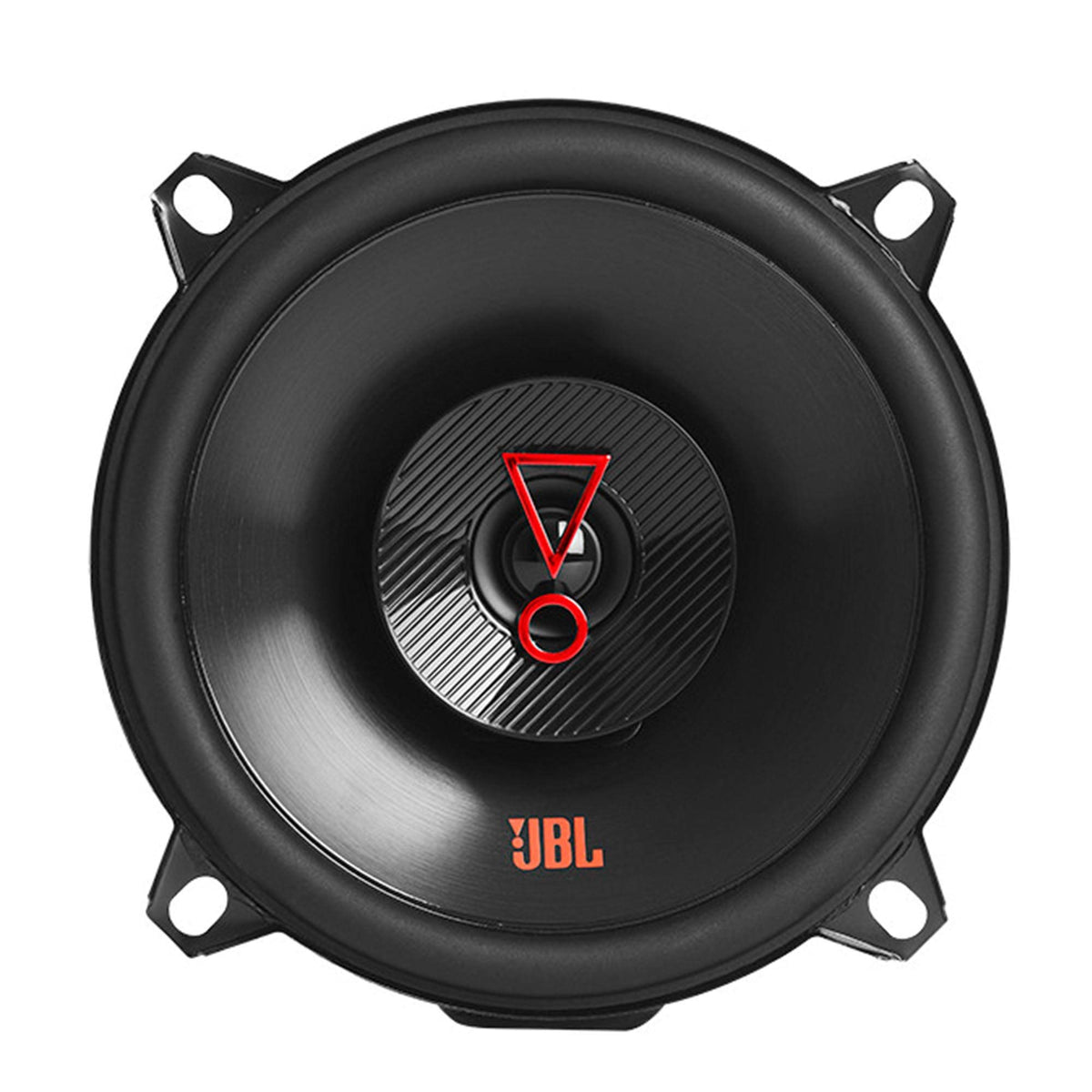

A centrally mounted dome tweeter handles high-frequency information in the coaxial design, keeping both drivers together in one mounting location. This layout simplifies installation in vehicles designed for full-range door, dash, or rear-deck speakers. JBL's Stage3 tuning is designed to provide a consistent sound character across the speaker line.

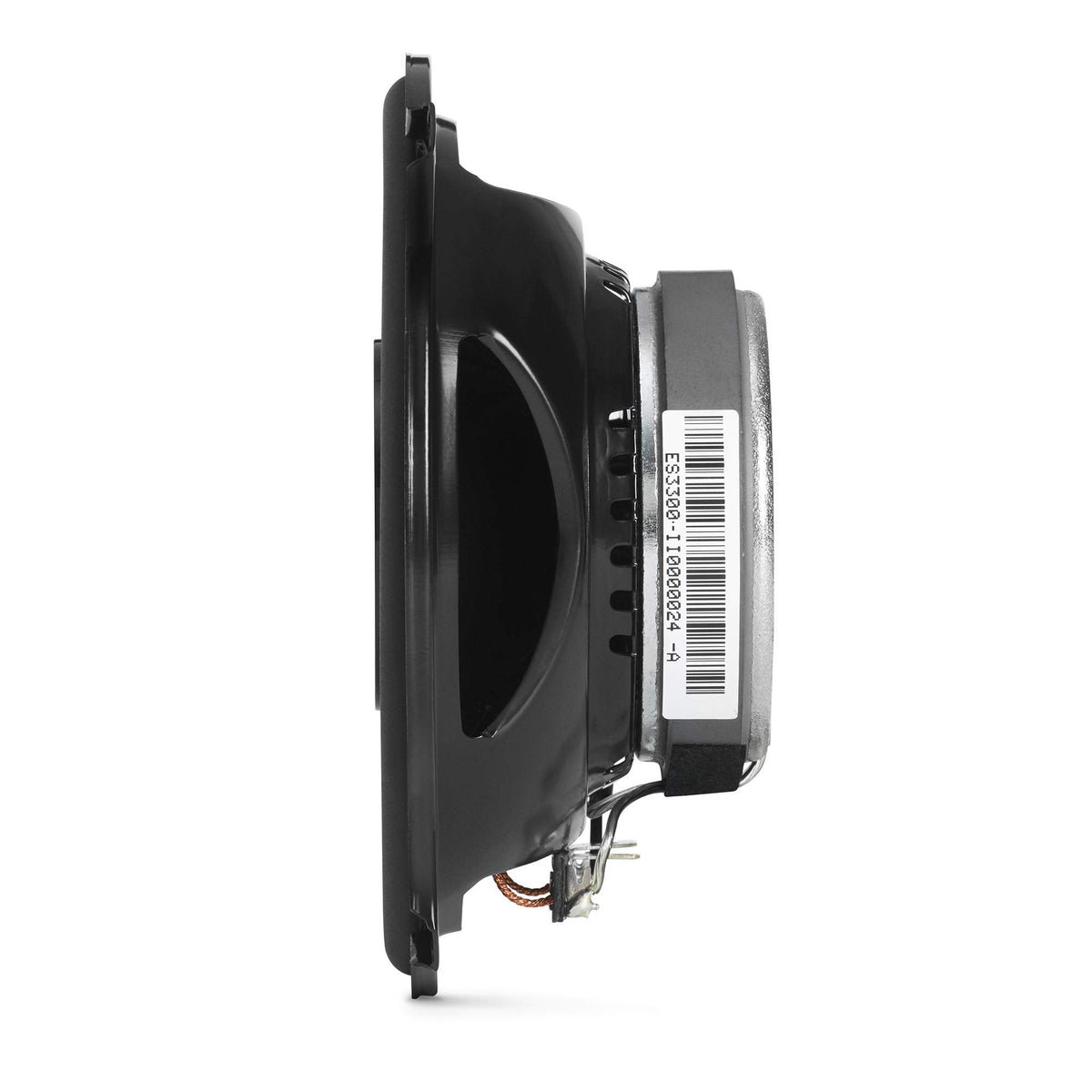

The Stage3 527F uses a vented basket frame that helps move heat away from the voice-coil area during operation. Its 129.0 mm overall diameter and 55.0 mm mounting depth should be checked against the vehicle's original speaker opening before purchase. It is well suited to a factory-speaker replacement project, whether powered by a compatible head unit or a properly matched external amplifier.

Key Features

• 5.25-Inch Coaxial Design: Combines woofer and tweeter in each speaker for straightforward full-range replacement.
• 40W RMS Handling: Supports 40 watts RMS and 120 watts peak per speaker.
• 3-Ohm Impedance: Designed to draw useful output from compatible factory and aftermarket systems.
• Plus One Polypropylene Cone: Adds cone area to support efficient midbass output.
• Vented Basket Frame: Helps dissipate heat from the motor and voice-coil area.
• No-Grille Configuration: Intended for factory locations using existing vehicle speaker covers.

Design & Installation

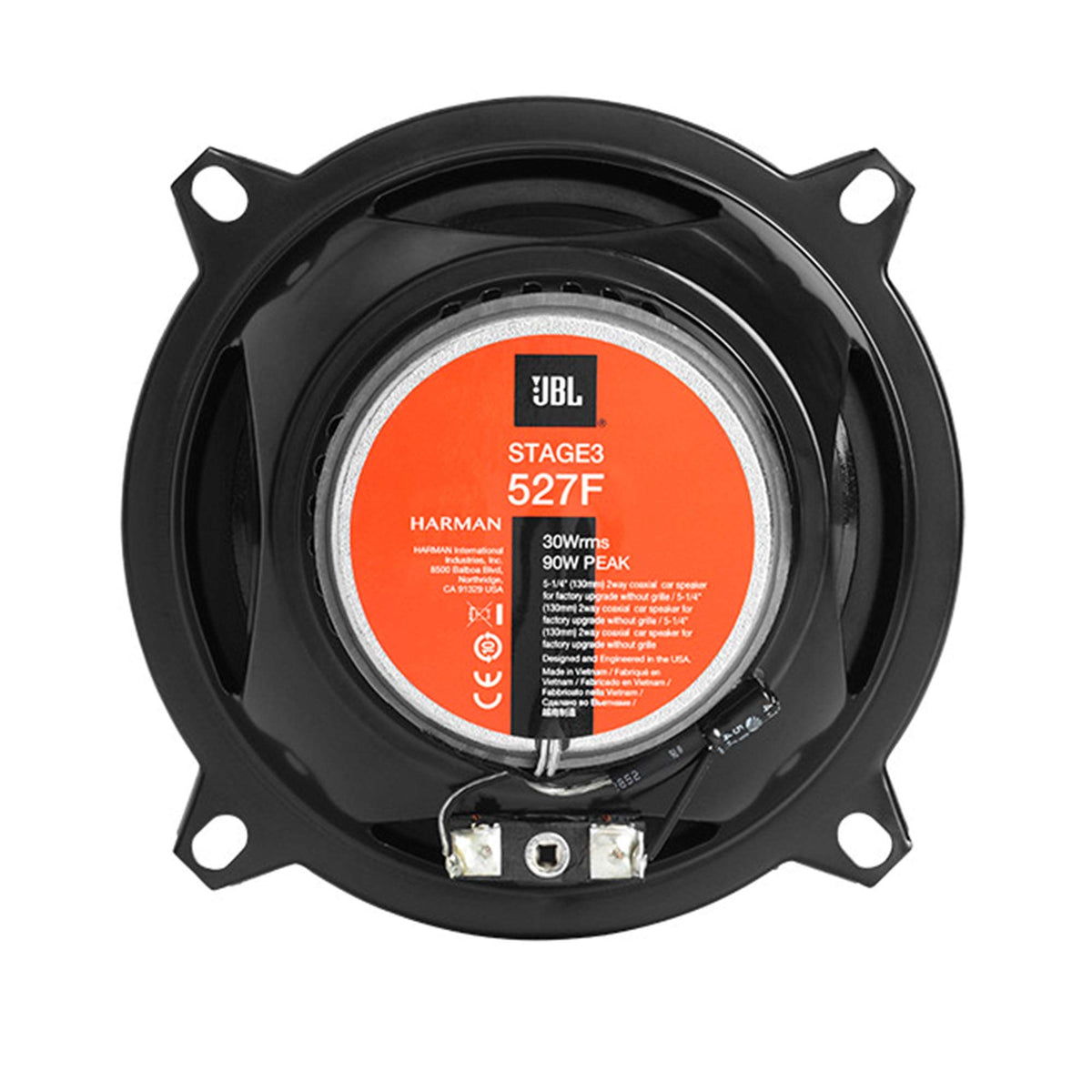

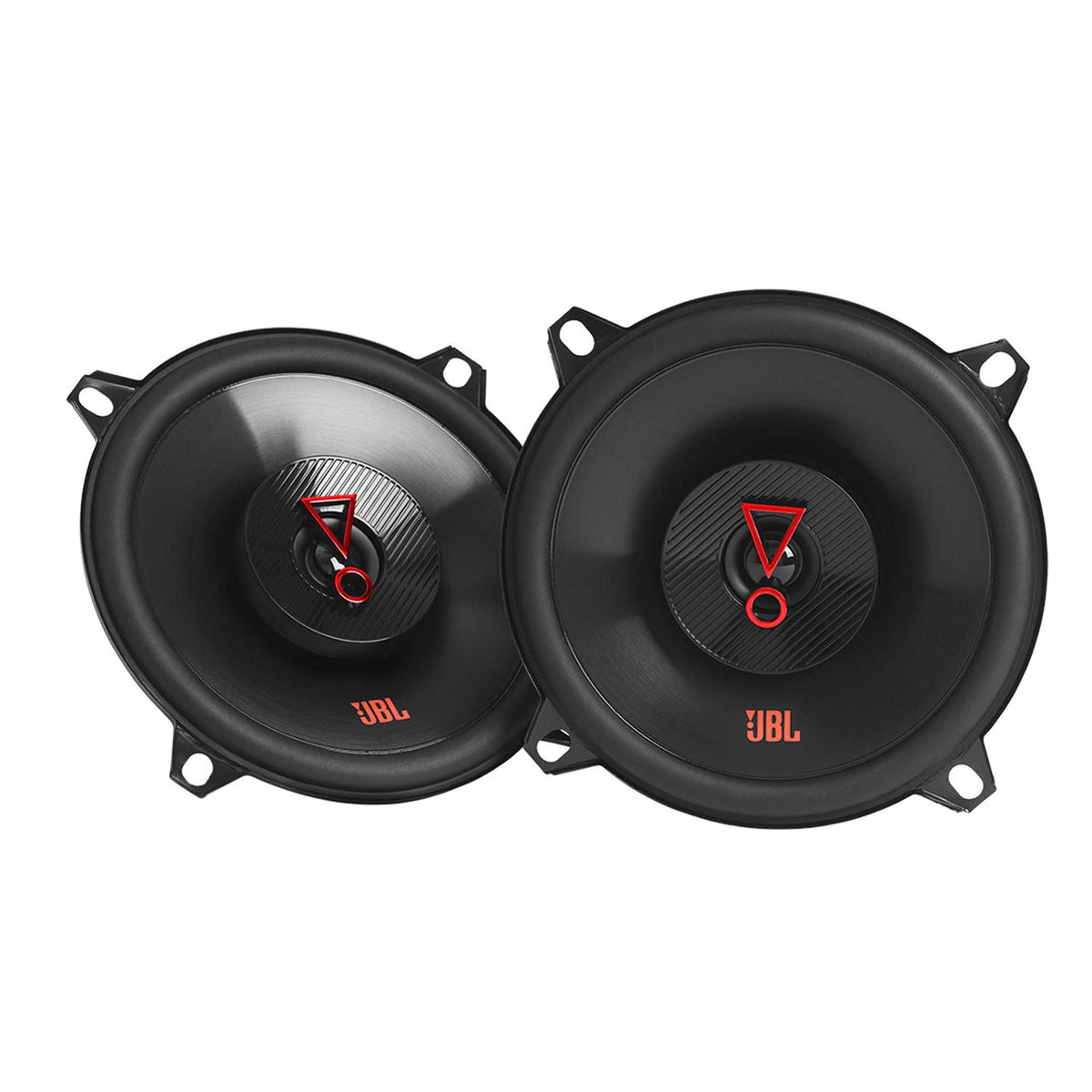

Each Stage3 527F uses a polypropylene Plus One woofer cone, coaxially mounted tweeter, and a rigid vented basket frame. The open basket structure is designed to promote voice-coil cooling, while the no-grille format keeps the assembly appropriate for installations behind an existing factory panel. JBL supplies this model as a matched pair of speakers.

Confirm that your vehicle accepts 5.25-inch speakers and verify the mounting opening, mounting depth, terminal clearance, and factory-panel clearance before installation. The published overall diameter is 129.0 mm, the mounting diameter is 113.6 mm, and the mounting depth is 55.0 mm. Use vehicle-specific mounting adapters, wiring harnesses, or fasteners when required, and match the speakers to an amplifier or radio that is compatible with a 3-ohm load.
