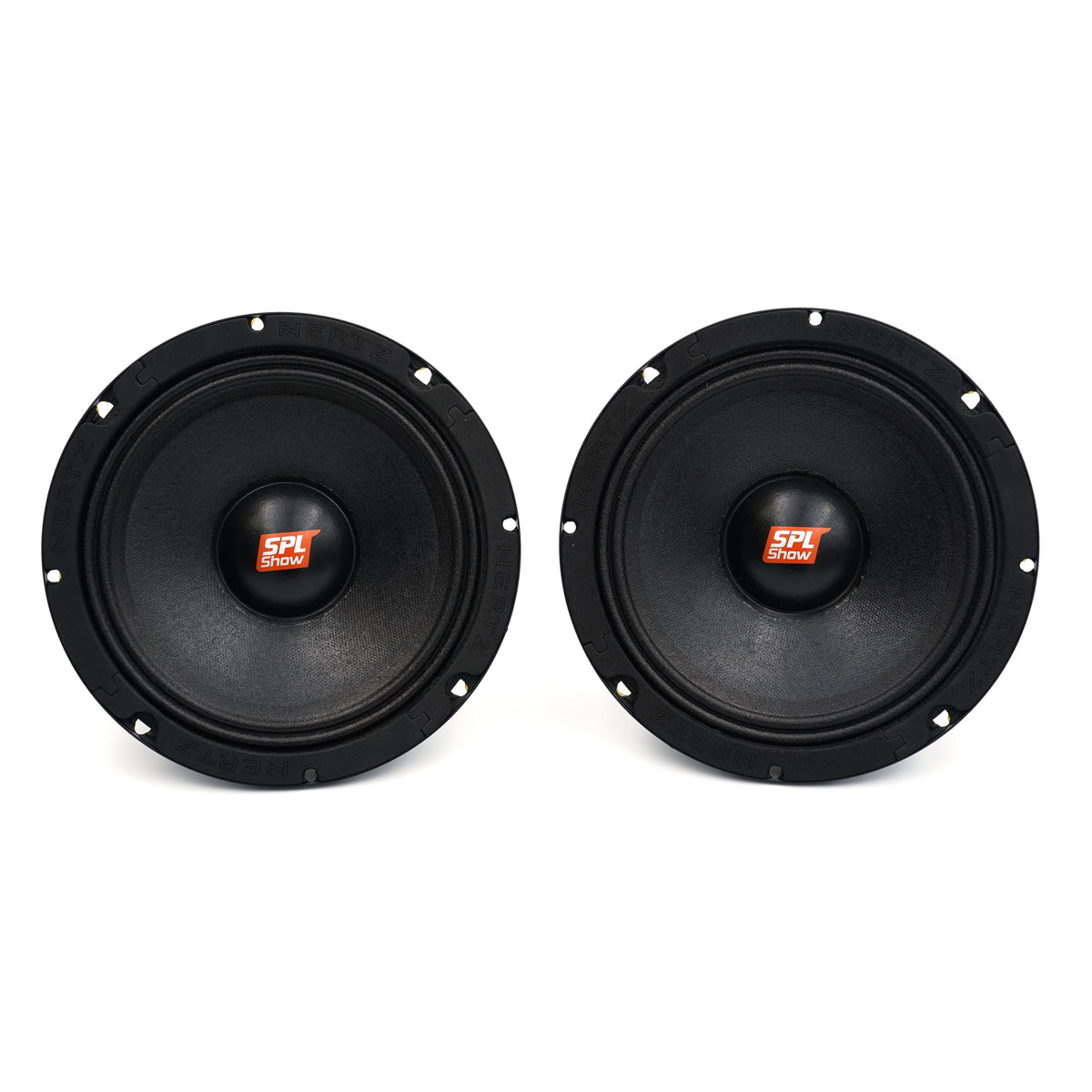

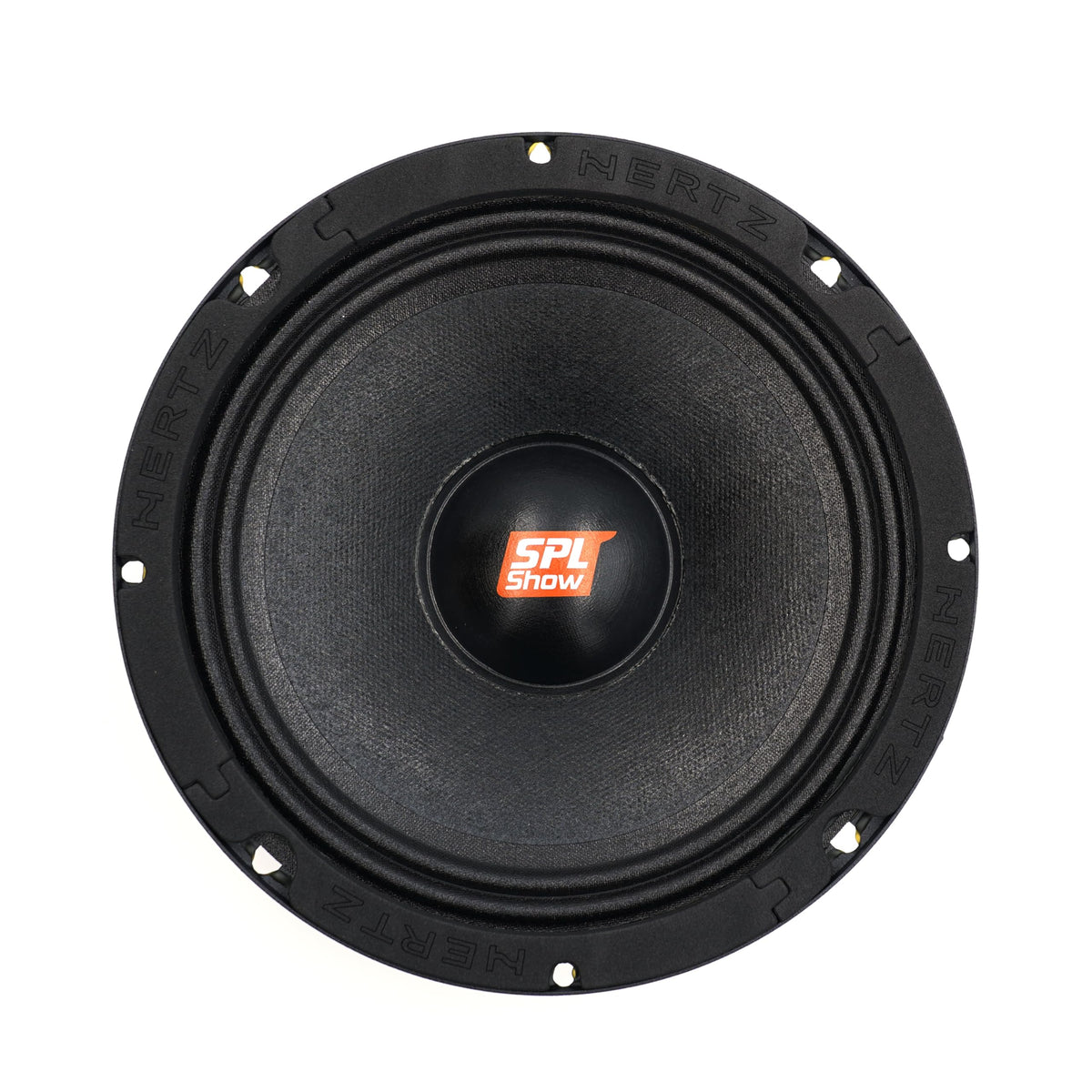

Hertz SV 165 NEO 6.5" SPL Midrange Speakers

The Hertz SV 165 NEO is a pair of 6.5-inch, 4-ohm SPL midrange drivers designed for high-output mobile audio systems. They are intended to reproduce the vocal and upper-midrange region where clarity and projection are especially important. Their compact format makes them suited to custom vehicle, motorcycle, and show-oriented installations where space can be limited.

With 150 watts continuous power handling and 97 dB sensitivity, the SV 165 NEO is built for systems using dedicated amplification. Its specified 100 Hz to 10 kHz response range supports midrange duties rather than full-range playback. A properly configured high-pass crossover helps protect the drivers from low-frequency content outside their intended operating range.

The driver uses a water-repellent pressed-paper cone, selected to balance responsive midrange reproduction with added resistance to moisture. Hertz also applies waterproofing and anti-UV treatment to the cone for outdoor-oriented applications. This makes the SV 165 NEO a practical option for motorcycles and exposed custom installations when installed appropriately.

A neodymium N38 H motor structure keeps the speaker compact and lightweight while supporting its high-output design. The 1.5-inch voice coil and 6.5 T·m motor force factor are part of a design focused on controlled, efficient midrange operation. The motor assembly receives cataphoresis treatment, and the lead wires are insulated to help resist oxidation.

The SV 165 NEO can be used as part of a multi-way active or passive system with separate tweeters and bass reinforcement. Its terminals and mounting holes are compatible with Harley-Davidson motorcycle applications, while its 4-ohm impedance suits many car-audio amplifiers. For best results, pair it with suitable amplification, a correctly selected crossover, and installation locations that provide secure mounting.

Key Features

• 6.5-Inch SPL Midrange: Focuses on strong vocal and midrange output in custom audio systems.
• 150W Continuous Handling: Supports use with appropriately matched external amplification.
• Neodymium N38 H Motor: Keeps the motor compact and reduces driver weight.
• Water-Repellent Paper Cone: Adds moisture resistance for outdoor-oriented installations.
• UV-Treated Cone: Helps resist discoloration from prolonged sun exposure.
• Harley-Davidson Compatibility: Uses compatible terminals and mounting-hole layout for applicable motorcycles.

Design & Installation

The SV 165 NEO combines a water-repellent pressed-paper cone with a neodymium magnet motor and a 38.6 mm voice coil. Its motor unit is treated with cataphoresis, while insulated lead wires help limit oxidation exposure. Each driver weighs 0.9 kg (1.98 lb), supporting installations where reduced speaker weight is useful.

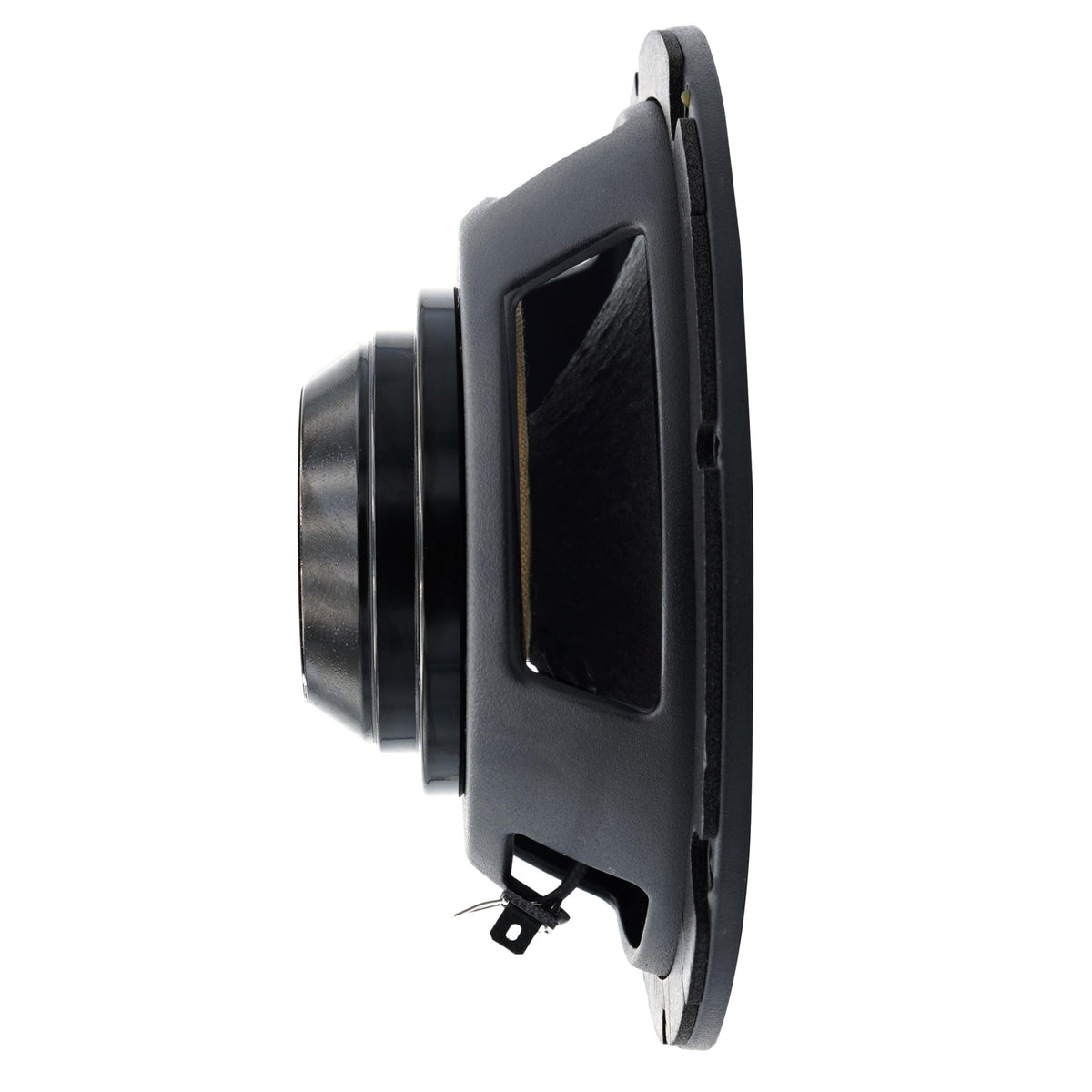

Confirm available mounting clearance before installation: the speaker has a 167.2 mm outside diameter, a 143.3 mm mounting-hole diameter, a 65.2 mm total depth, and a 57.1 mm mounting depth. Use a suitable external amplifier and a high-pass crossover; a crossover is recommended and is not included. The specified power rating is based on high-pass operation at 200 Hz with a 12 dB/octave slope.
