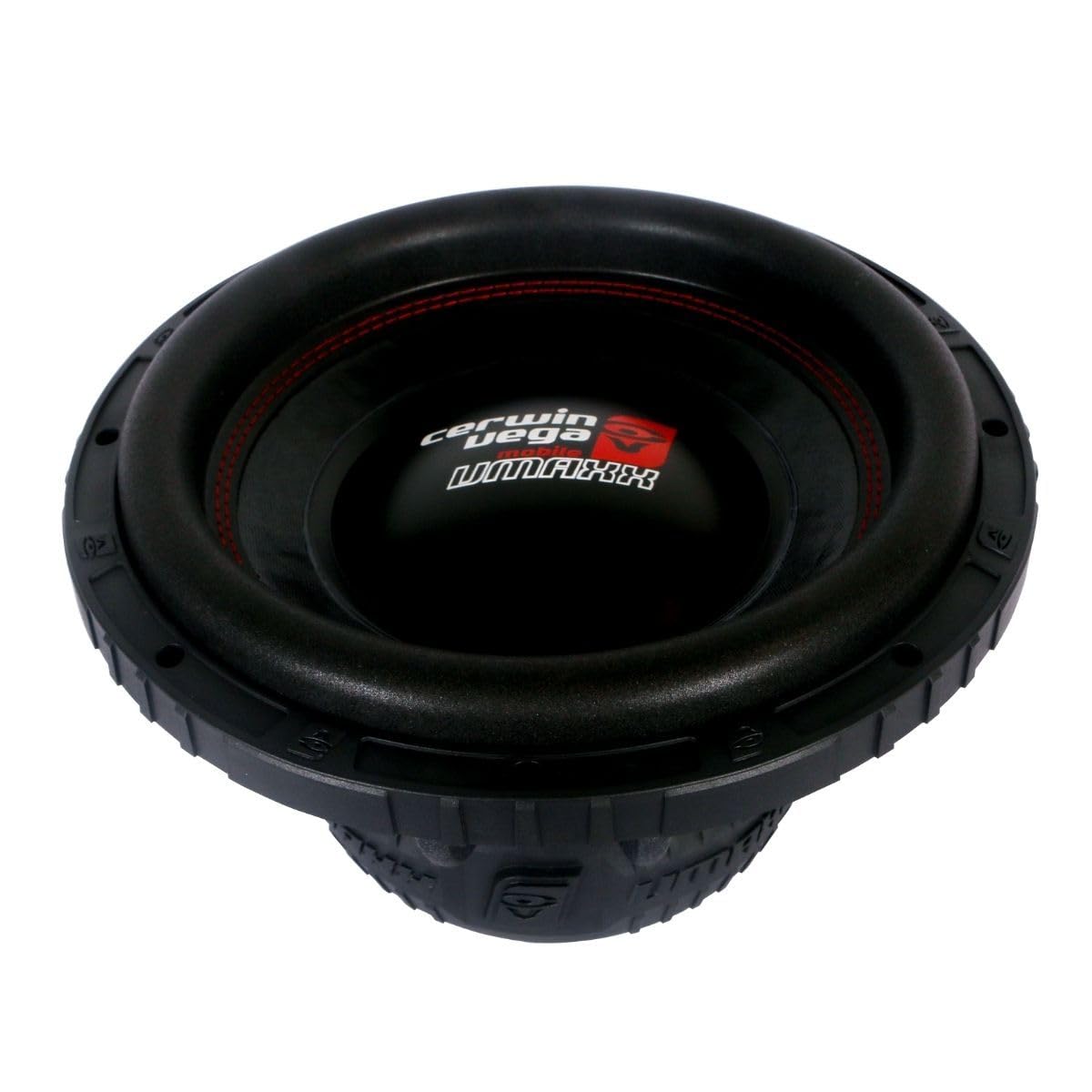

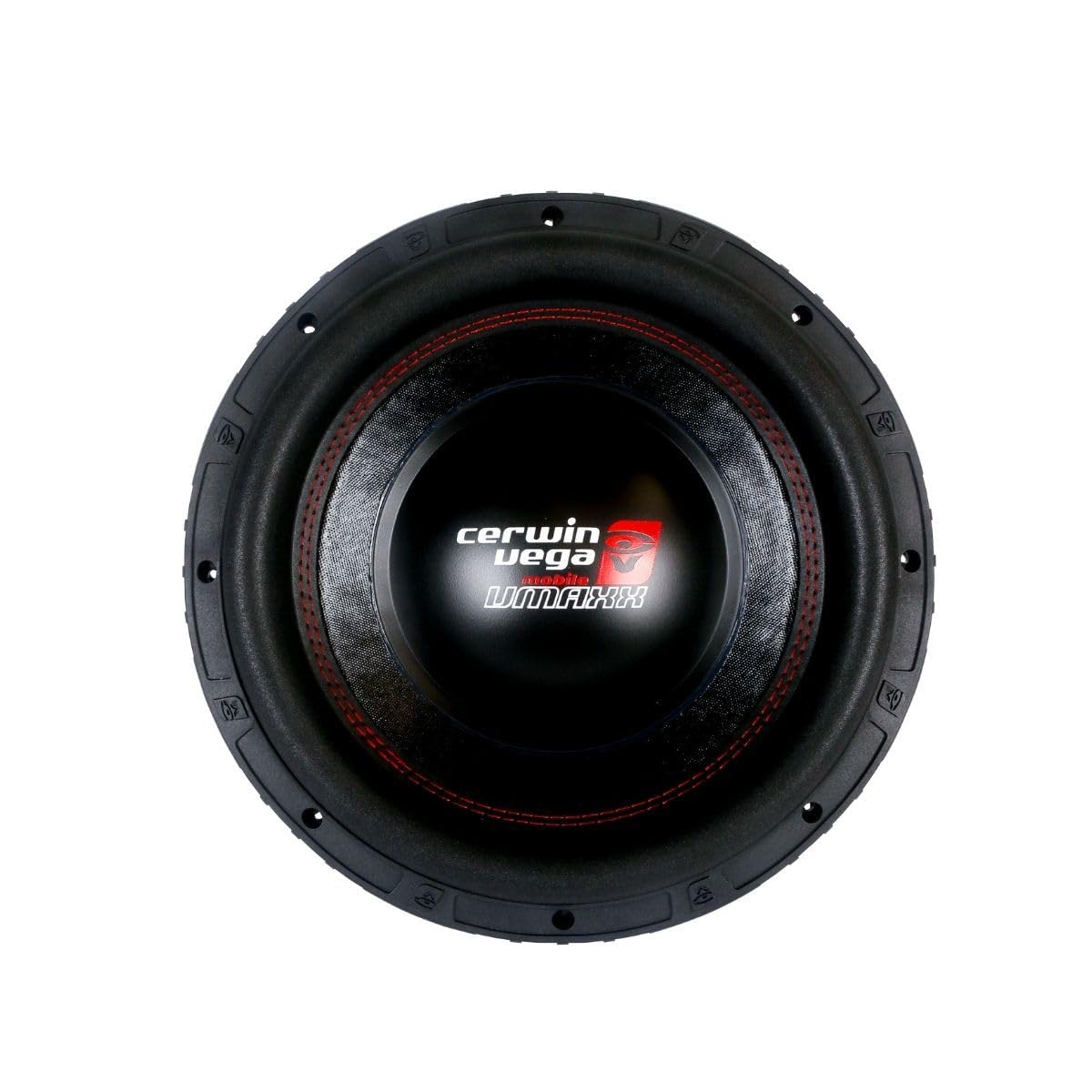

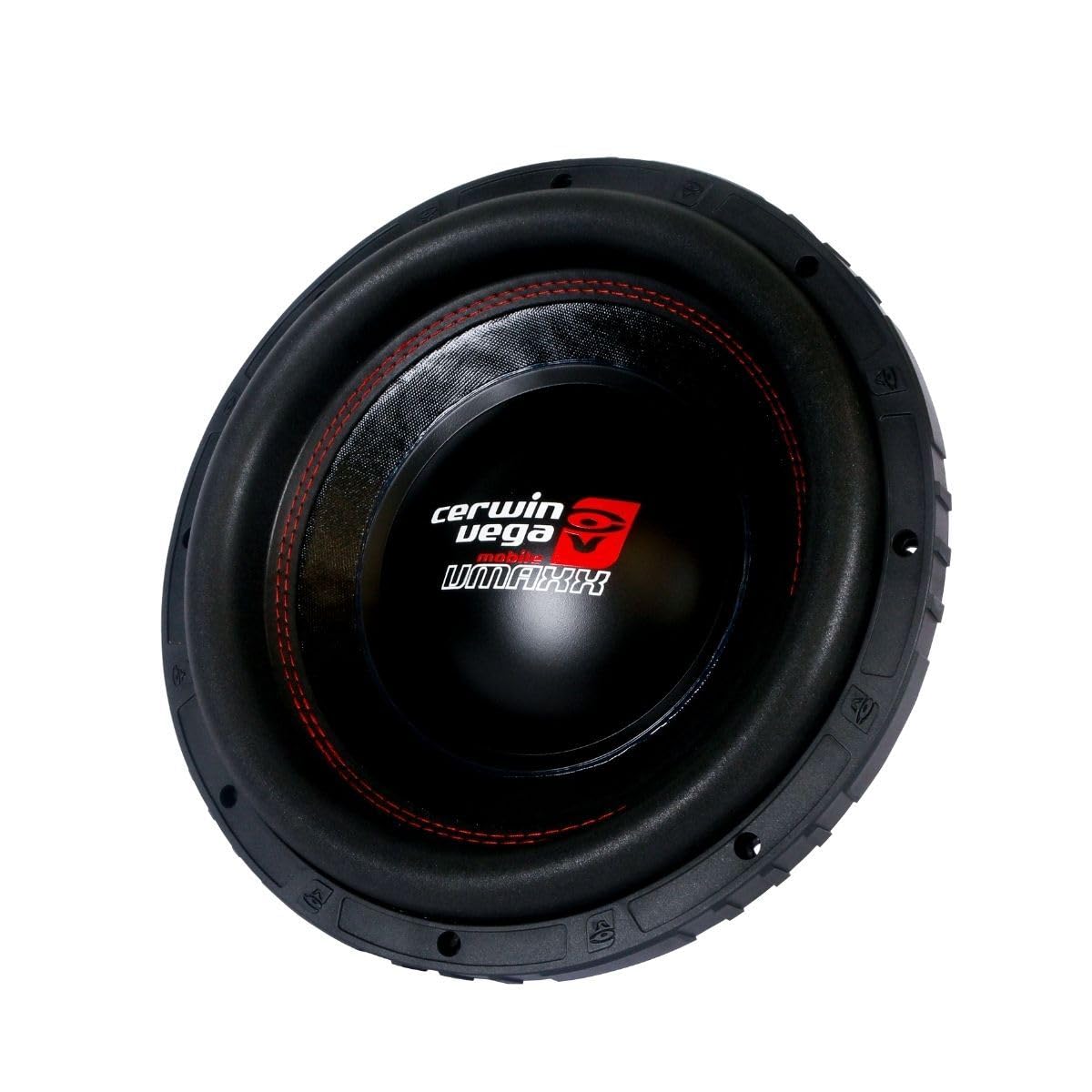

Cerwin-Vega CER-VMAX10D4 10" DVC Car Subwoofer

The Cerwin-Vega VMAX10D4 is a 10-inch dual-voice-coil car subwoofer for adding dedicated low-frequency output to a vehicle audio system. It is a passive driver, so it is intended for use with a separate compatible amplifier and subwoofer enclosure. Its dual 4-ohm coils provide wiring flexibility for system planning.

With an 800-watt RMS power rating and 1,600-watt maximum rating, this subwoofer is designed for systems that need substantial bass capacity from a 10-inch driver. The 15 mm Xmax specification supports meaningful cone travel for low-frequency reproduction. Its 84.4 dB sensitivity and 36.9 Hz free-air resonance are useful reference points when matching the driver and enclosure to the desired response.

The VMAX10D4 uses a treated semi-pressed pulped-paper cone, treated-foam surround, and oversized spider. These components support controlled movement while the motor system is engineered for high-excursion operation. A shorting ring and Klippel DA optimized motor and suspension symmetry are included to support lower distortion and consistent operation.

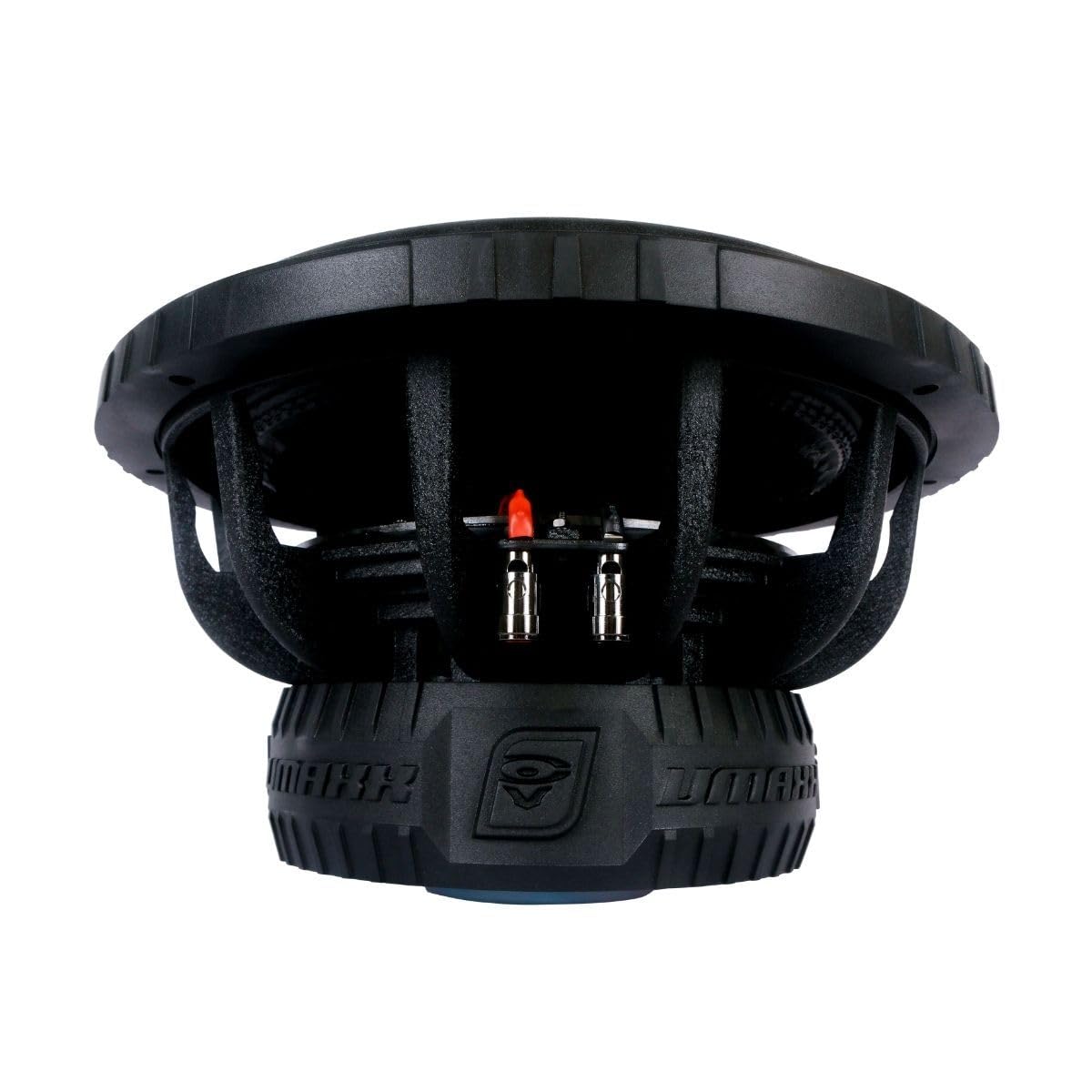

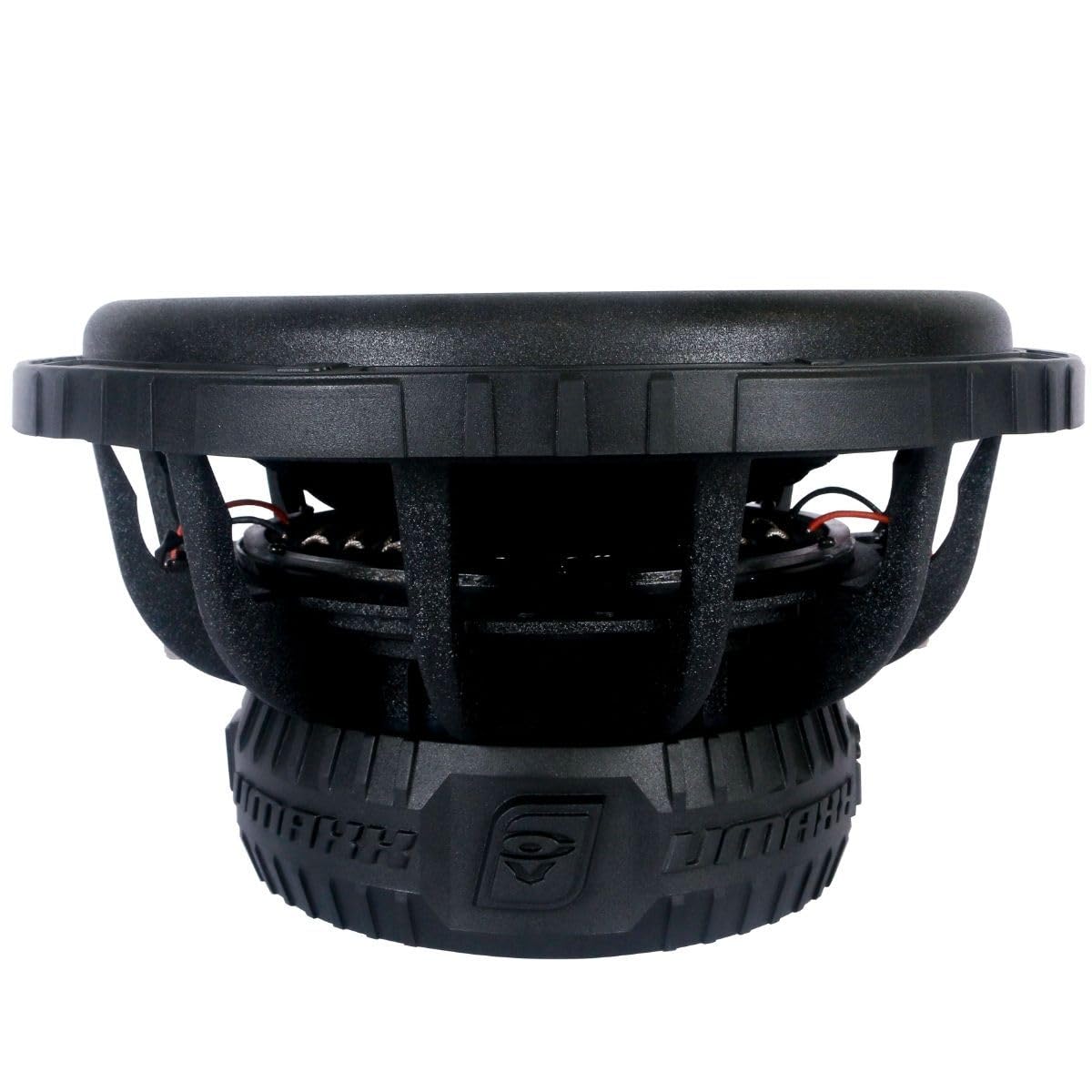

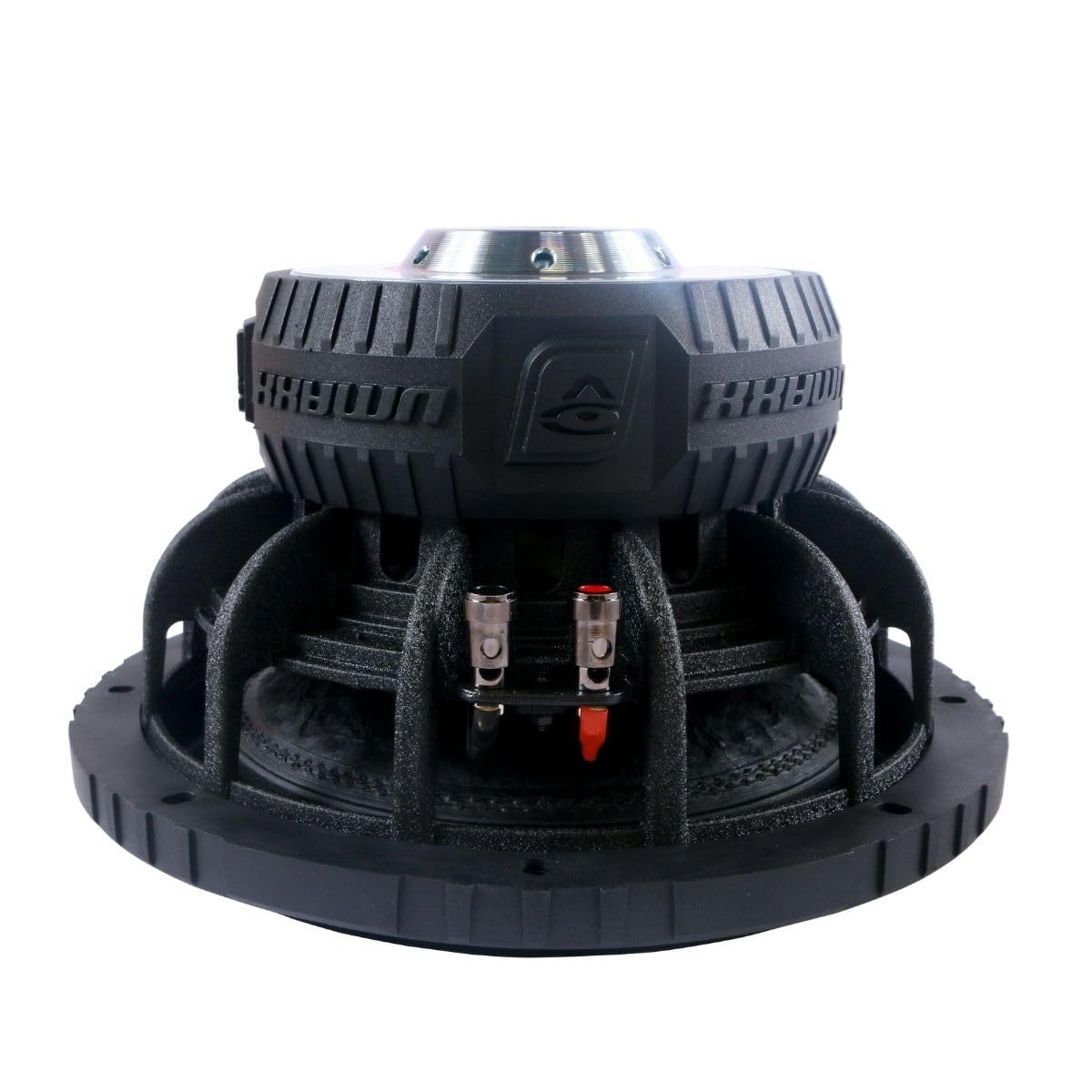

Its cast-aluminum basket provides a rigid foundation for the driver assembly, while the elevated motor structure is designed to aid cooling. The black-coated voice coil is intended to improve thermal capability during higher-power use. Oversized polished black-chrome terminals provide connection points for the two voice coils.

This subwoofer can be installed in either a sealed or ported enclosure according to the manufacturer’s enclosure guidance. A sealed design is suited to a compact, controlled-bass system, while the recommended ported design provides a larger enclosure option with a slot port. It is a practical choice for a custom car-audio bass upgrade when amplifier impedance, enclosure volume, and vehicle space are planned together.

Key Features

• 800W RMS Handling: Supports higher-output bass systems when paired with an appropriately rated amplifier.
• Dual 4-Ohm Voice Coils: Allows 2-ohm parallel or 8-ohm series wiring configurations.
• 15 mm Xmax: Provides capacity for extended cone movement at low frequencies.
• Cast-Aluminum Basket: Adds a rigid platform for the moving assembly.
• Shorting Ring: Helps reduce distortion from the motor system.
• Elevated Motor Cooling: Supports heat management during demanding operation.

Design & Installation

The VMAX10D4 combines a treated paper cone, treated-foam surround, oversized spider, and heavy-duty cast-aluminum frame. Its ferrite motor uses a polished bumped backplate, black-coated voice coil, and elevated cooling-oriented structure. The 10-inch driver has an 11.06-inch overall diameter and a 6.89-inch magnet diameter.

Confirm a 9.47-inch mounting cutout and at least 5.39 inches of mounting depth before installation. The manufacturer recommends a 1.0 cu. ft. net sealed enclosure or a 1.25 cu. ft. net ported enclosure, both calculated with 3/4-inch MDF. Match the amplifier to the final 2-ohm or 8-ohm coil wiring load, and use a subsonic filter of at least 30 Hz with the recommended vented enclosure.
