Cerwin-Vega V65C 6.5" 2-Way Component Speaker Set

The Cerwin-Vega V65C is a 6.5-inch, 2-way component speaker set designed to replace or upgrade factory vehicle speakers. Its separate woofer and tweeter layout helps place high frequencies where they are most useful in the cabin while retaining a conventional 6.5-inch woofer mounting format. It is intended for listeners who want a more detailed front-stage upgrade than a typical coaxial speaker arrangement.

This system uses a 6.5-inch woofer paired with a 1-inch silk dome tweeter. The component configuration is well suited to front-door installations where the woofer can remain low in the door and the tweeter can be mounted higher on a door panel, dash, or rear deck. An included passive crossover directs the appropriate frequencies to the woofer and tweeter.

With 140 watts RMS and 420 watts maximum power handling, the V65C is specified for systems using a compatible 4-ohm factory or aftermarket audio source. Its 88 dB sensitivity and 89 Hz to 20 kHz frequency response describe a balanced full-range role, with lower bass support best handled by a dedicated subwoofer when deeper low-frequency output is desired. The 92 Hz free-air resonance is also specified by the manufacturer.

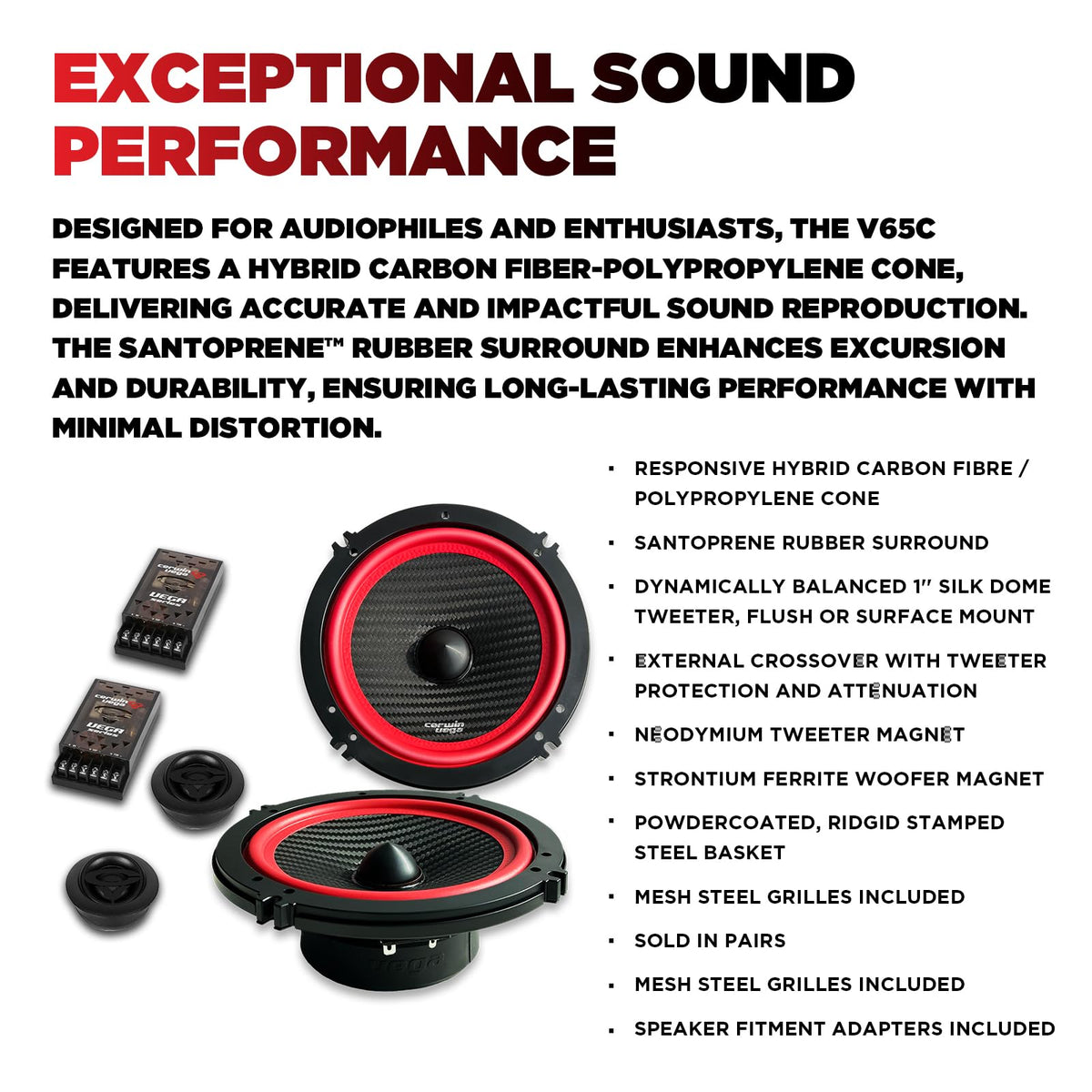

The woofer uses a hybrid carbon fiber/polypropylene cone and a Santoprene rubber surround. Cerwin-Vega pairs this with a strontium ferrite woofer magnet and a powder-coated, rigid stamped-steel basket. The 1-inch dynamically balanced silk dome tweeter uses a neodymium magnet to reproduce upper-frequency detail.

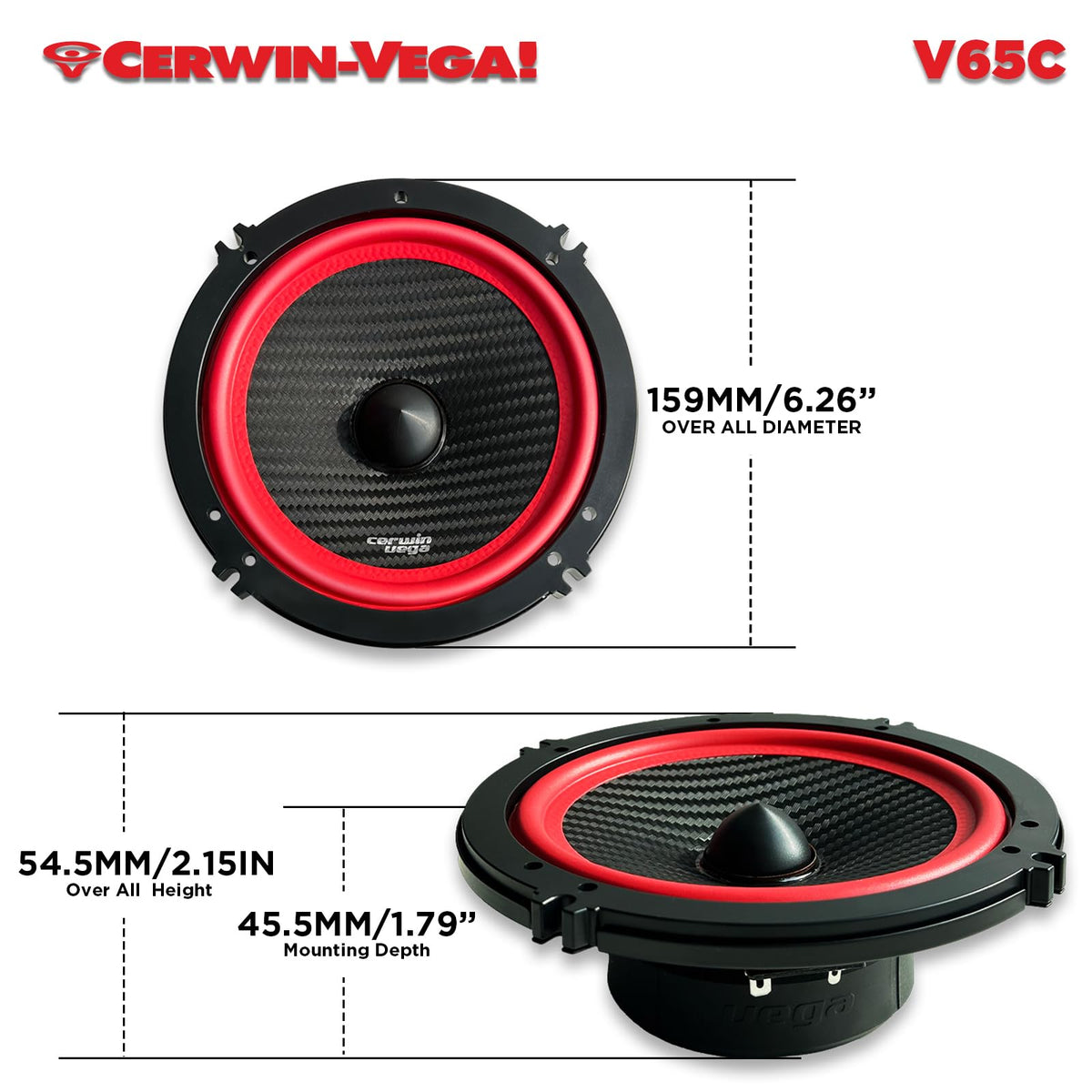

The V65C fits a broad range of custom and replacement speaker projects when vehicle clearance is verified before installation. Its 4.88-inch cutout requirement, 1.79-inch mounting depth, and 6.26-inch overall woofer diameter provide useful fitment references. Mesh steel grilles and speaker fitment adapters are included for added installation flexibility.

Key Features

• 2-Way Component System: Separates woofer and tweeter placement for a more configurable installation.
• 6.5-Inch Woofer: Fits the common 6.5-inch speaker category with verified mounting dimensions.
• 1-Inch Silk Dome Tweeter: Handles high frequencies with a dynamically balanced silk dome design.
• Hybrid Cone: Carbon fiber and polypropylene construction supports accurate midrange and bass reproduction.
• Passive Crossover: Routes signals between the woofer and tweeter and includes tweeter protection.
• Included Installation Accessories: Mesh steel grilles and speaker fitment adapters are supplied.

Design & Installation

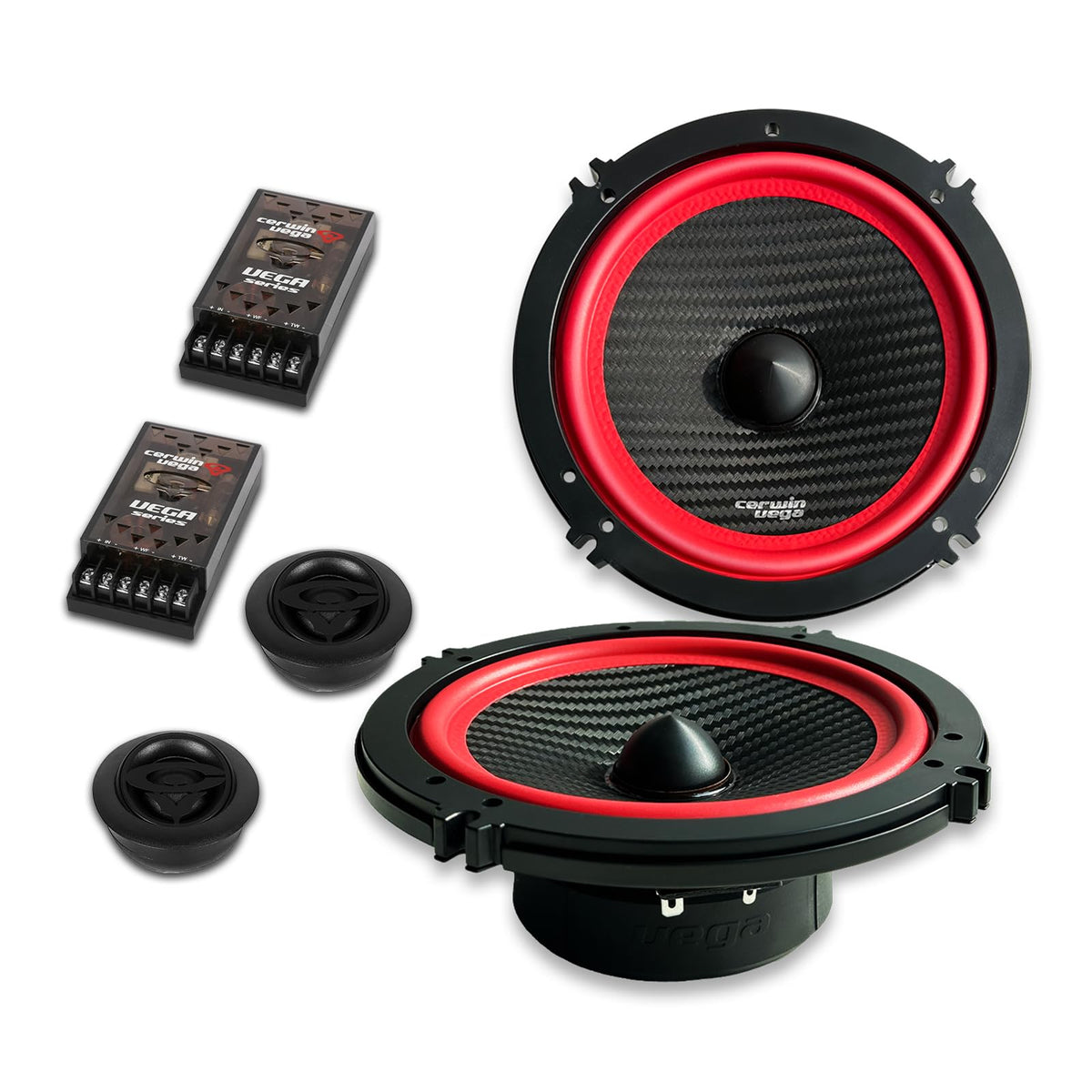

The V65C combines a hybrid carbon fiber/polypropylene woofer cone with a Santoprene rubber surround, strontium ferrite woofer magnet, and powder-coated stamped-steel basket. Its silk dome tweeter uses a neodymium magnet, while the component system uses an outboard passive crossover with tweeter protection. The set is sold as a pair and includes mesh steel grilles and speaker fitment adapters.

Confirm the vehicle's available speaker opening, mounting depth, and window clearance before installation. The woofer requires a 4.88-inch cutout and 1.79 inches of mounting depth; its overall diameter is 6.26 inches. For flush tweeter mounting, the installation guide specifies a 1.85-inch opening and at least 1 inch of clearance behind the panel; wire the amplifier or source to the crossover input, then connect its midrange and tweeter outputs with correct polarity.
