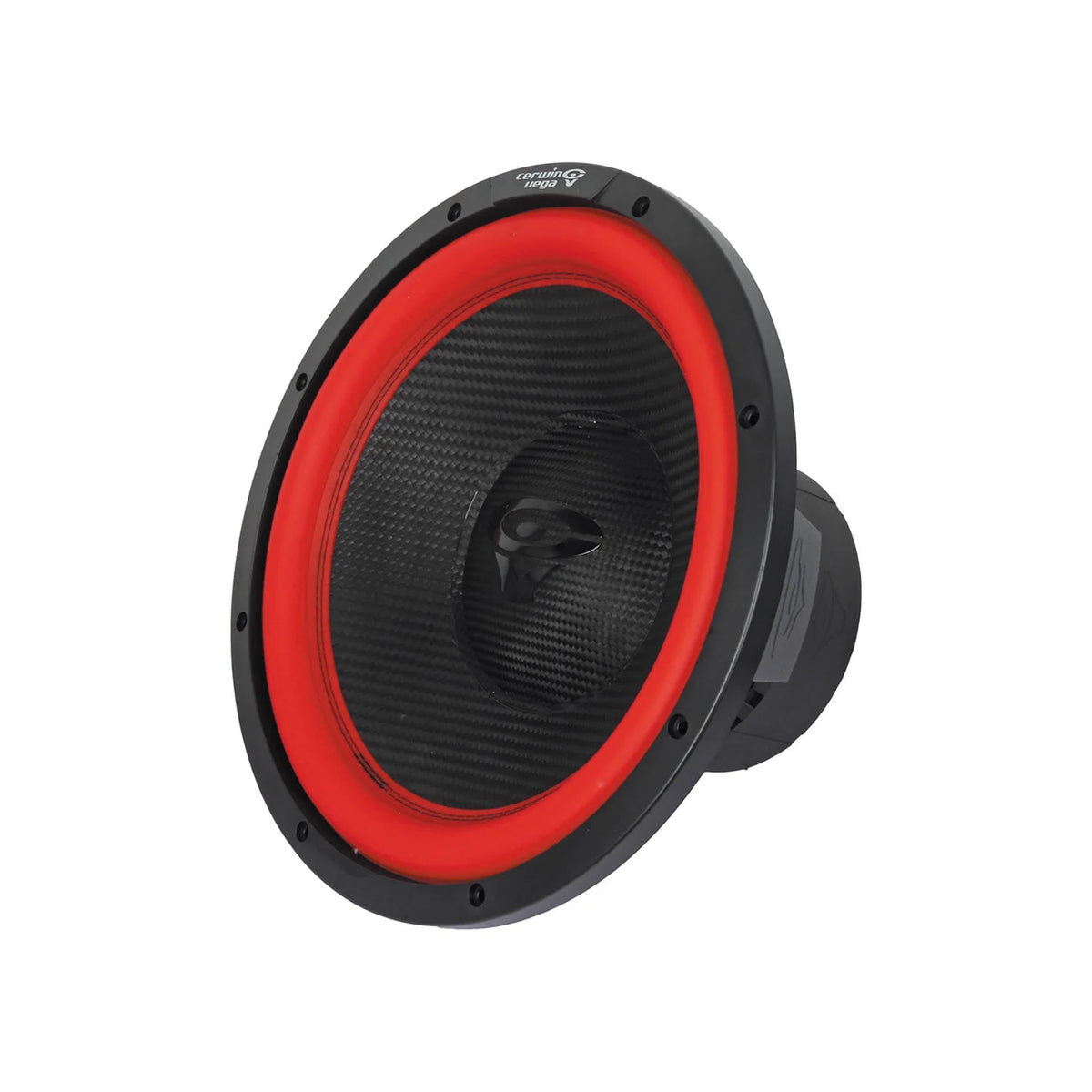

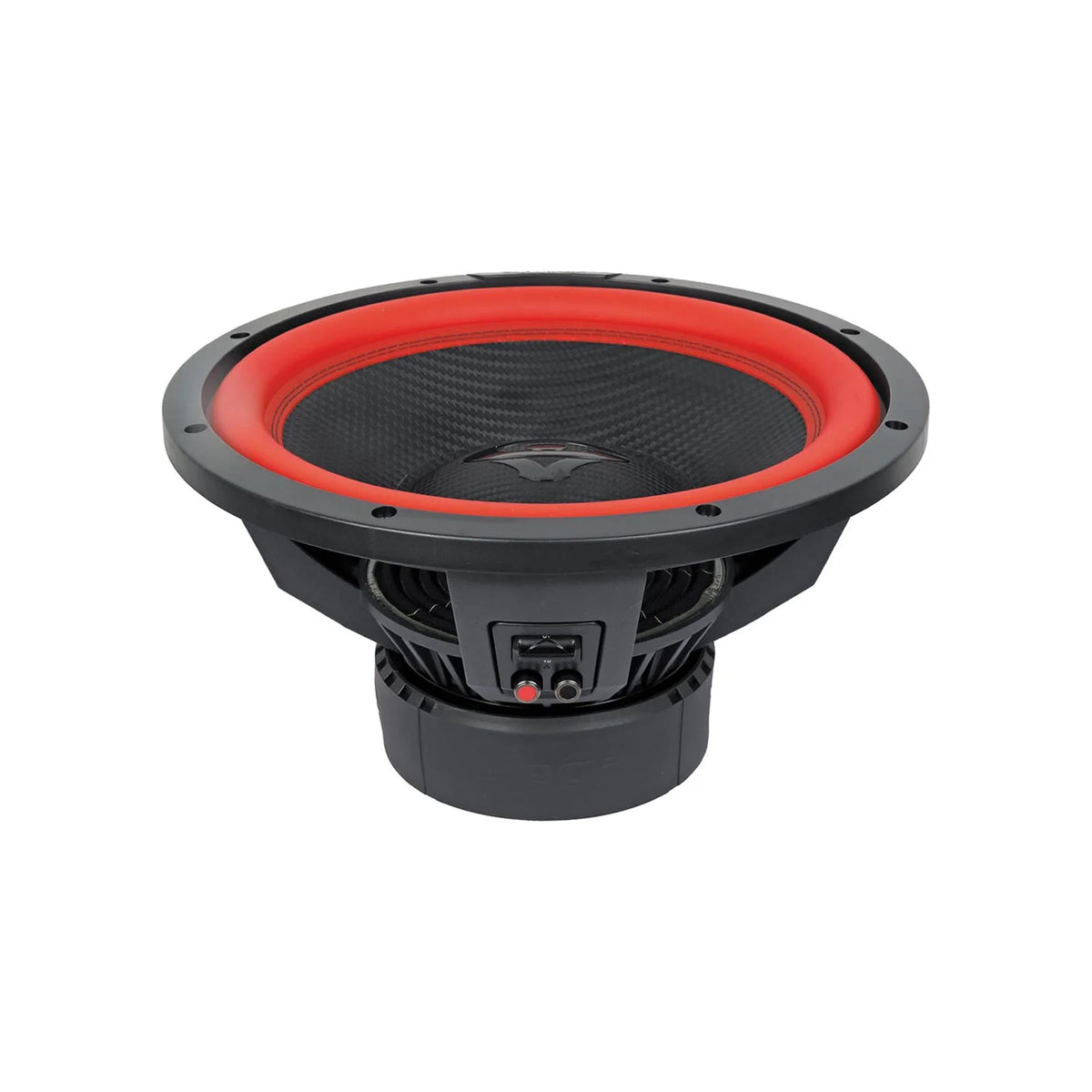

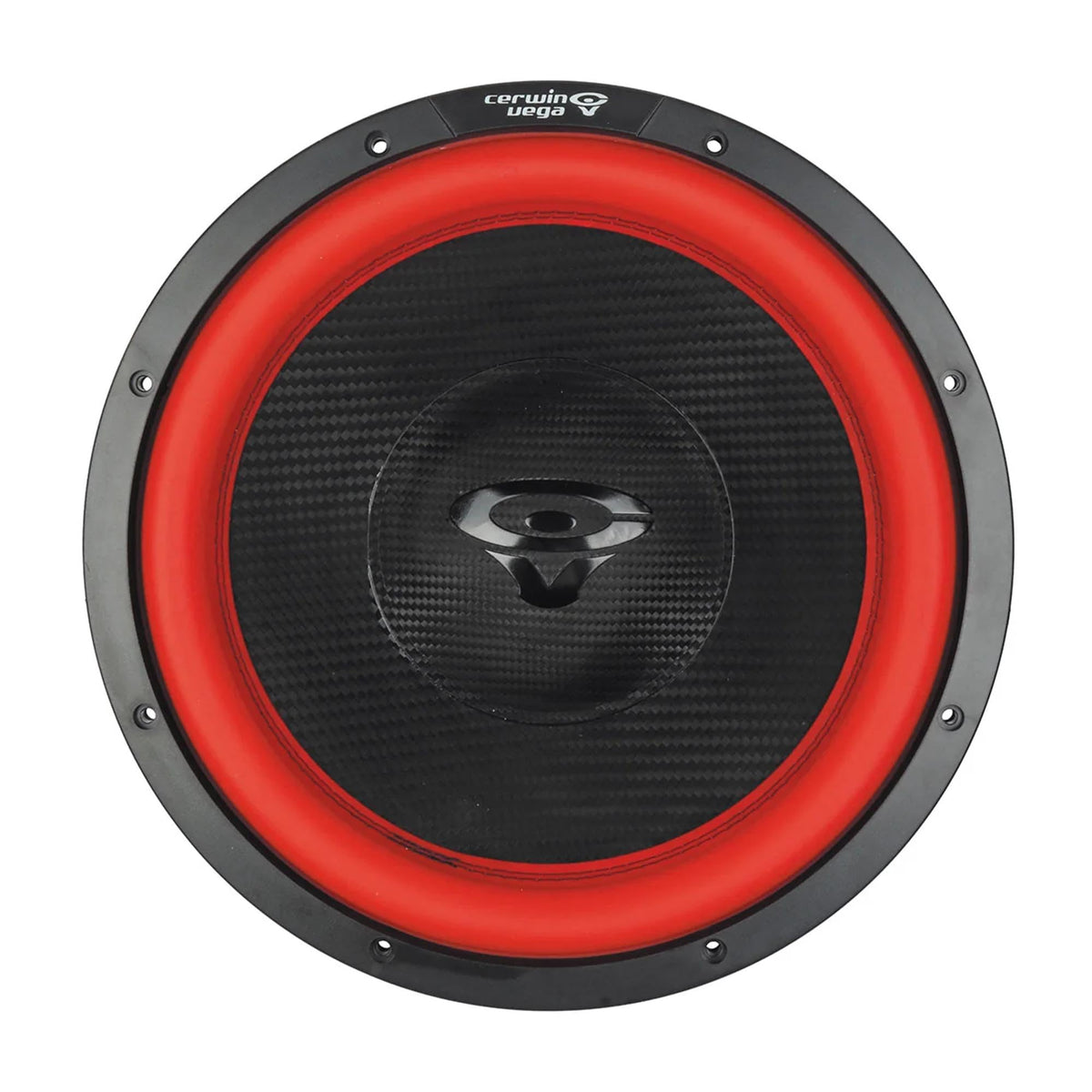

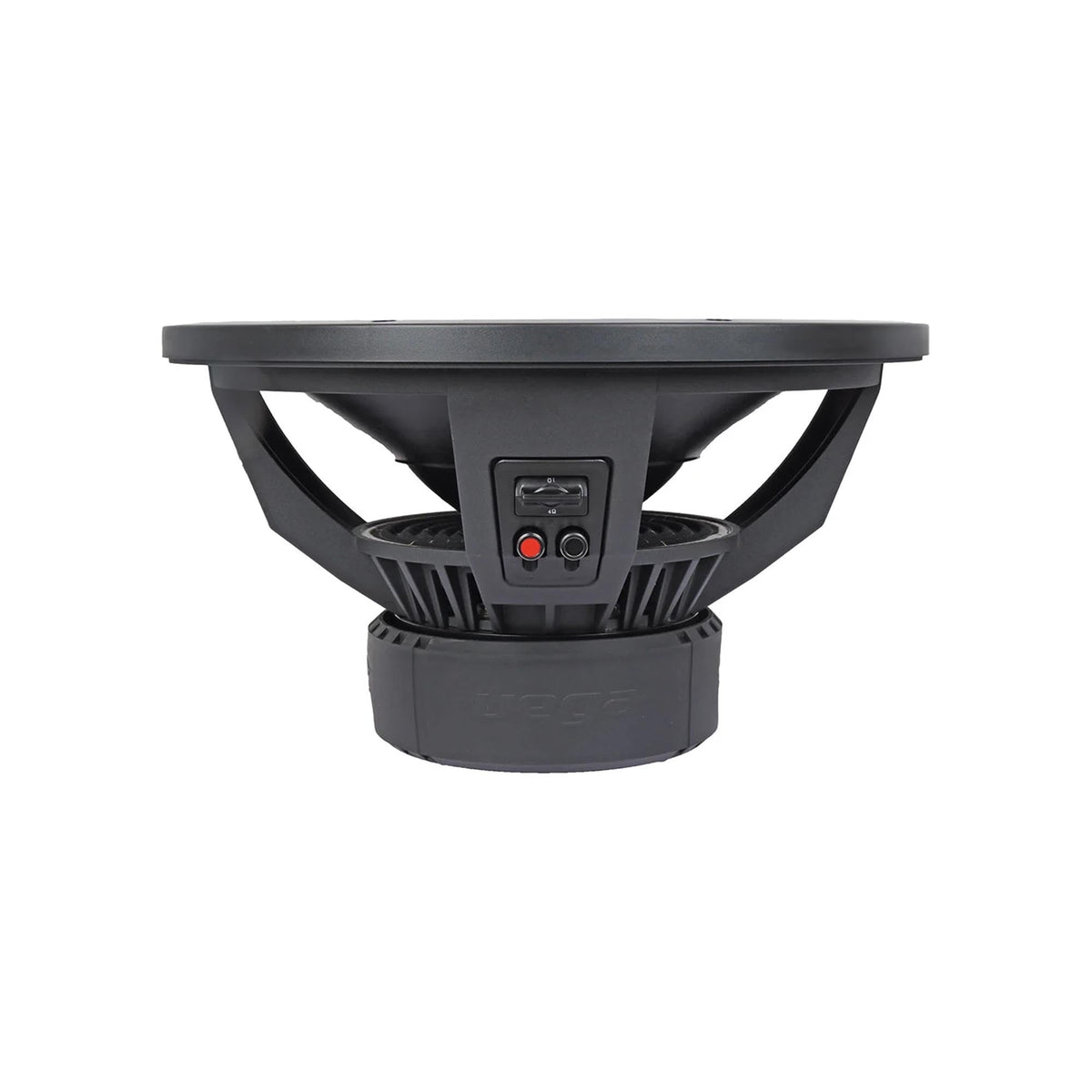

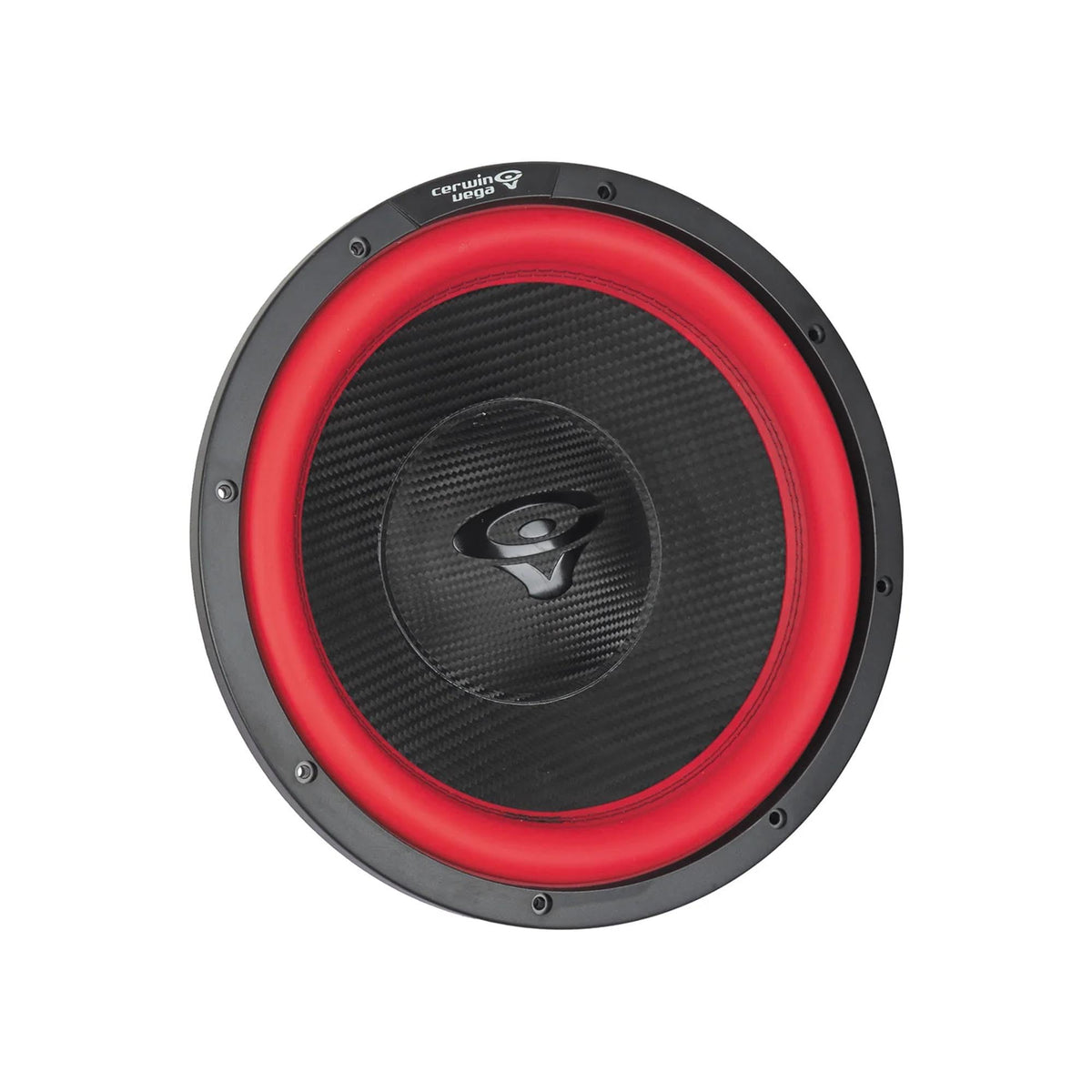

Cerwin Vega CER-V10DV4 10" Dual 4-Ohm Voice Coil Subwoofer

The Cerwin-Vega CER-V10DV4 is a 10-inch VEGA Series car audio subwoofer built for systems that need dedicated low-frequency output. Its dual 4-ohm voice coil design supports flexible amplifier matching while retaining the compact footprint of a 10-inch driver. It is intended for use with an external amplifier and a properly designed subwoofer enclosure.

This model suits listeners upgrading a factory system as well as builders planning a custom bass-focused installation. With 1,000 watts RMS and 3,000 watts maximum power handling, it is designed for high-power car audio applications. The 86 dB sensitivity specification and 47 Hz free-air resonance provide useful data for system and enclosure planning.

The CER-V10DV4 uses a hybrid carbon fiber and polypropylene diaphragm construction for a balance of rigidity and responsiveness. Its Santoprene surround is designed to support cone travel during demanding bass passages. The result is controlled low-frequency reproduction for music systems that prioritize substantial bass output.

A ferrite motor structure provides the magnetic drive behind the woofer, while the 3-inch voice coil is built for the model's stated power handling. The cast aluminum basket provides a rigid mounting structure for the driver assembly. Cerwin-Vega also specifies a single-terminal impedance selector to simplify system configuration.

The CER-V10DV4 can serve as the foundation of a single-subwoofer setup or as part of a larger multi-subwoofer system. Its 4+4-ohm dual-voice-coil configuration gives installers options when matching the load to a compatible amplifier. Confirm enclosure volume, available mounting clearance, and final amplifier impedance before installation.

Key Features

• 10-Inch Subwoofer: Adds dedicated low-frequency output to a vehicle audio system.
• Dual 4-Ohm Voice Coils: Provides flexibility when matching a compatible amplifier.
• 1,000W RMS Handling: Supports use in high-power amplified bass systems.
• Hybrid Composite Diaphragm: Combines carbon fiber and polypropylene construction.
• Santoprene Surround: Supports cone movement and long-term durability.
• Single-Terminal Impedance Selector: Helps streamline system configuration during installation.

Design & Installation

The CER-V10DV4 combines a cast aluminum basket, ferrite motor, 3-inch voice coil, and Santoprene surround. Its diaphragm uses carbon fiber and polypropylene materials, and the driver has an overall diameter of 10.89 inches. The subwoofer requires a mounting depth of 5.94 inches and a 9.17-inch cutout.

Use this passive subwoofer with an external amplifier matched appropriately to its dual 4-ohm voice coils and stated 1,000-watt RMS power handling. Plan the enclosure and wiring configuration before mounting, and verify that the 6.69-inch overall height will clear surrounding vehicle structures. The manufacturer lists an integrated impedance selector, but amplifier compatibility should still be confirmed before final wiring.
