Audison APBMWK4E 4" BMW-Mini 2-Way Component Speakers
- 100 mm 4-inch two-way component system
- 50 W continuous, 100 W peak
- 4-ohm BMW-MINI Plug & Play design
- Water-repellent pressed-paper midrange cone
- 29 mm Tetolon tweeter included
Dealer pricing
Sign in to see your tier price and build a quote.
Product Info
| Brand | AUDISON |
|---|---|
| Model / SKU | APBMWK4E |
| UPC | 8018823124126 |
| Availability | In stock and ready to quote |

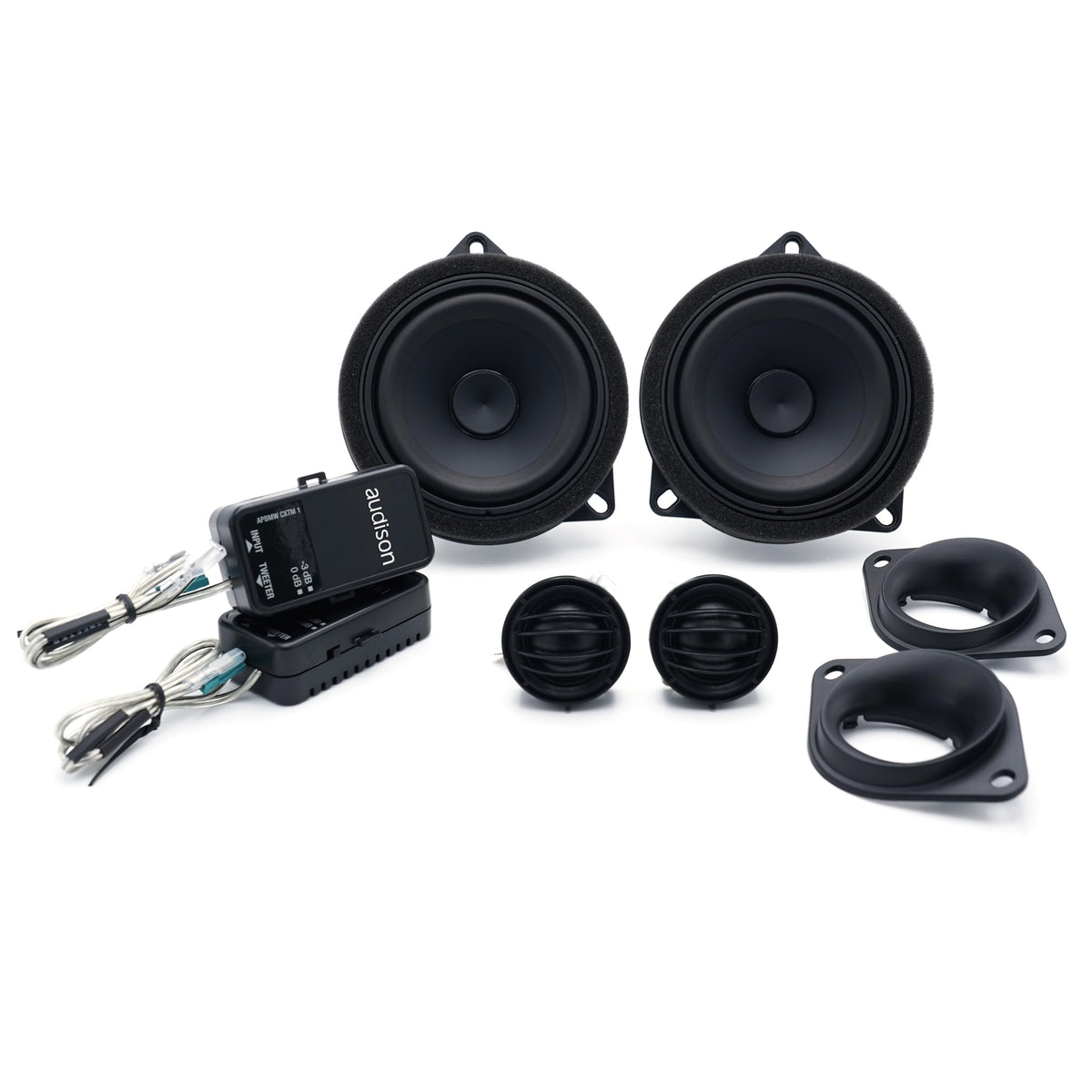

The Audison APBMW K4E is a 4-inch, two-way component speaker kit engineered for select BMW and MINI vehicles with factory two-way audio systems. It combines a 100 mm midrange driver, a separate 29 mm tweeter, and a dedicated crossover network. The kit is designed around BMW-MINI compatible mounting and Plug & Play connections.
This system is intended for owners replacing factory front mid-high speakers while retaining an OEM-style installation approach. Its LargeBasket configuration uses an aluminum die-cast basket designed for compatible BMW-MINI mounting locations. Vehicle-specific fitment should be verified before purchase.

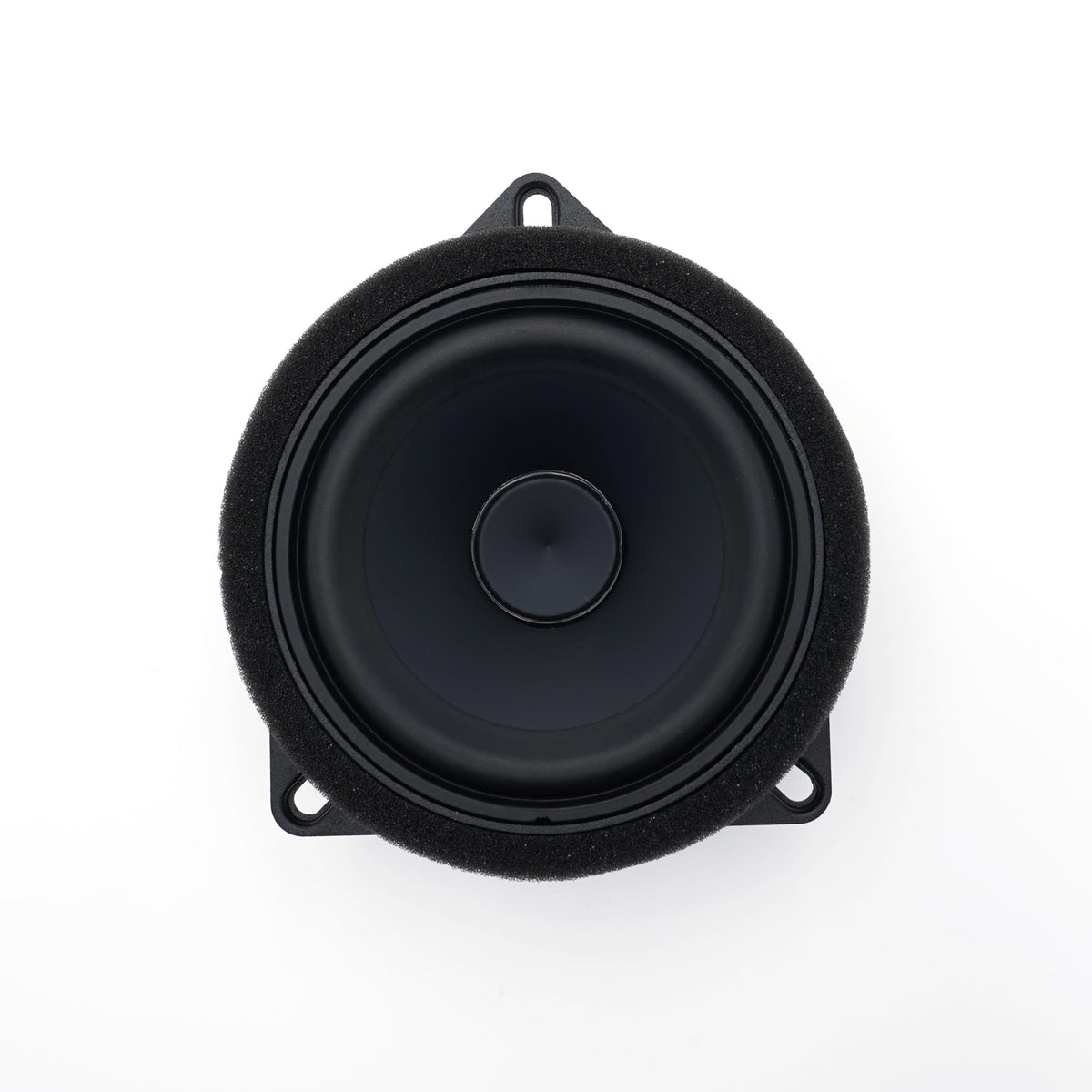

The 100 mm midrange uses a water-repellent pressed-paper cone for natural midrange reproduction. Its 90 Hz resonance frequency supports high-pass filtering in the 150-200 Hz range when used in an appropriately configured system. The published system frequency response is 90 Hz to 23 kHz.

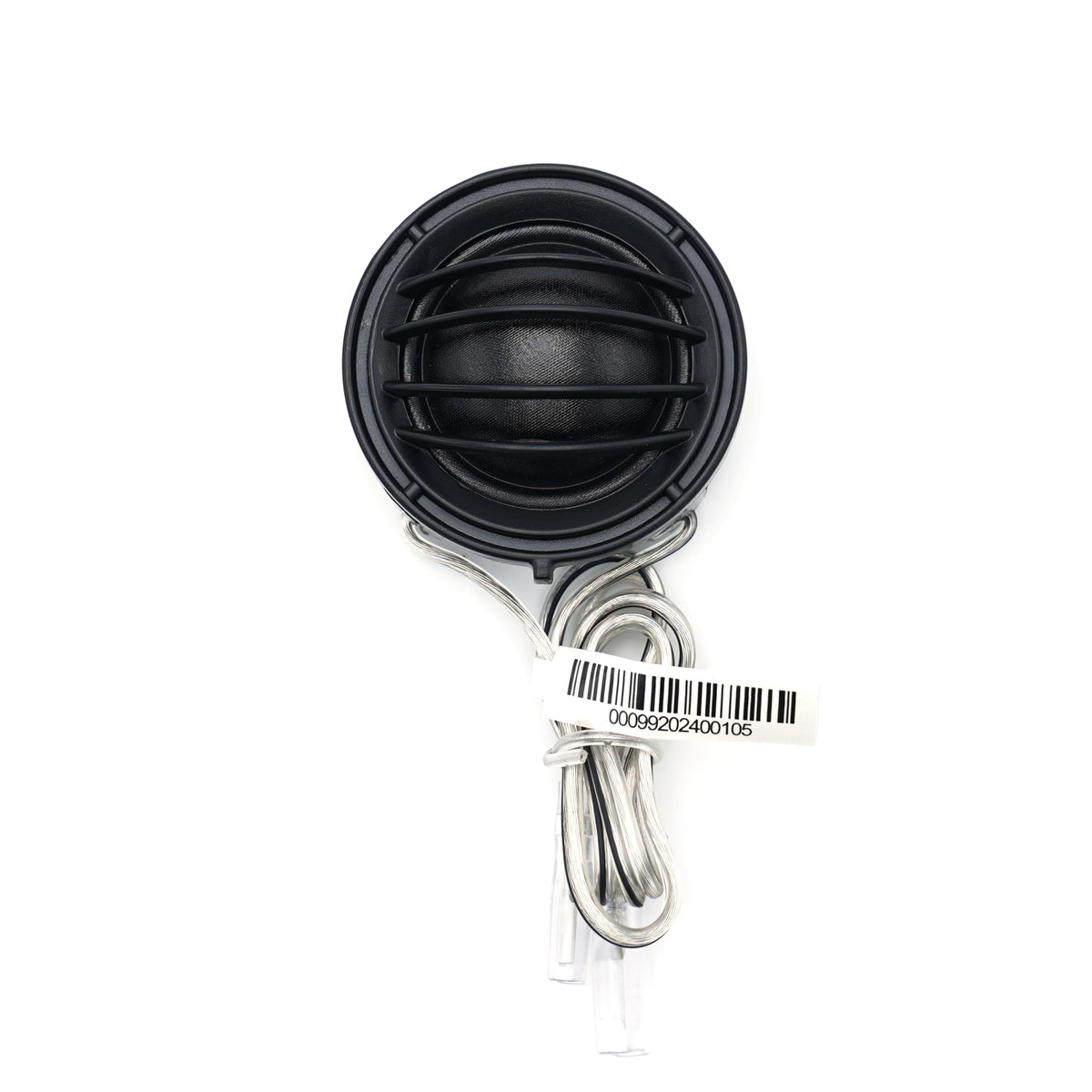

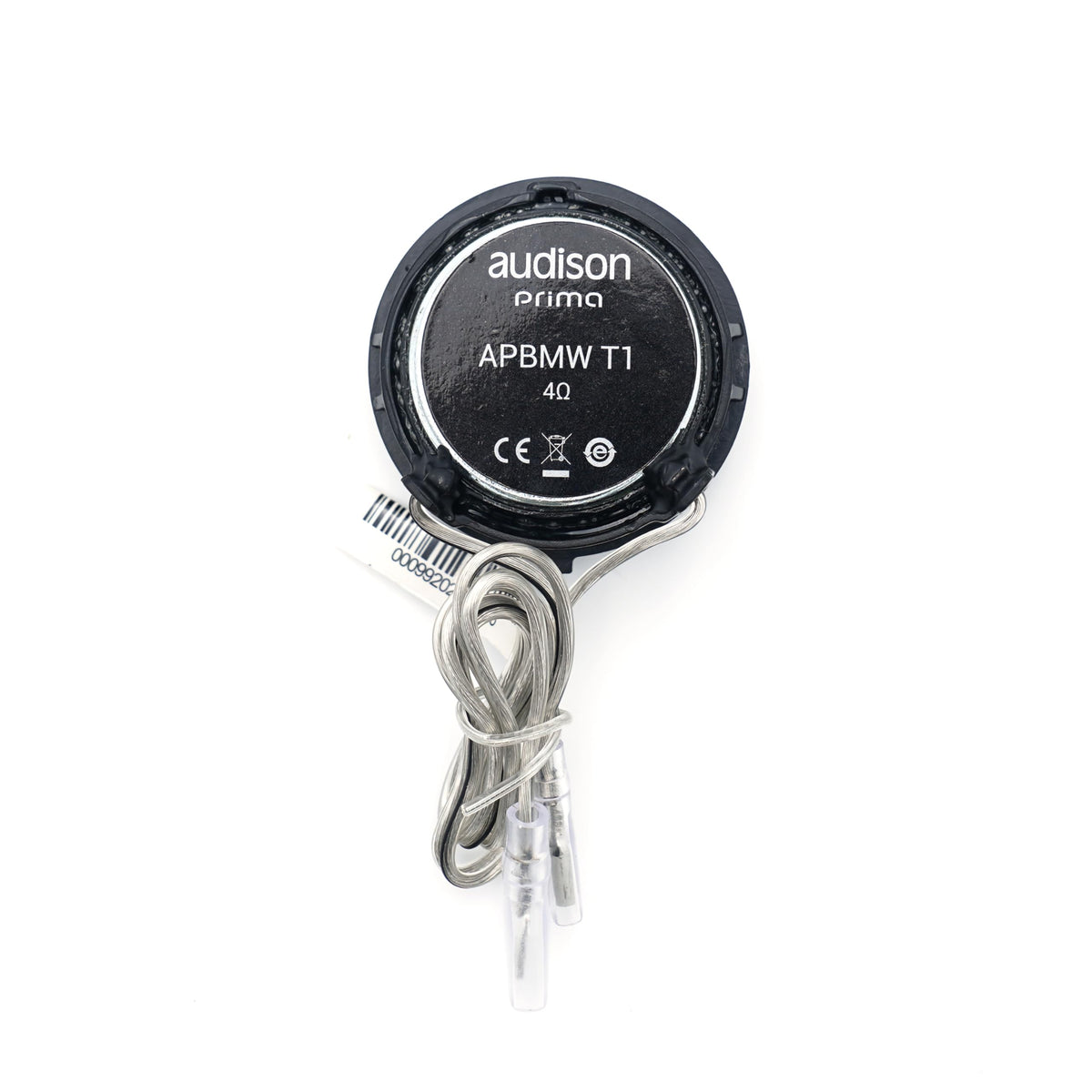

A 29 mm Tetolon tweeter handles the upper-frequency range and uses a 25 mm voice coil. Its off-axis dispersion characteristics were optimized using FEM simulations, helping suit OEM tweeter positions that are not directly aimed at the listener. The supplied crossover provides a 6 kHz high-pass section at 6 dB per octave.
With 50 W continuous and 100 W peak power handling at 4 ohms, the APBMW K4E can be used as part of a factory-speaker replacement or a more extensive BMW-MINI audio upgrade. Plug & Play connectors, a supplied tweeter support, and a 30 cm extension cable simplify integration with compatible factory locations. It can also be paired with compatible Audison BMW underseat subwoofer solutions when a broader system upgrade is planned.
Key Features
- BMW-MINI Two-Way Design: Built for select factory two-way BMW and MINI speaker systems.
- 100 mm Pressed-Paper Midrange: Water-repellent cone supports natural midrange character.
- 29 mm Tetolon Tweeter: Separate tweeter extends response through the high frequencies.
- Plug & Play Connections: Compatible connectors reduce the need for wiring modifications.
- 6 kHz Crossover: Dedicated high-pass crossover helps divide midrange and tweeter duties.
- Neodymium Motor System: Compact magnetic assembly helps minimize speaker bulk and weight.
Design & Installation

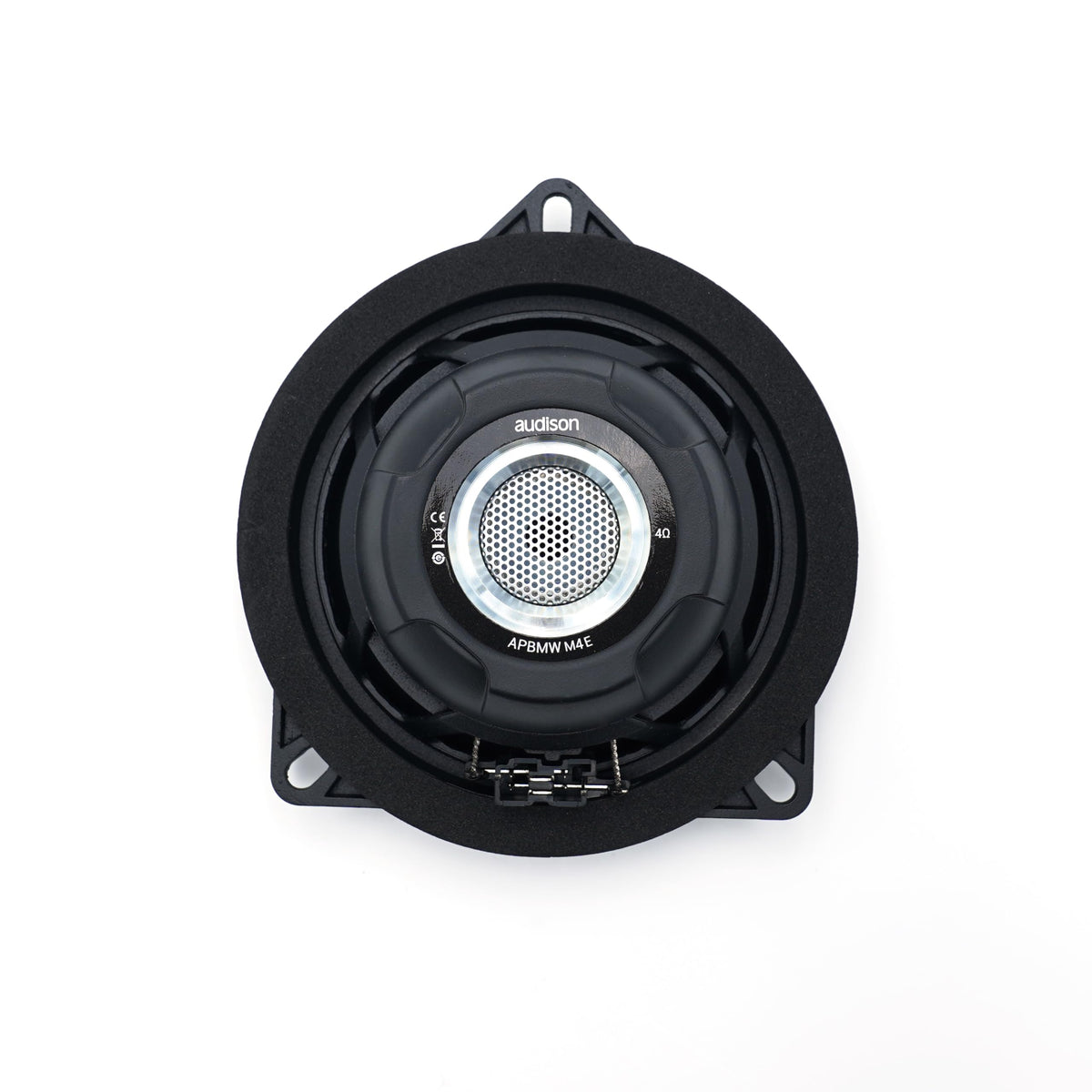

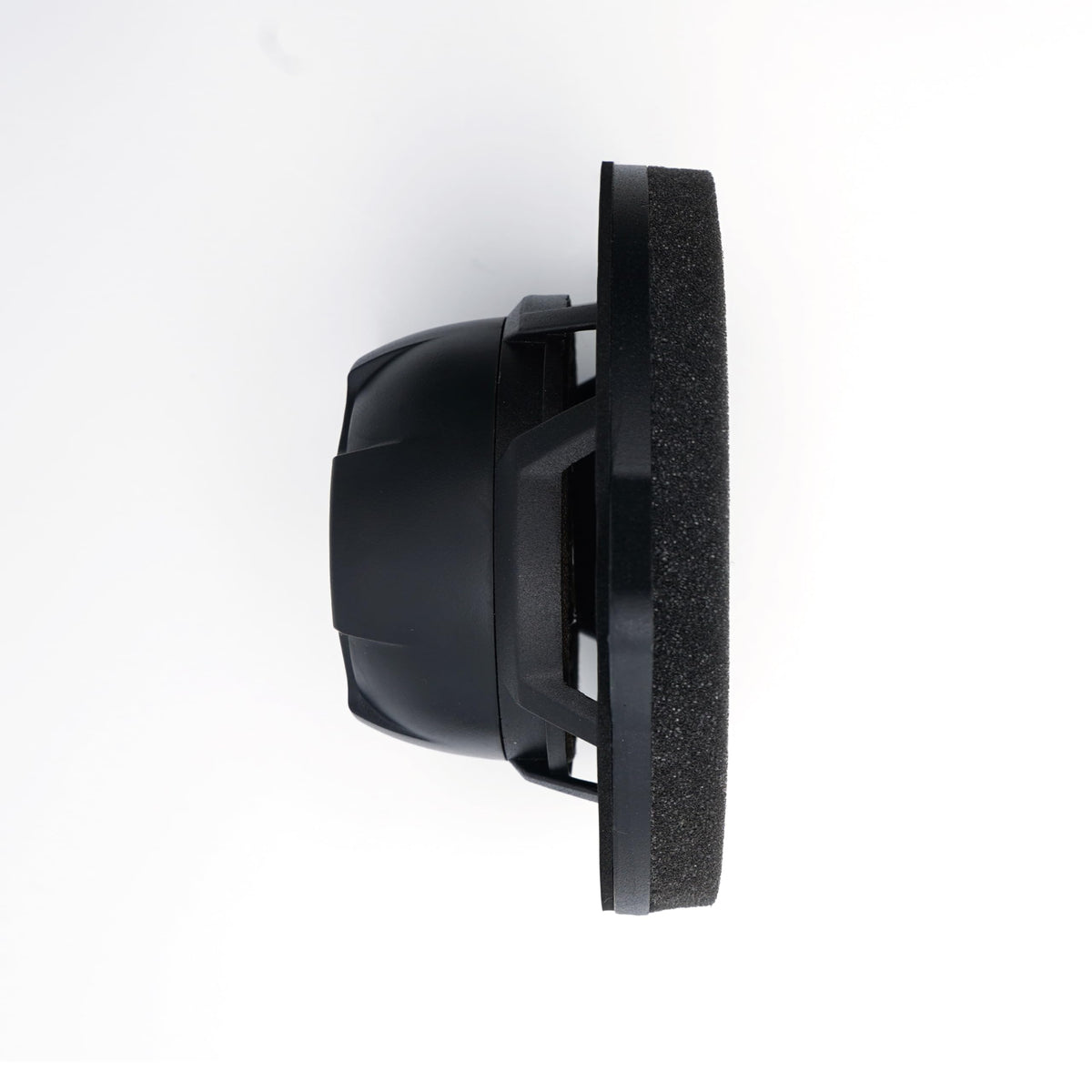

The APBMW K4E midrange uses an aluminum die-cast basket, neodymium magnetic group, 25 mm fiberglass voice coil, and removable damping motor cover. Its water-repellent pressed-paper cone is paired with a 29 mm Tetolon tweeter using a 25 mm voice coil. The crossover uses high-quality components and Plug & Play connections.
This kit is intended for select BMW-MINI vehicles equipped with factory two-way systems and compatible large-basket mounting locations. A tweeter support and 30 cm Plug & Play extension are supplied to assist installation in OEM placements. Confirm vehicle fitment, mounting configuration, and amplifier or factory-system compatibility before installation; some BMW models with non-standard fixings may require the separately available APBMW A4E adapter kit.
| Brand | Audison |
|---|---|
| Series | Prima |
| Model | APBMW K4E |
| SKU | APBMWK4E |
| UPC | 8018823124126 |
| Product Type | 2-way component speaker system |
| Vehicle Application | Select BMW-MINI vehicles |
| Factory System Application | Factory 2-way systems |
| Basket Configuration | LargeBasket |
| Midrange/Woofer Size | 100 mm (4 in) |
| Tweeter Size | 29 mm (1.14 in) |
| System Impedance | 4 ohms |
| Continuous Power Handling | 50 W |
| Peak Power Handling | 100 W |
| Frequency Response | 90 Hz to 23 kHz |
| System Sensitivity | 89 dB |
| Woofer Voice Coil Diameter | 25 mm (0.98 in) |
| Tweeter Voice Coil Diameter | 25 mm (0.98 in) |
| Woofer Voice Coil Material | Fiberglass |
| Woofer Cone Material | Water-repellent pressed paper |
| Tweeter Material | Tetolon |
| Magnet Type | Neodymium |
| Woofer Basket Material | Aluminum die-cast |
| Woofer Magnet Size | 50 x 29 x 3 mm (1.97 x 1.14 x 0.12 in) |
| Tweeter Magnet Size | 24.5 x 4 mm (0.96 x 0.16 in) |
| Crossover Type | High-pass |
| Crossover Frequency | 6 kHz |
| Crossover Slope | 6 dB/octave |
| Crossover Level Adjustment | -3 dB or 0 dB |
| Woofer Effective Cone Diameter | 80 mm |
| Woofer DC Resistance (Re) | 3.3 ohms |
| Tweeter DC Resistance (Re) | 3.7 ohms |
| Woofer Resonance Frequency (Fs) | 90 Hz |
| Tweeter Resonance Frequency (Fs) | 1.6 kHz |
| Woofer Moving Mass (Mms) | 6.3 g |
| Woofer Compliance (Cms) | 0.5 mm/N |
| Woofer Motor Force (BL) | 4.8 T·m |
| Woofer Total Q (Qts) | 0.48 |
| Woofer Electrical Q (Qes) | 0.51 |
| Woofer Mechanical Q (Qms) | 8.2 |
| Woofer Equivalent Volume (Vas) | 1.8 L |
| Woofer Voice Coil Inductance (Le) | 0.32 mH |
| Woofer Sensitivity | 88 dB |
| Tweeter Sensitivity | 90 dB |
| Woofer Maximum Linear Excursion (Xmax) | ±0.5 mm (0.02 in) |
| Woofer Weight | 0.46 kg (1.02 lb) |
| Tweeter Weight | 0.06 kg (0.13 lb) |
| Connector Type | BMW-MINI compatible Plug & Play |
| Tweeter Mounting Support | Included for OEM Plug & Play placements |
| Extension Cable | 30 cm with Plug & Play connectors |
| Motor Cover | Removable damping cover |
| Tweeter Dispersion Design | Optimized with FEM simulations |
This product uses a 4" speaker size. Pick your vehicle to see the factory locations it fits.
Select your year, make, and model above.
Vehicle not listed? Contact us and we’ll check the fit for you.
Will this fit my BMW or MINI?
The APBMW K4E is designed for select BMW-MINI vehicles with factory two-way systems and compatible large-basket speaker locations. Confirm your vehicle's speaker mounting and connector configuration before ordering.
Is this a complete two-way speaker set?
Yes. The kit consists of a 100 mm midrange, a 29 mm tweeter, and a dedicated crossover. It also includes a tweeter support and a 30 cm Plug & Play extension cable.
Do I need to cut the factory speaker wiring?
The midrange basket and crossover use BMW-MINI compatible Plug & Play connectors. Installation requirements can still vary by vehicle, so verify connector and mounting compatibility first.
What amplifier power is appropriate for this kit?
The published continuous power handling is 50 W, with 100 W peak power handling, at 4 ohms. Match amplifier output and crossover settings carefully to the speaker rating and system configuration.
Does this kit provide deep bass?
Its published frequency response is 90 Hz to 23 kHz, and the 100 mm driver is intended for midrange and mid-low reproduction. For lower-frequency reinforcement, a separate compatible underseat subwoofer or subwoofer system may be used.
What if my BMW has non-standard speaker fixings?
Audison lists the APBMW A4E as an accessory for BMW models equipped with non-standard midrange or coaxial fixings. That adapter is separate from the APBMW K4E kit.
